Wireless Connection (Only for WMB series)

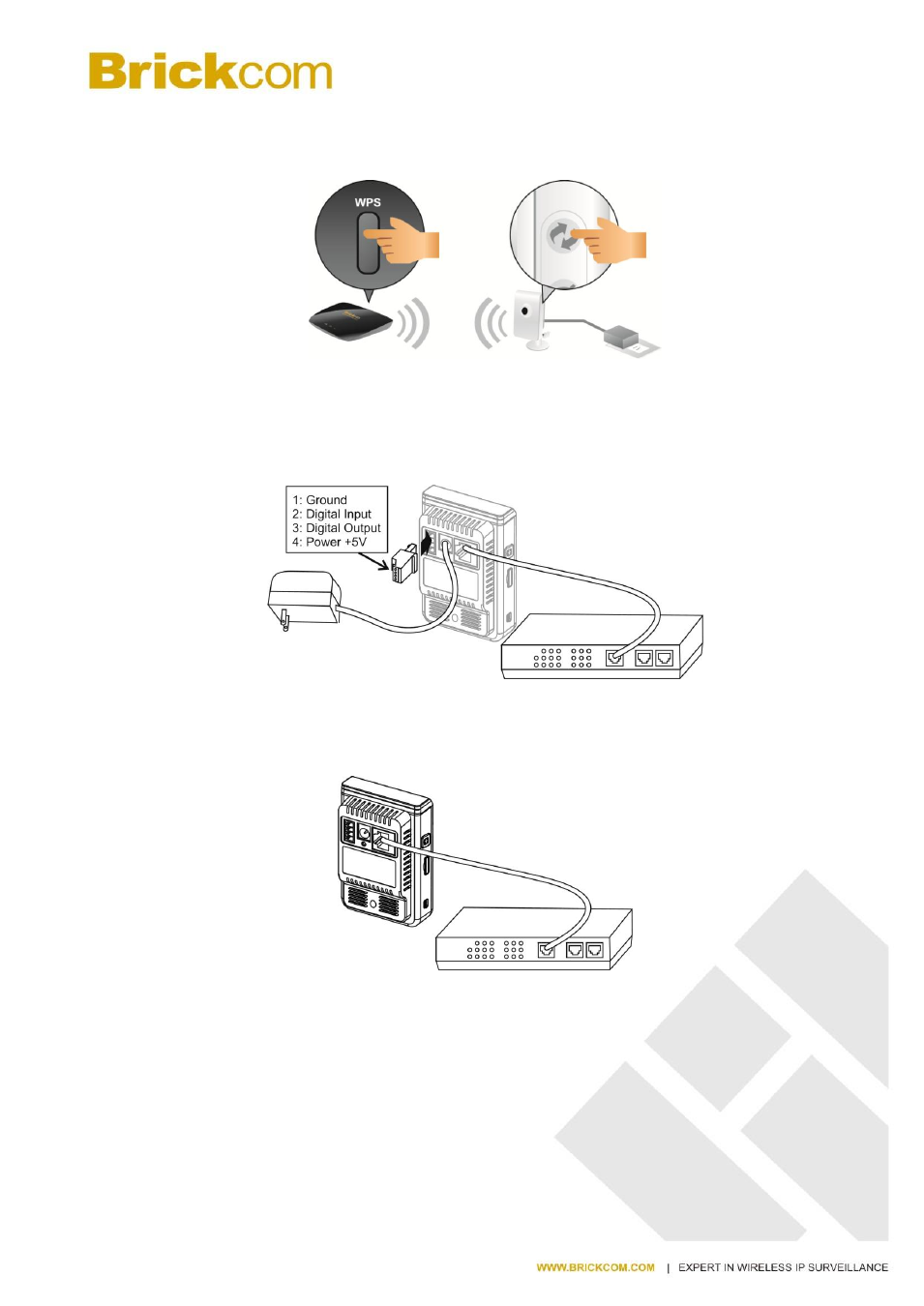

Connect the supplied power cable from the camera to a power outlet. And press WPS
button both on the camera and the wireless router (DWRT-600N).
Terminal I/O Connector Block Connection
Attach the supplied connector block to the terminal connector on the camera. Refer to the
diagram below to attach external devices to the connector block.
Power over Ethernet (PoE) Connection (Only for MB series)
The camera can be powered by a PoE-enabled switch. Connect the camera to the switch
via Ethernet cable.
