Borg Locks BL 2900 Series - Manual (Page 2)

2
Please check that all parts are working correctly. Enter the factory preset code as on the code card (part no.14), ro-
tate the turn on the keypad one turn clockwise, re-enter the code and turn the knob anti-clockwise ensuring that the
follower on the back of the keypad rotates each time. The knob should return easily under its spring pressure. If you
intend to change the code please refer to ‘how to change your code number’ instructions (page no.7) prior to fitting.
Make sure that the Inside handle device rotates freely and returns under its spring pressure.
Check that the latch bolt on the tubular latch (part no. 4) moves freely by pressing the bolt head at the end, and
also turning the spindle (part no. 9 or 10) in the hour glassed shaped follower on the locking device.

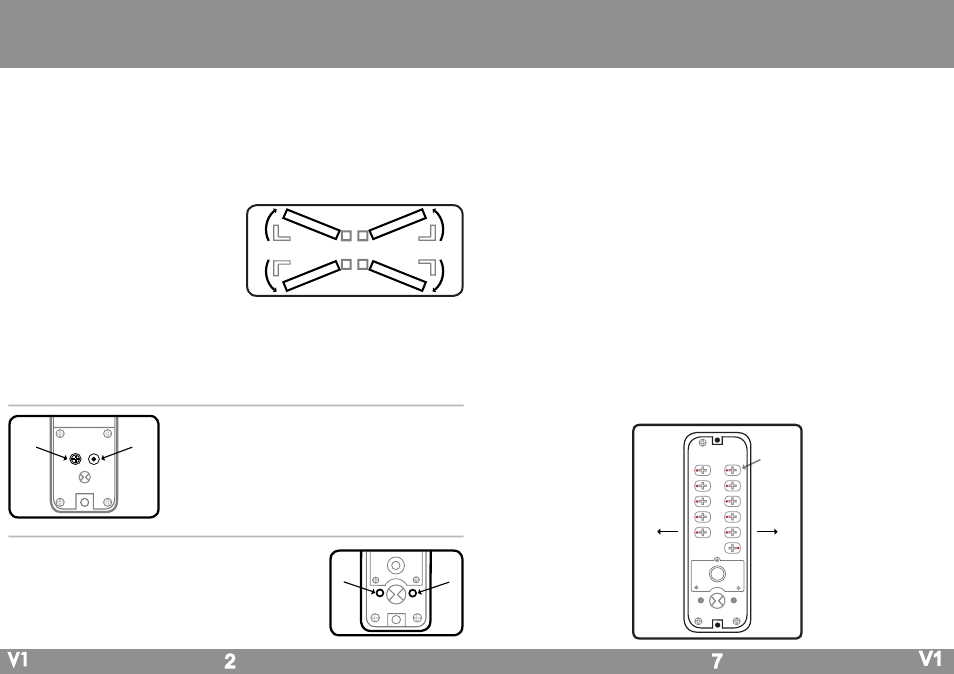

Determining the hand of the door
Many of the installation instructions refer to the handing
of the door. The hand of the door is determined with the
door in its closed position from the exterior or keypad
side of the door.
A) Right hand door – door opens inward (push), hinged
on the right side.
B) Left hand door – door opens inward (push), hinged
on the left side.
C) Right hand inward opening – door opens outward
(pull), hinged on the right side.
D) Left hand inward opening – door opens outward
(pull), hinged on the left side
Inside
Outside
A B
C D
V1
Preparation
Fitting the Latch Support Post
Fit the latch support post (part no.7) in hole A for a right hand hung door or
B for a left hand hung door. Please refer to the ‘determining the hand of the
door’ if you are unsure what hand of door you have.
How To Change Your Code Number
Changing the Handing of the Unit
If the unit is being fitted to a right hand hung door as per the ‘determining
the hand of the door’ nothing will need to be changed on the unit.
If the unit is being fitted to a left hand hung door the only part that will
need to be changed would be the blue handing screw on the back of the
inside handle from point A to point B as per the diagram.
A B
V1
1. Remove the lock from the door, which is done by removing the two screws at the very top and bottom of the
inside handle.
2. Turn the keypad over so that you are able to see the code change dials on the reverse (as shown in the dia-
gram).
3. Press the ‘C’ button to ensure that no digits have been pressed.
4. Using a Phillips screwdriver press and turn all of the code change dials outwards so that all of the red markers on
all of the code change dials are facing outwards.
5. To ensure that no digits have been entered, press the ‘C’ button and turn the knob on the keypad.
If the knob does not turn freely without having to enter any code, turn the keypad over and check that all of
the red markers on the code change dials are facing outwards.
6. To set a button as a coded digit the code change dial will need to be pressed and rotated using a Phillips screw-
driver so that the red marker is facing towards the number or letter down the centre of the lock.
As you will see in the diagram below it has been coded to 1, 2, 3, 4, 5 as all of the red markers on the code
change dials are facing towards the numbers down the centre of the keypad and the remaining non coded
digits are facing outwards.
7. Ensure that all the remaining digits that are not in the code are facing outwards. As you will see from the diagram
below the digits that are not in the code 6, 7, 8, 9, 0 and Y have the red marker facing outwards and all of the coded
digits red markers are facing inwards towards the number down the centre of the keypad.
Please note that the code is not sequential and if for instance the unit was coded to 1, 2, 3, 4, 5 the code
can be entered 5, 4, 3, 2, 1 or any sequence as long as all of the digits in the code have been pressed. It is
recommended that the ‘C’ button is pressed before each use to clear the coding chamber of any buttons
that may have been pressed.
8. With the lock coded and a note made of the new code; enter the code and rotate the knob 3 - 4 times to check
that the unit has been recoded successfully before refitting it to the door. Once fitted to the door check the code
once more before closing.
7
A B
6
7
8
9
0
C
1
2
3
4
5
Y
Outwards Outwards
Code
Change Dial
