maIntenanCe

22

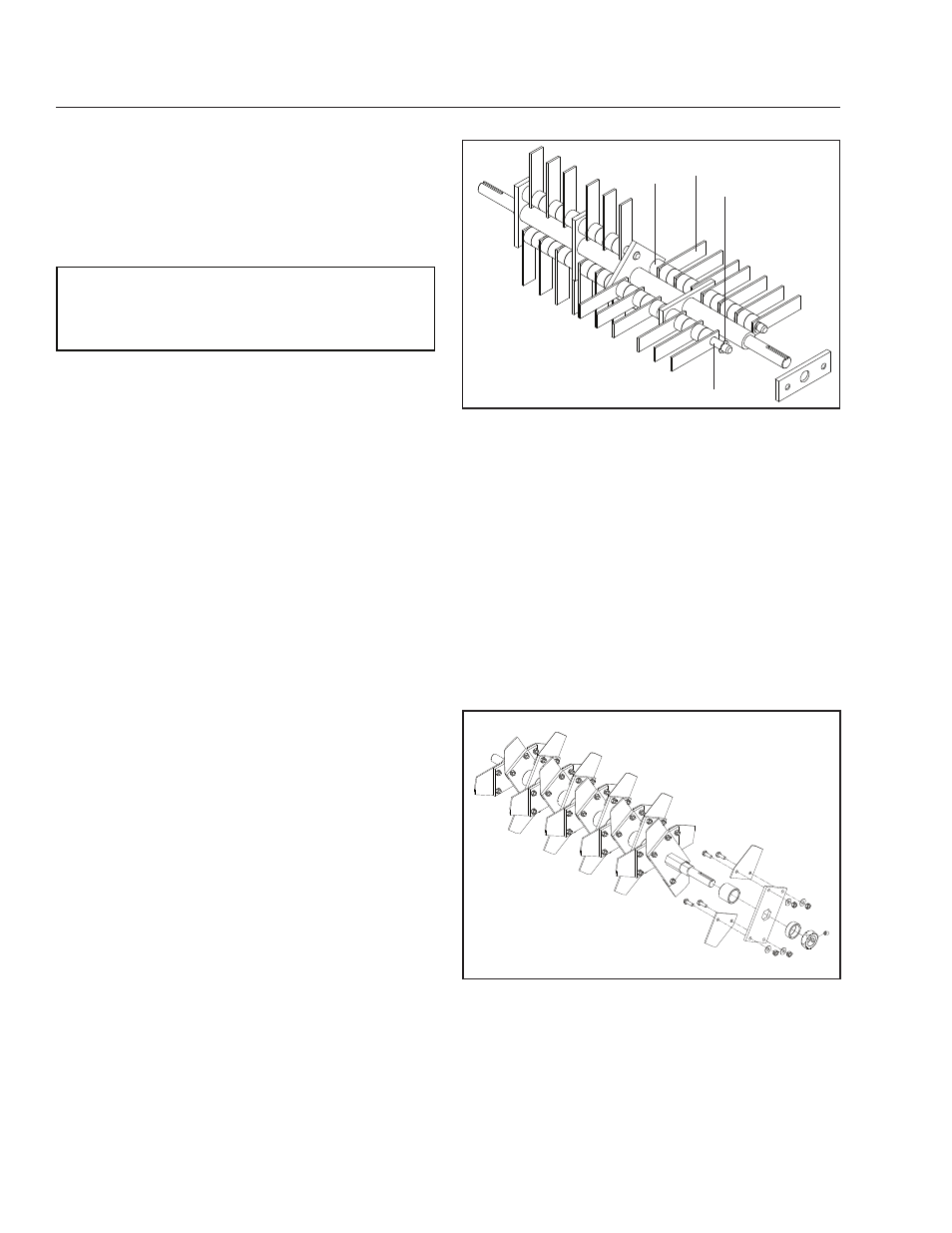

Replacing worn flail blades

Allow the engine to cool.

1.

Disconnect the spark plug.

2.

Tip the machine forward; see

3.

Two Minute Rule in

this section.

Remove e-rings (locking washer type) that hold

4.

the blade shaft (2) in place (see the illustration).
Inspect the blade shafts and replace if bent or

5.

worn.
Drive the blade shafts out towards the center. The

6.

blades and the plastic spacers will fall off.
Fit the new blades and replace the plastic

7.

spacers as necessary. Refer to the illustration of
the components for blade/spacer placement.
Install e-rings.

8.

Repeat this procedure for the remaining three

9.

shafts.
Reattach the spark plug cable.

10.

IMPORTANT INFORMATION
When tipping the machine forward observe
the “Two minute rule”.

8061-110

E-ring

1.

Blade shaft

2.

Blades

3.

Spacers

4.
Flail blade

3

1

2

4

Delta Blades

Wear/Replacing

Over time and due to wear, the blades will diminish in
length. Once the blades have worn down by about ¾"
(19 mm), the overall length of the blade at the longest
point of the blade will be about 2½" (64 mm), and it will
be necessary to replace the blades.
It is possible to replace delta blades without removing
the rotor shaft. Remove the delta blade by removing
the two screws with nuts holding the blade in place.
Turn the new blade until it is properly aligned; see
illustration.

8061-110

Delta blade
