Reliability test, Piezo ceramic element – BeStar FT-27T-4.0B1 User Manual
Page 5
+85℃
5.1 Life test at high temperature
Temperature +85
°C
Duration 240hrs
5.2 Life test at low temperature
Temperature -40
°C
Duration 240hrs
5.3 Temperature cycle test
Cycles 5
5.4 Humidity cycle test
Cycles 5
FT-27T-4.0B1
DRG NO: BS/TEY01.343A
Piezo Ceramic Element
Rev.
A
B
10/05/18
Date:
Drawn by:
Approved by:
Checked by:
Drawn
Date
Note
5
6
4
3
2
赵 峥
李红元
邱 俊
1
Page:05 of 07
A
B
All these tests above should be measured after leaving normal temperature for 2hrs.
T
h
is
p
ri
n
t
a
n
d
i
n
fo
rm
a
tio
n
t
he
re
i
n
a
re
p
ro
p
ri
e
ta
ry
t
o
B
e
s
ta
r
E
le
c
tr
o
n
ics
I
ndu
s
tr
y
C
o
.,
L
td.
a
nd
s
h
a
ll
no
t
b
e
u
s
ed
i
n
w
h
o
le
o
r
in
pa
rt
w
ith
ou
t
it
s
w
ri
tt
en
c
on
tent
5.5 Vibration Test
Vibration Frequency 10~55Hz
Amplitude 1.53mm
Direction 3(x.y&z)
Duration 2hrs each direction (total 6 hrs)
5.6 Drop test
Height 100cm
(to 10mm thickness woodenboard)
Direction 3(x.y&z)
5.7 Solderability Test
Soldering Temperature 255
C
Duration 3 sec
Notice: All specifications must be satisfied in this condition.
C
D
E
F

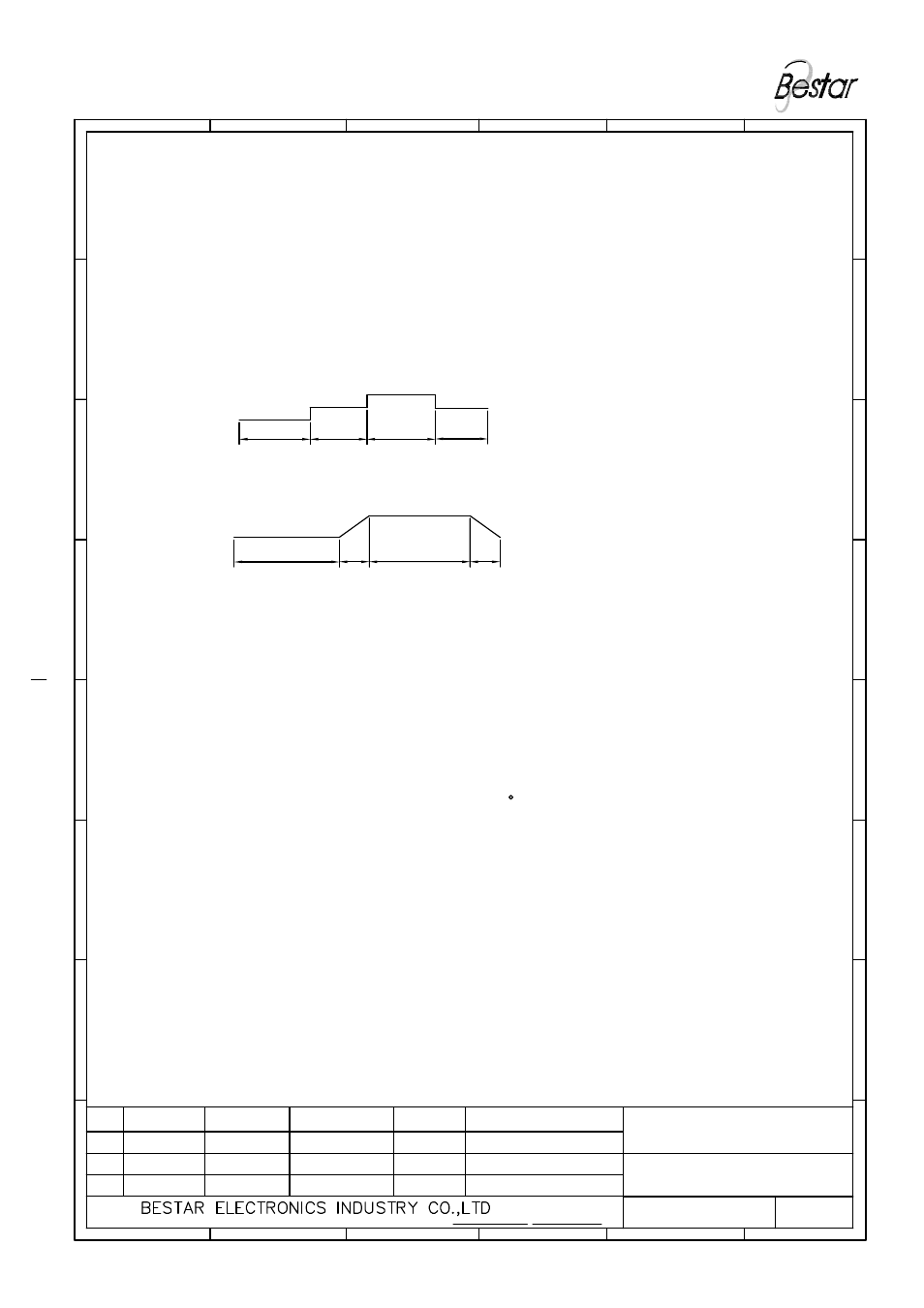

12h
