Reliability test, Transducer – BeStar SMT5555-03H2.5LF User Manual
Page 4
3.1 high temperature test
Temperature +85
°C
Duration 240hrs
3.2 low temperature test
Temperature -40
°C
Duration 240hrs
3.3 life test in high temperature
Temperature +85
°C
Power supply 3.0Vo-p square wave 1/2 duty 3.1KHz
Duration 1000hrs
3.4 Temperature Cycles test 32
3.5 Humidity cycle test
Cycles 10
+85 C
30min
30min
-40
°C
3.Reliability Test
+25 C 90-95%RH
1h
12h
1h
+70 C 90-95%RH
3.6 Vibration
Frequency 10 ～200～10Hz
Amplitude 1.5mm
Direction X,Y&Z
Duration 2hrs each, total 6hrs
3.7 Fixed drop
Drop hight 152mm
Duration every 6 surface 5 times(total 30 times)
3.8 Drop test
Drop hight 100cm
Duration 6 every surface 1 time

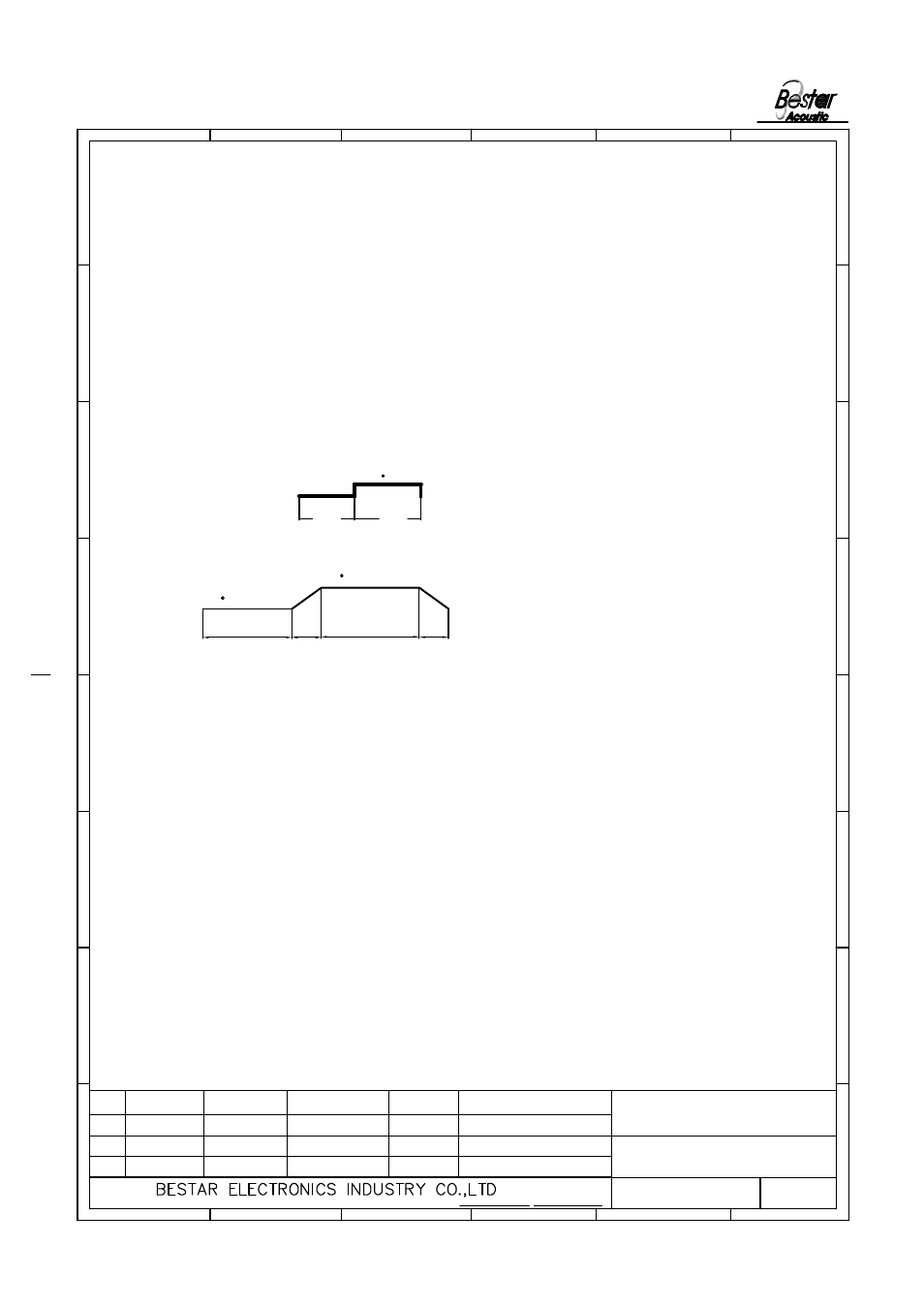

3.9 Solderability
Solder temp. 255
±5°C
Soaking time 2
±0.5sec
1
2
3
H
G
F
E
D
C
B
2
1
3
Page:3 of 7
A
Transducer
4
5
6
H
G
F
E
D
C
Drawn by:
Date:
B
Note
