Rear Panel
High Current Switching DC Power Supplies
Models 1693 & 1694
Conveniently placed on the front panel for
quick use, this auxiliary terminal is connected
in parallel with the main output terminal and
provides an additional output for your
application.
Auxiliary Output Terminal

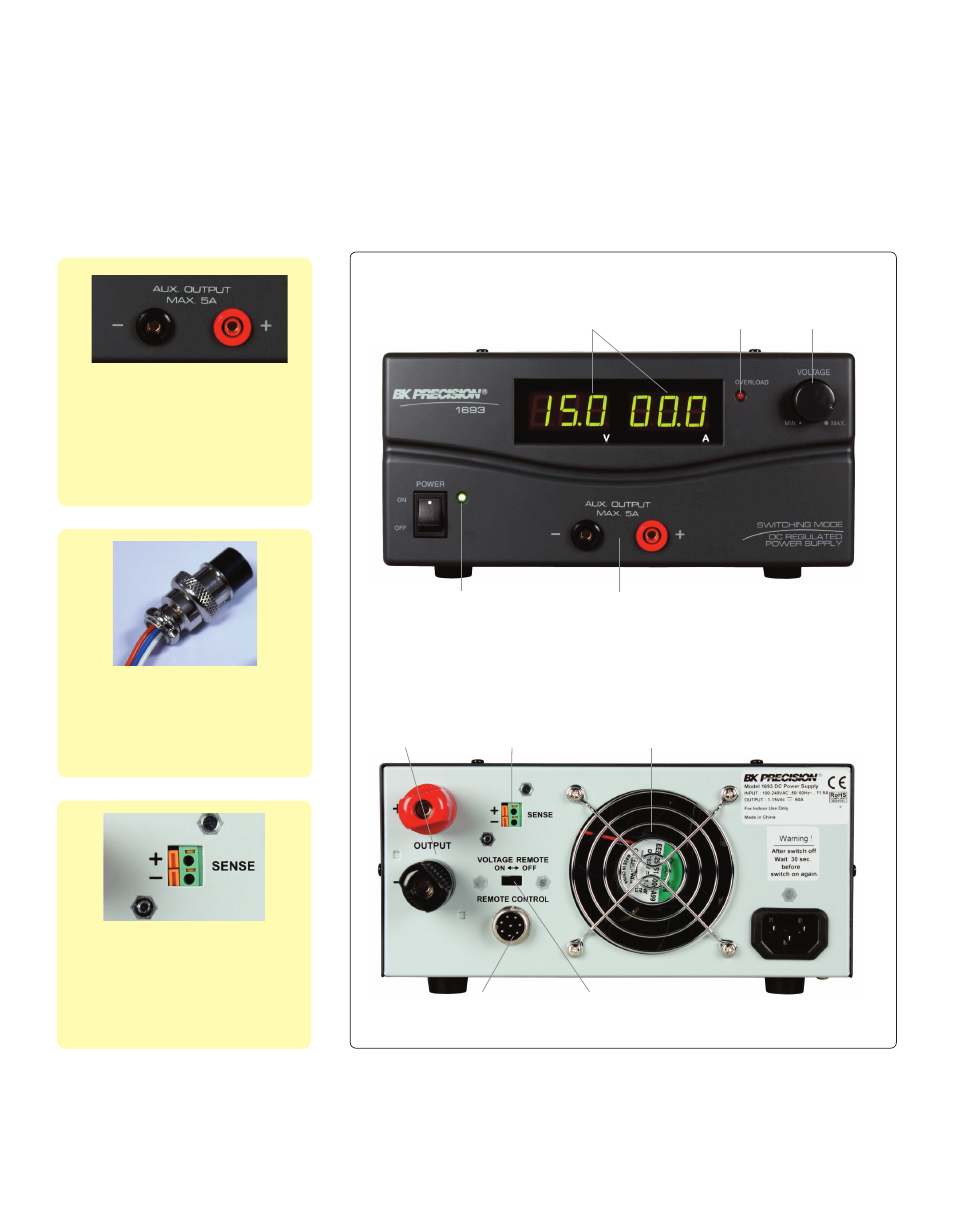

Easy Operation Valuable Features
Overload LED
indicator Output voltage
control knob
Bright, dual LED displays
Power ON LED
Main output
terminal Remote sense
terminal
Analog remote
control terminal
Cooling fan
Analog Remote Control Capability
Use the included connector to wire up to an
external variable DC voltage source or variable
resistor to remotely control the power supply's
output voltage or to turn the output on/off.
Remote Sense
Improve regulation of the power supply’s
output voltage at the load by using the
remote sense terminals to compensate for
voltage drops across the load leads.
Analog remote control
ON/OFF switch
Auxiliary output terminal
