Multi-Range Programmable DC Power Supplies
9115 Series
2
Front panel
Rear panel

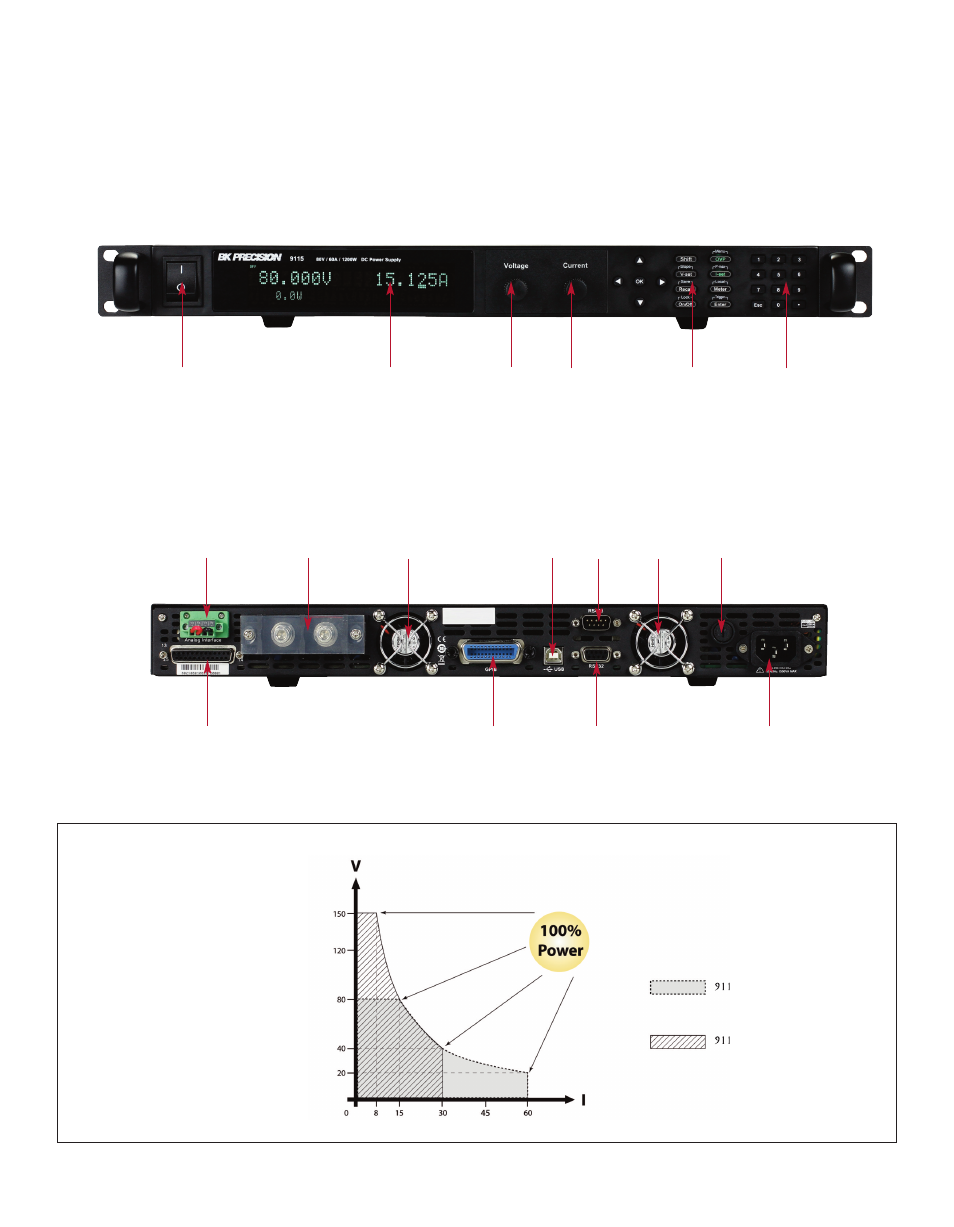

Function keys Numeric keypad Power On/Off switch Bright VFD display Voltage and current adjust knobs
Analog control interface GPIB interface RS-232 interface AC line input
Remote sense
terminal
Output
terminal Cooling fan
USB
interface
RS-485
interface
Cooling
fan Fuse
Multi-Range Operation
The multi-ranging feature of the 9115 Series
offers exceptional flexibility by providing any
combination of the rated voltage and current up
to the maximum output power of the supply.
These wide ranges of voltage and current allow
users to replace multiple supplies on a bench or
system rack.
9115 & 9115-AT (80 V/60 A)
9116 (150 V/30 A)
