Operating Instructions for Insertion &
Removing Battery

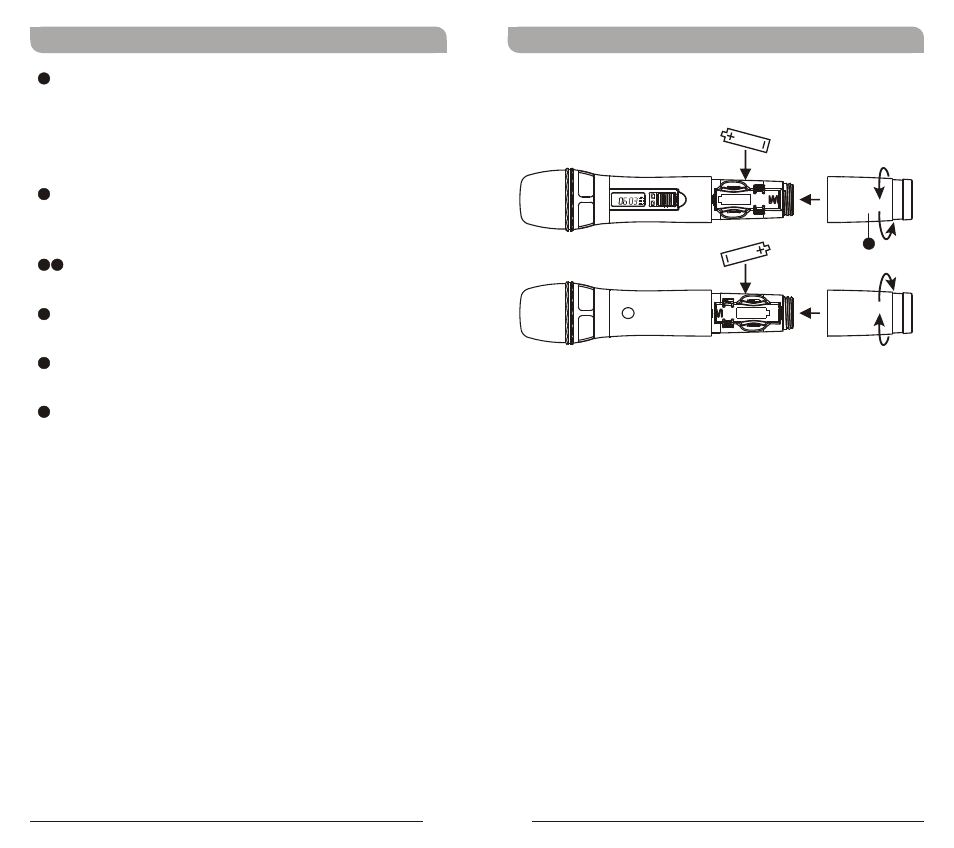

(Figure 2)
1. Gently twist the microphone housing in a
counter-clockwise direction
2. Remove the old batteries from the battery
compartment, if any are installed.
3. Insert two new AA alkaline batteries in the
battery compartment with correct polarity
orientation.
Handheld Transmitter Handheld Transmitter
4 5
Lockable On/Off Switch: Slide the switch to
the “ON” position after power-on to avoid
accidental power off during performance. Slide
the switch to “OFF” position before power-off
and conserve battery power.
Housing: Upper portion connects to the
microphone capsule module. Internally it holds
the transmitter PCB and battery compartment.
Battery Compartment: Accommodates 2 AA
alkaline.
Battery Compartment Cover: Protects
battery compartment and holds batteries.
Color-Coded Ring: Available in different colors
for channel differentiation.
ACT Infrared (IR) Port: Receives signals from
receiver to synchronize frequencies.
6
5
7 11
8
9
10
8
GROUP CHANNEL BAT
