Avlex ACT-30Hr Handheld Transmitter Microphone - Manual (Page 3)

Top Grille: Protects detachable microphone
capsule module and internal foam prevents
breathing, wind and POP noises.
LCD Screen: Displays group, channel, battery
status and error codes.
Remote Volume Control Buttons: Press to
decrease or to increase volume loudness
wirelessly.
Power On/Off Switch: Slide the power switch
to the “ON” position for use or to the “OFF”
position when not in use.
Handheld Controls and Indicators
1
2
3
4
Handheld Transmitter Handheld Transmitter
2 3
Key Features
! The microphone capsule is connected to the transmitter
PCB and then screwed onto the housing to prevent the
potential malfunction caused by improper contact.
! Modularized PCB and microphone capsule can be easily
detached and assembled. Optional premium microphone
capsule modules are available.
! ACT-30H is constructed of sturdy plastic housing to
enhance the transmission efficiency. Special coated
treatment prevents from handling noise and paint
stripping.
! ACT-30Hr is equipped with remote-control volume buttons.
! Proprietary lockable on/off switch to avoid accidental
power off.
! Durable construction of integrated housing and battery
compartment, allowing 2 AA type batteries easily to be
inserted and replaced.
! Battery housing design secures the battery installation to
prevent the malfunction when knocked. Multi-color rings
for easy channel identification.
! LCD on the housing displays working group, channel,
battery level and error codes.
! High-efficiency low spurious emissions UHF PLL
synthesized RF technology.
! An interference-free working channel can be synchronized
quickly and precisely by MIPRO's proprietary ACT function.
! MIPRO vocal condenser microphone capsule exhibits high
fidelity, wide dynamic range, fast transient responses, low
feedback howling, accurate sound image characteristics,
transparent sound quality and extremely low handling
noise.
! Proprietary high dynamic range modulation circuitry
sustains a maximum SPL of 140dB so performers can be
confident it won't distort when sing loudly.
! Optional MU-89b true condenser microphone capsule is
ideal for natural sound reproduction.
! Built-in volume buttons in ACT-30Hr handheld transmitter
enable volume loudness can be adjusted wirelessly for
MIPRO MA-708 & MA-808 portable PA systems.
(Figure 1)

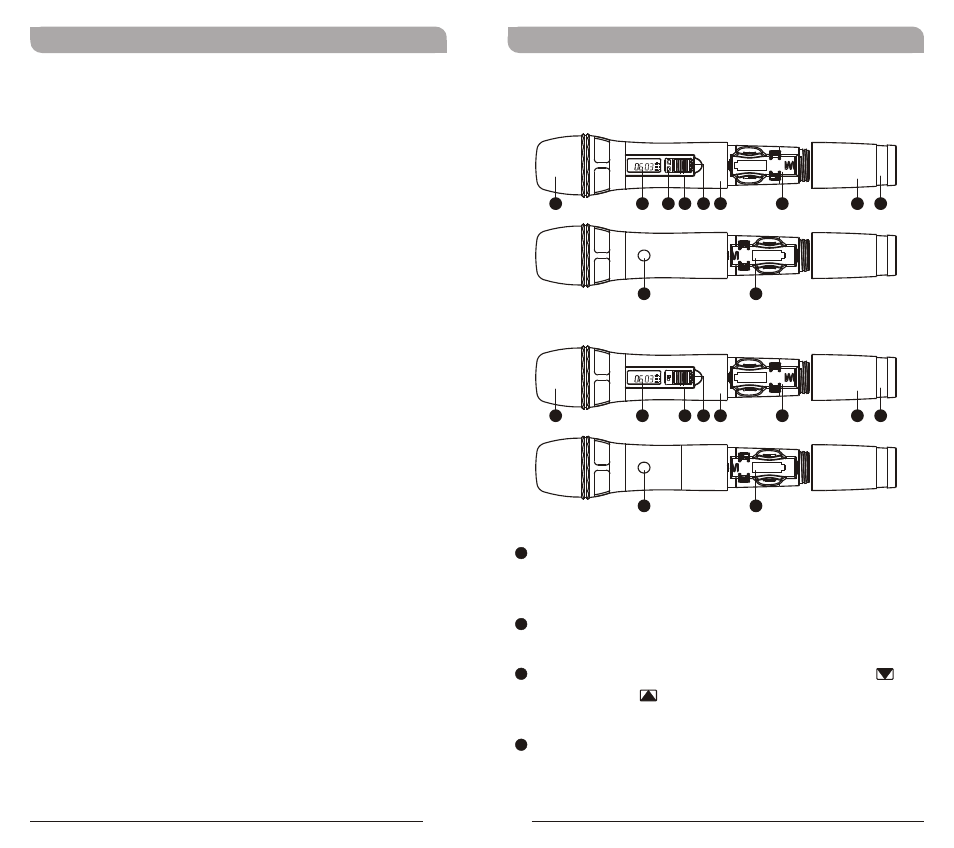

ACT-30Hr
ACT-30H
GROUP CHANNEL BAT
2 3 4 5 6 7 8 9 1
10 11
2 4 5 6 7 8 9 1
GROUP CHANNEL BAT
10 11
