User’s Manual
8.3
Replacing the ADF detachable pad module
After scanning approximately 30,000 pages through the ADF,
the pad spring may be worn out and you may experience
problems with document feeding. In this case, it is highly
recommended to replace the pad module with a new one. For
ordering the pad module, please consult your nearest dealer
and follow the procedure in below to replace it.
Removing Procedure
1.
Open the ADF front cover.
2.

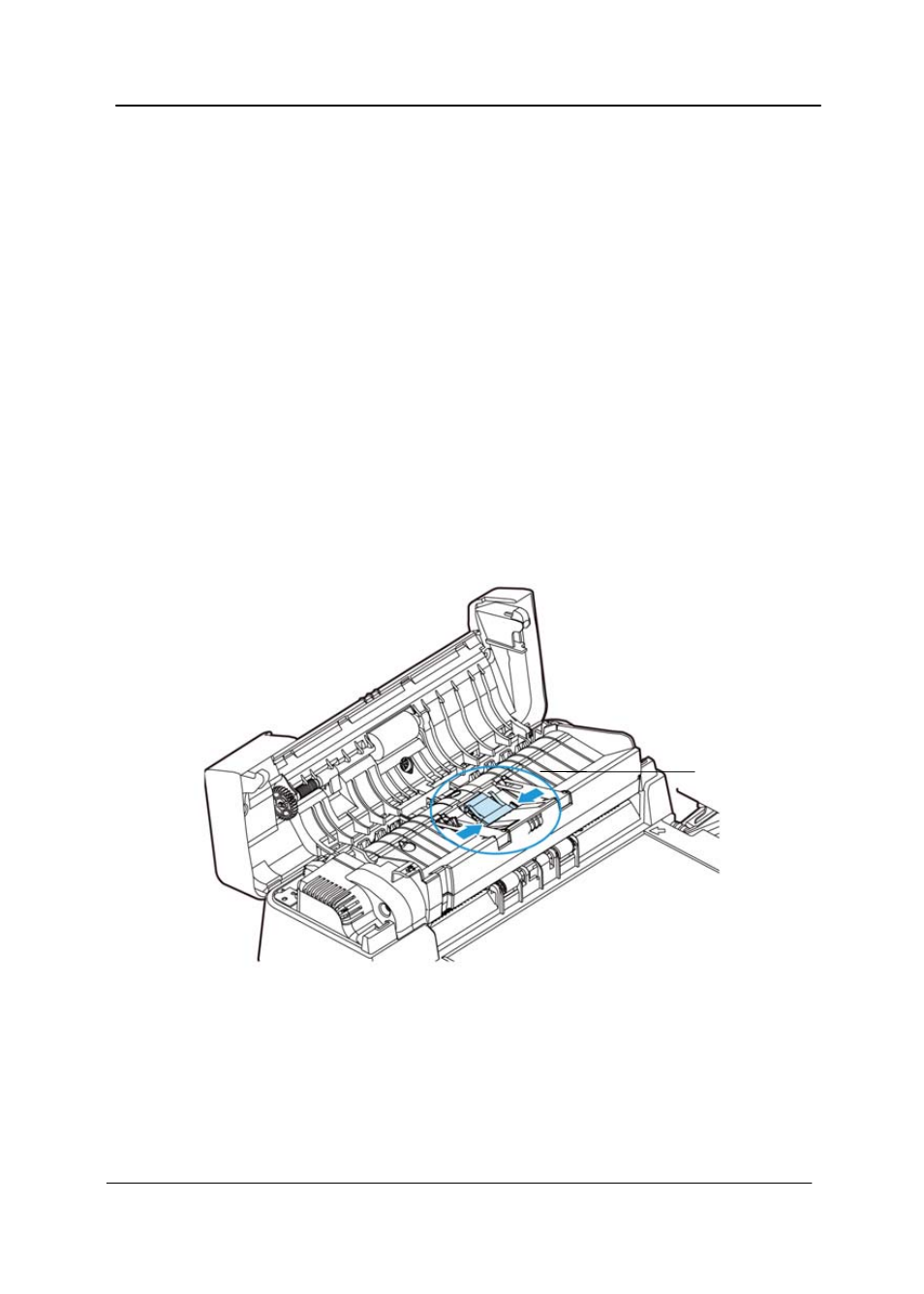

Remove the ADF detachable pad module by pulling out
the upper part of the pad clamp as shown in the figure
below.
ADF Pad
8-5
