6.3 Replacing the ADF snap-in pad module
After scanning approximately 20,000 pages through the
ADF, the separation pad may be worn out and you may
experience problems with document feeding. In this case, it
is highly recommended to replace the pad module with a
new one. For ordering the pad module, please consult your
nearest dealer and follow the procedure below to replace it.
Disassembling Procedure
1.
Open the ADF cover.
2.
Remove the ADF snap-in pad module by pulling out
the upper part of the pad clamp as shown in Figure 6-
3.

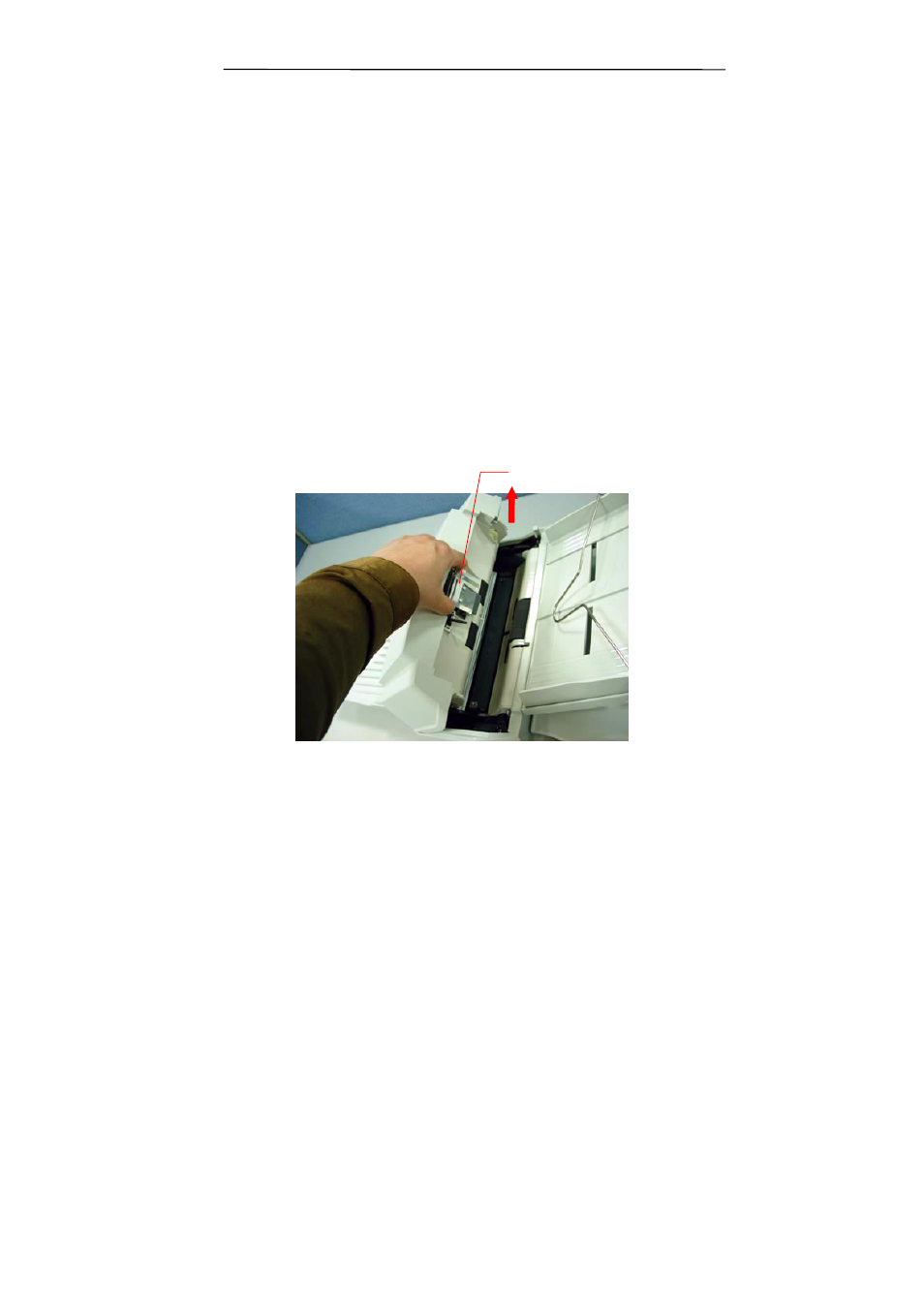

Figure 6-3 Remove the ADF Pad
A. ADF Pad
