Associated Equipment 6019 - Manual (Page 5)

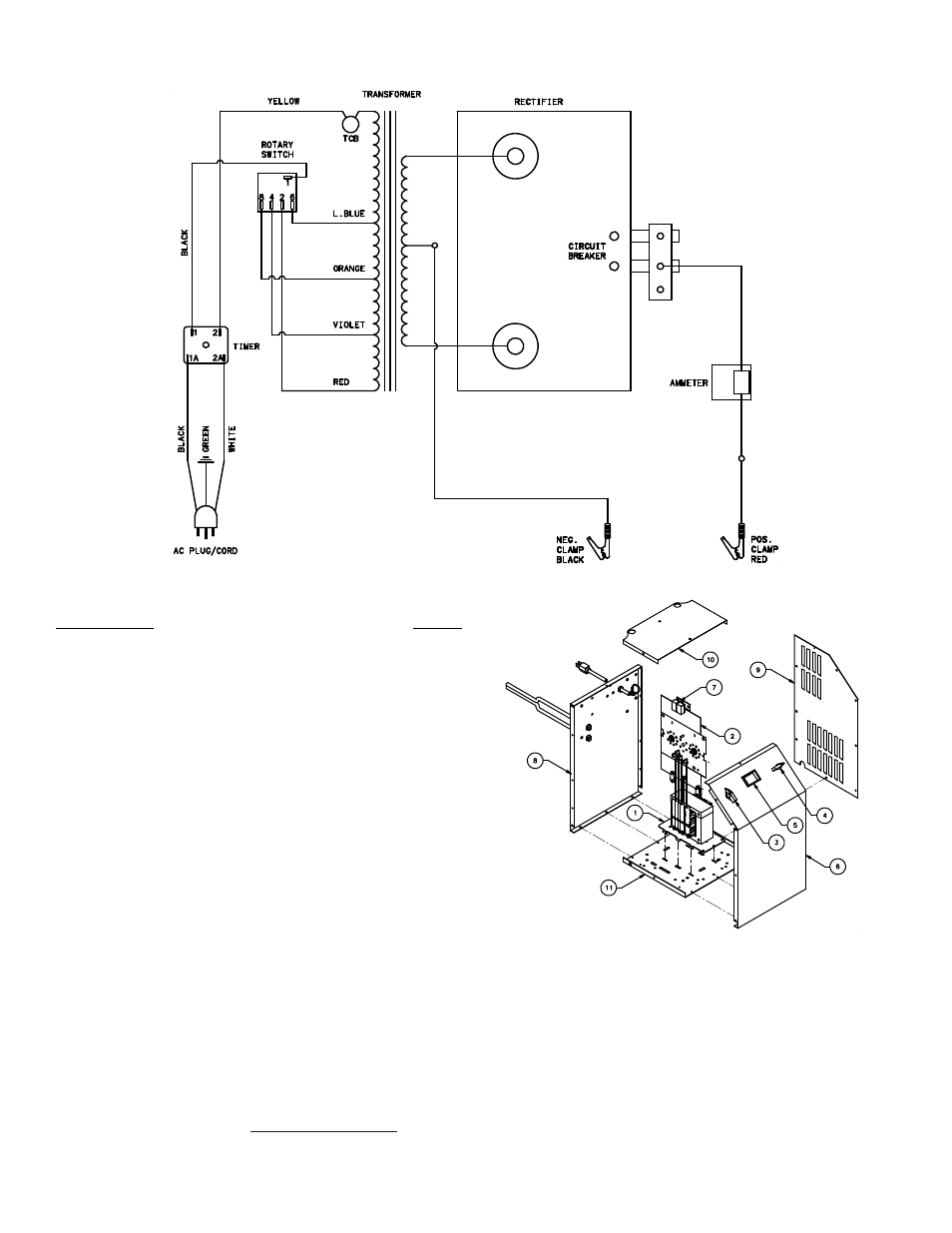

WIRING DIAGRAM
MODEL 6019 REPAIR PARTS LIST
Item Description
5
Part no.
1. Transformer.................................................................611102
2. Rectifier .......................................................................611097
3. Charge
Rate Switch ....................................................611187
4. Timer w/knob...............................................................610895
5. Ammeter......................................................................610695
6. Front panel ..................................................................611100
7. DC circuit breaker (1) ..................................................611028
8. Back
panel ..................................................................610977
9. Right panel ..................................................................611032
10. Top panel ....................................................................611011
11. Base panel ..................................................................610054
Parts not shown
AC power cord.............................................................610696
DC cable set................................................................610824
Front Leg.....................................................................610825
Axle w/nuts ..................................................................610052
Wheel w/nuts (2) .........................................................605672
Handle.........................................................................610753
Left
panel ....................................................................611031
MAINTENANCE INSTRUCTIONS
Worn clamps should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of
DC Cable Set. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified
serviceman. Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.
ASSOCIATED EQUIPMENT
5043 Farlin Ave.
St. Louis MO 63115
ATTN: SERVICE REPAIR
For local service in your area go to
www.associatedequip.com and click on Repair Centers.
