4

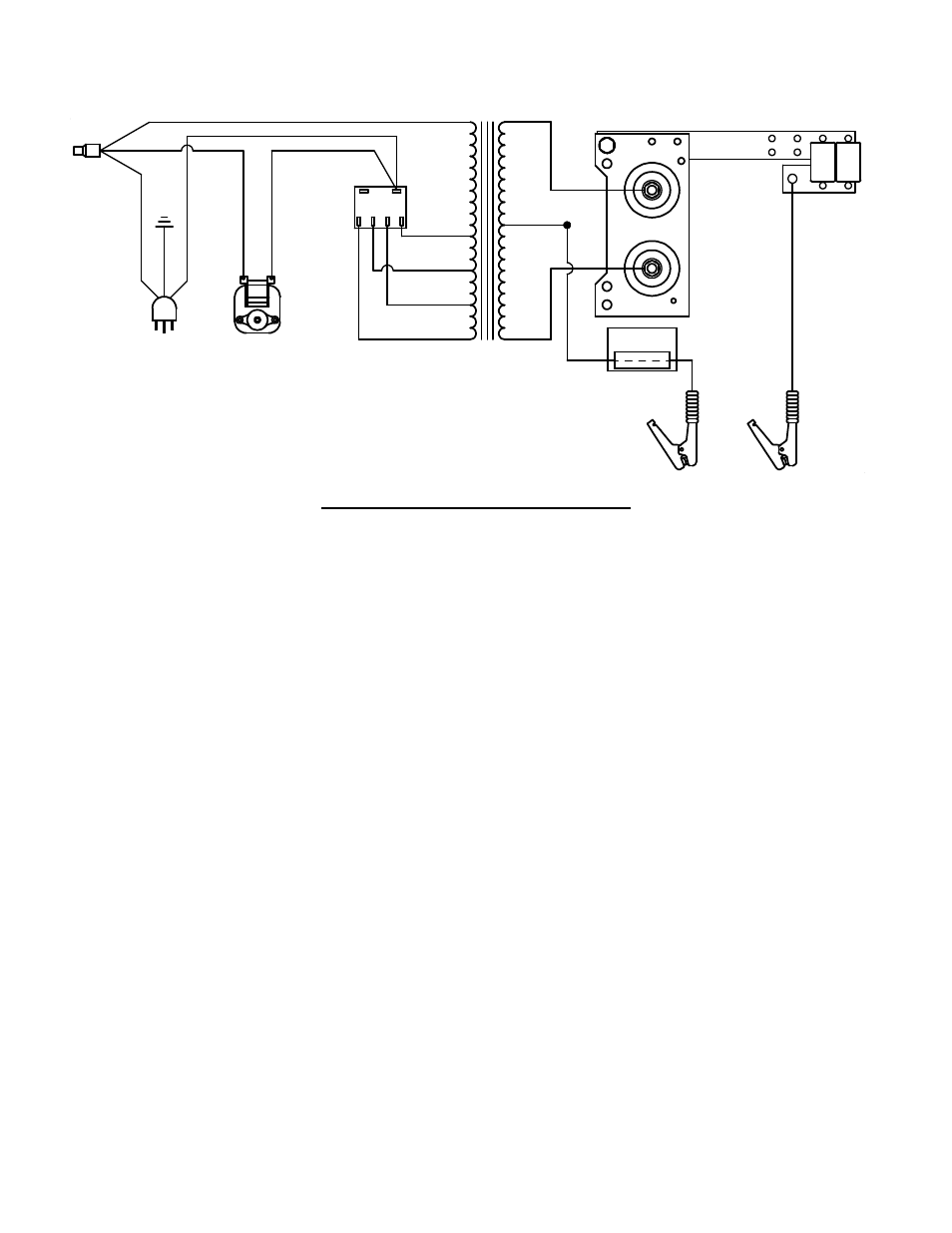

WIRING DIAGRAM
6 8 4 2
VIOLET
BROWN
ORANGE
VOLTAGE
SELECT
SWITCH
1
TRANSFORMER
GRAY
FAN
B
LA
C
K
B
LA
C
K
DC CIRCUIT
BREAKERS
AMMETER
POSITIVE
RED CLAMP NEGATIVE
BLACK CLAMP
YELLOW
W
H
IT
E
B
LA
C
K
G
R
E
E
N
AC CORD
RECTIFIER
MODEL US18 REPAIR PARTS LIST
Switch w/knob ............................................................................611187
Axle w/nuts.................................................................................610287
Wheels w/nuts ...........................................................................605672
Transformer ...............................................................................611199
Rectifier ......................................................................................611200
Fan Blade...................................................................................611201
Fan Motor...................................................................................611202
Leg .............................................................................................610825
DC Circuit Breaker (1) ...............................................................610069
Ammeter.....................................................................................610695
AC Cord .....................................................................................611203
DC Cable Set .............................................................................611204
Handle w/grip .............................................................................611205
Cabinet, Front-Base-Back .........................................................611206
Cabinet, Top-Sides ....................................................................611207
MAINTENANCE INSTRUCTIONS
Worn clamps should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of DC Cable
Set. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman. Incorrect
reassembly may result in a risk of electric shock when the unit is subsequently used.
