B. Rail installation
1. Attach supplied mounting hardware to rail feet (Fig. 4). Leave the hardware OFF of the
rear three feet at this time.
2. Starting at the rear of the Roof Rack Platform and working forward, insert channel nuts
into the corresponding channels on the platform (Fig. 5 #1).
3. Once the rail is in position over the platform, insert remaining three channel nuts into
the platform channel and push forward to align with rail feet. Now insert bolt and flat
washer to secure front feet (Fig. 5 #2).
4. Position side rail feet so they are evenly spaced along the platform then tighten all bolts.

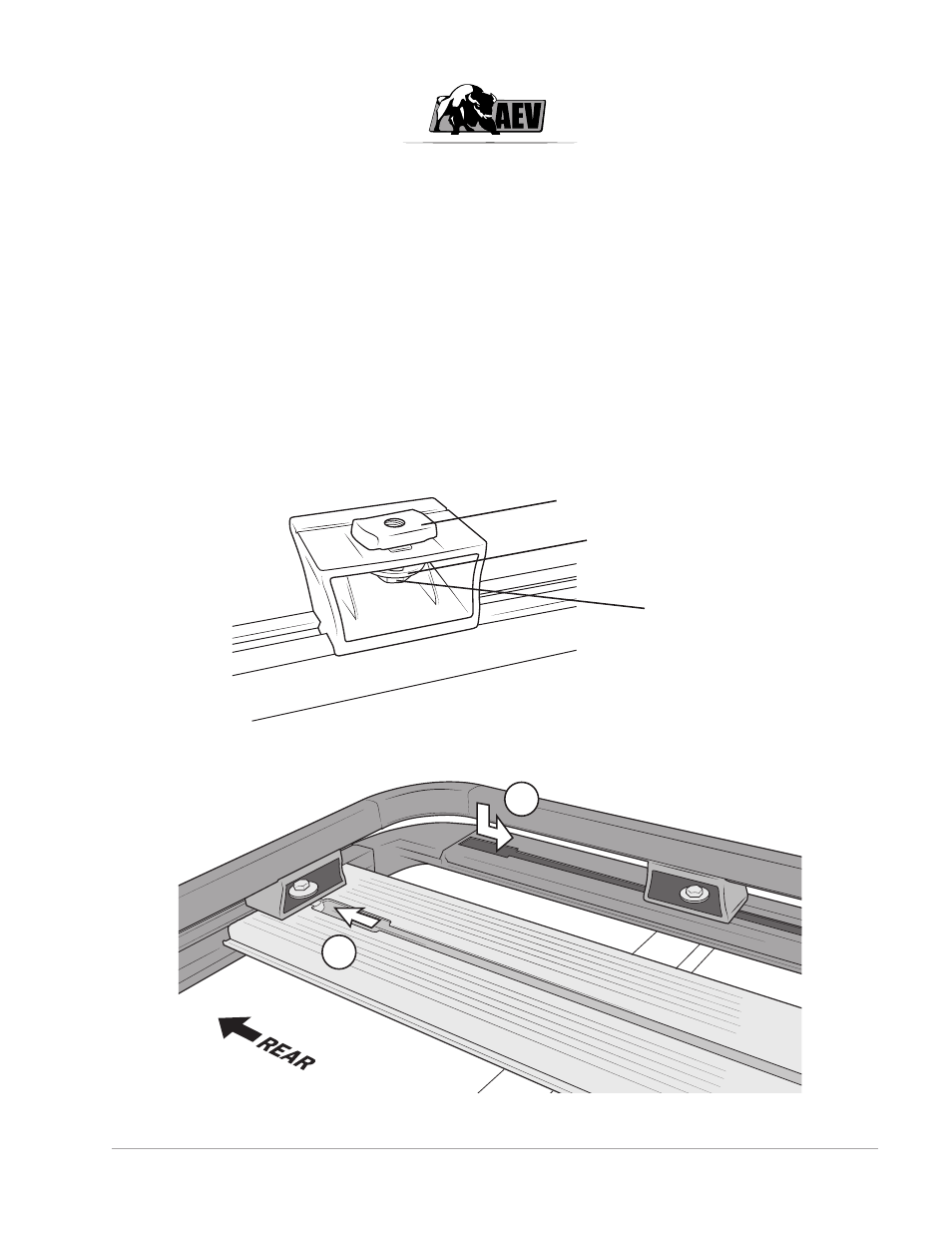

Figure 4
Channel Nut
Flat Washer
Bolt
Figure 5
1
2
