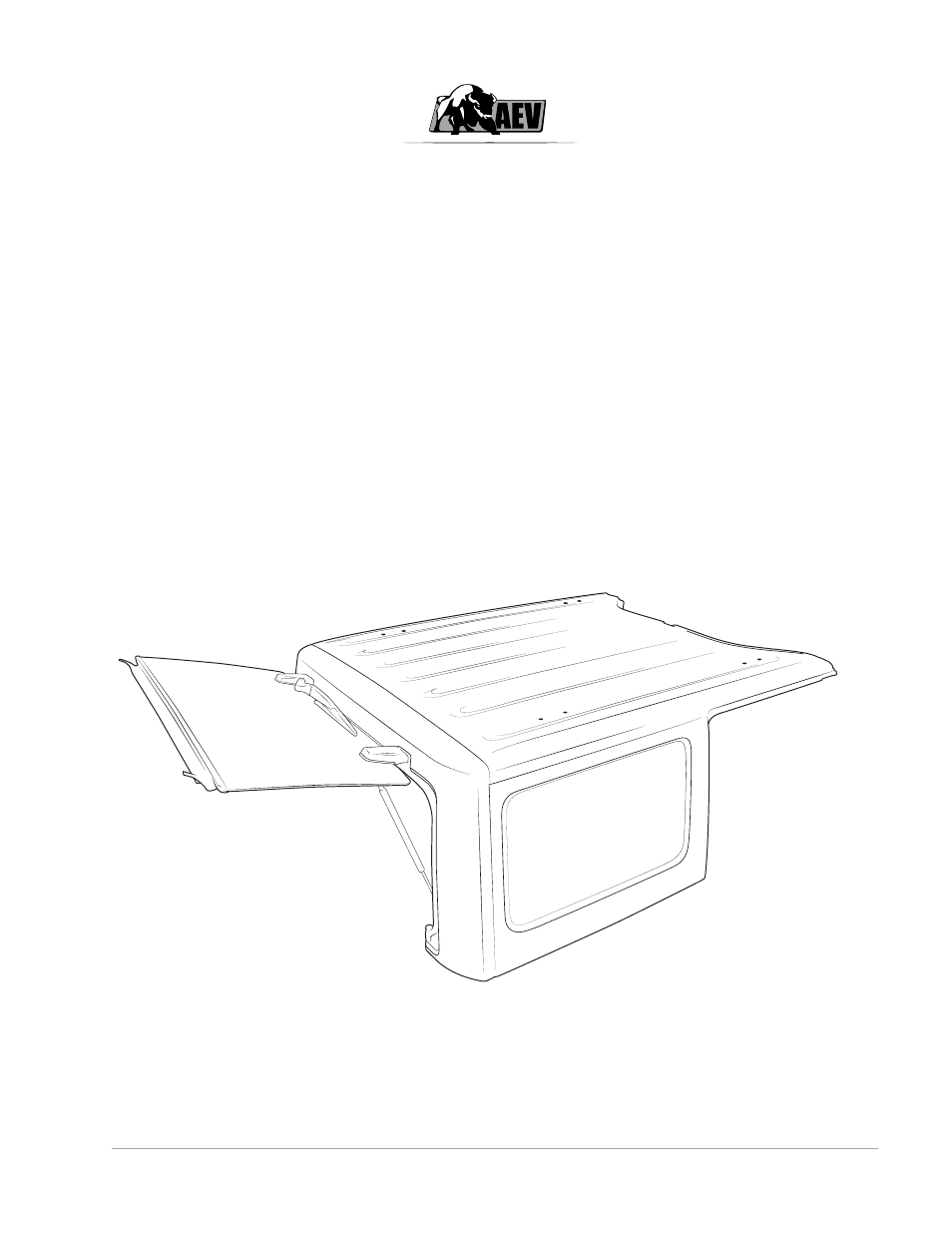

Part IV. Attaching platform to hard top
a. Marking hard top
1. Reinstall Hard top on Vehicle. Top should be completely secured with all factory fasteners to ensure
proper position for drilling holes.
2. Press brackets up flush to the inside of the hard top and tighten all accessible fasteners.
3. Using the holes in the bracket, mark drilling positions on the inside of the hard top (8 holes).
b. drilling hard top
1. Remove hard top (you can now tighten any bracket fasteners that were not accessible before).
2. Drill pilot holes at marked locations with a small drill bit.
3. Using a 5/16” drill bit, drill final holes through hard top.
