5. Assemble the winch plate and fairlead brackets together. Use the M12 hex head bolts and
flange nuts going from the bottom up(washer not needed) as shown above
6. Place the winch mount assembly into position onto the frame.

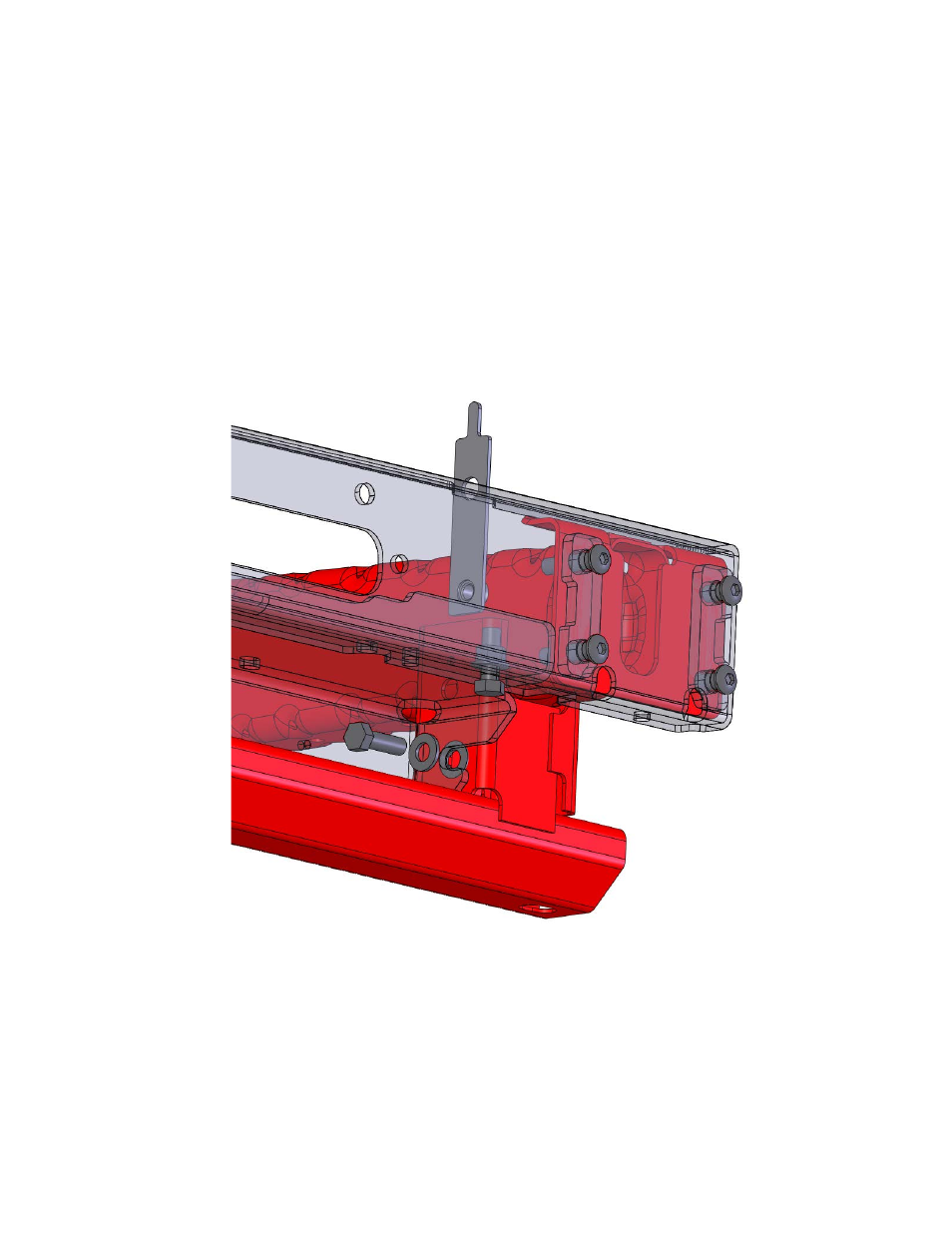

7. With the winch mount aligned, bolt the winch mount to the lower frame attachment points using
the M12 hex head bolts, washers, and nut plate
8. FOR 2007-2011 ONLY, USE THE SUPPLIED LARGE THICK WASHER BETWEEN THE
WINCH MOUNT AND FRAME AS SHOWN.
9. Install the square nuts that come with the winch kit into the winch and feet. A little silicone is
helpful to hold them in place.
10. Place the winch onto the winch mount. Do not install winch mounting bolts at this time. You
will do this later after installing the bumper.
