25. Using two of the AN-08 90-Deg hose ends, connect one to the front side of the fuel pressure sensor

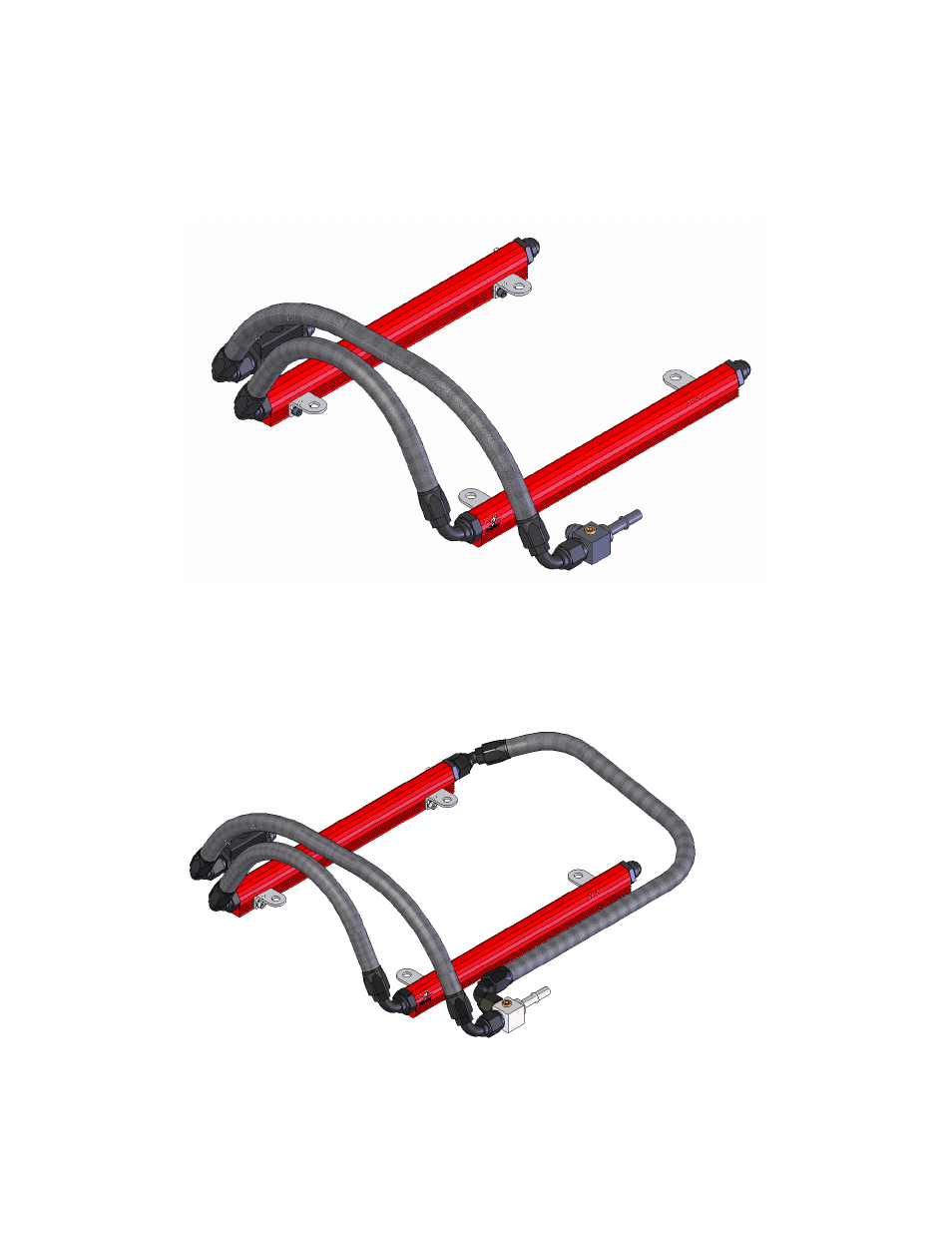

block and the second to the front of the fuel supply tee fitting as shown below. Plan a route between
the two hose ends, measure the length of fuel line needed. See section titled Hose and Fitting
Assembly for fuel line assembly instructions. Once the hoses are assembled, ensure there is no
debris in the hose and install them.
26. Connect one AN-08 90-degree hose end to the fuel supply tee fitting and the AN-08 45-degree hose
end to the rear of the right side fuel rail as shown below. Plan a route between the two hose ends,
measure the length of fuel line needed. See section titled Hose and Fitting Assembly for fuel line
assembly instructions. Once the hoses are assembled, ensure there is no debris in the hose and
install them.
