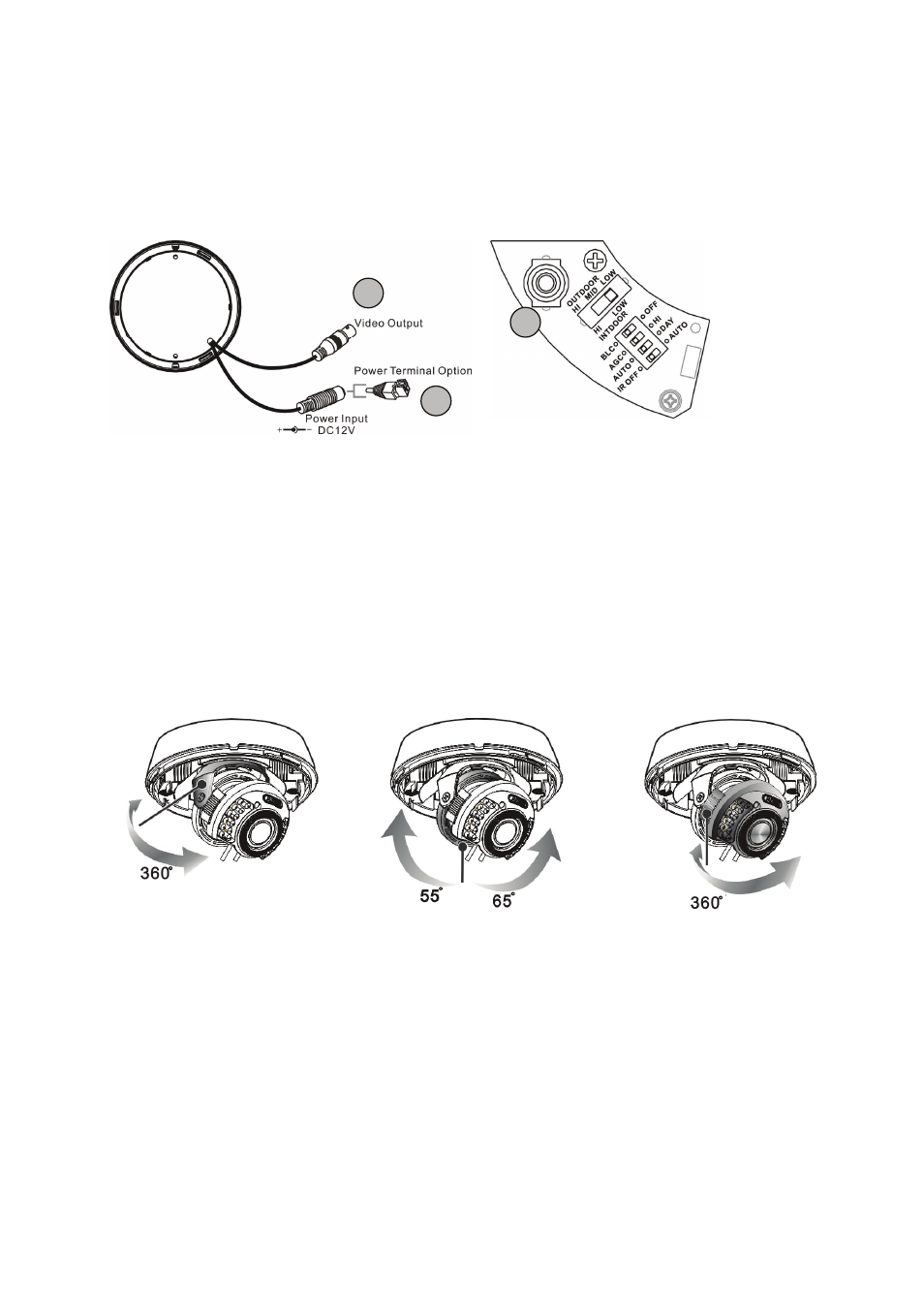

6.3 Connectors
Before you start with the installation please make sure that the supply voltage and the nominal
voltage of the camera comply together.
Power supply & video signal
Video output (for service purpose)
1
Video output (primäry), BNC (female), FBAS 1Vs-s
2
Power connector (round plug 5.5x2.1mm, 12 VDC) or DC 2-pin adapter
3
Videoausgang (sekundär, Service), Cinch (female) FBAS 1Vs-s
6.4 Camera module adjustment
The camera module can be adjusted in 3 axis. The adjustment of the third axis often will be used on
wall mount of the camera. The module rotation (1
st
and 3
rd
axis) must not be performed more than
360 degree.
Pan (1st axis)
Tilt (2nd axis)
Rotation (3rd axis)
1
2
3
