English

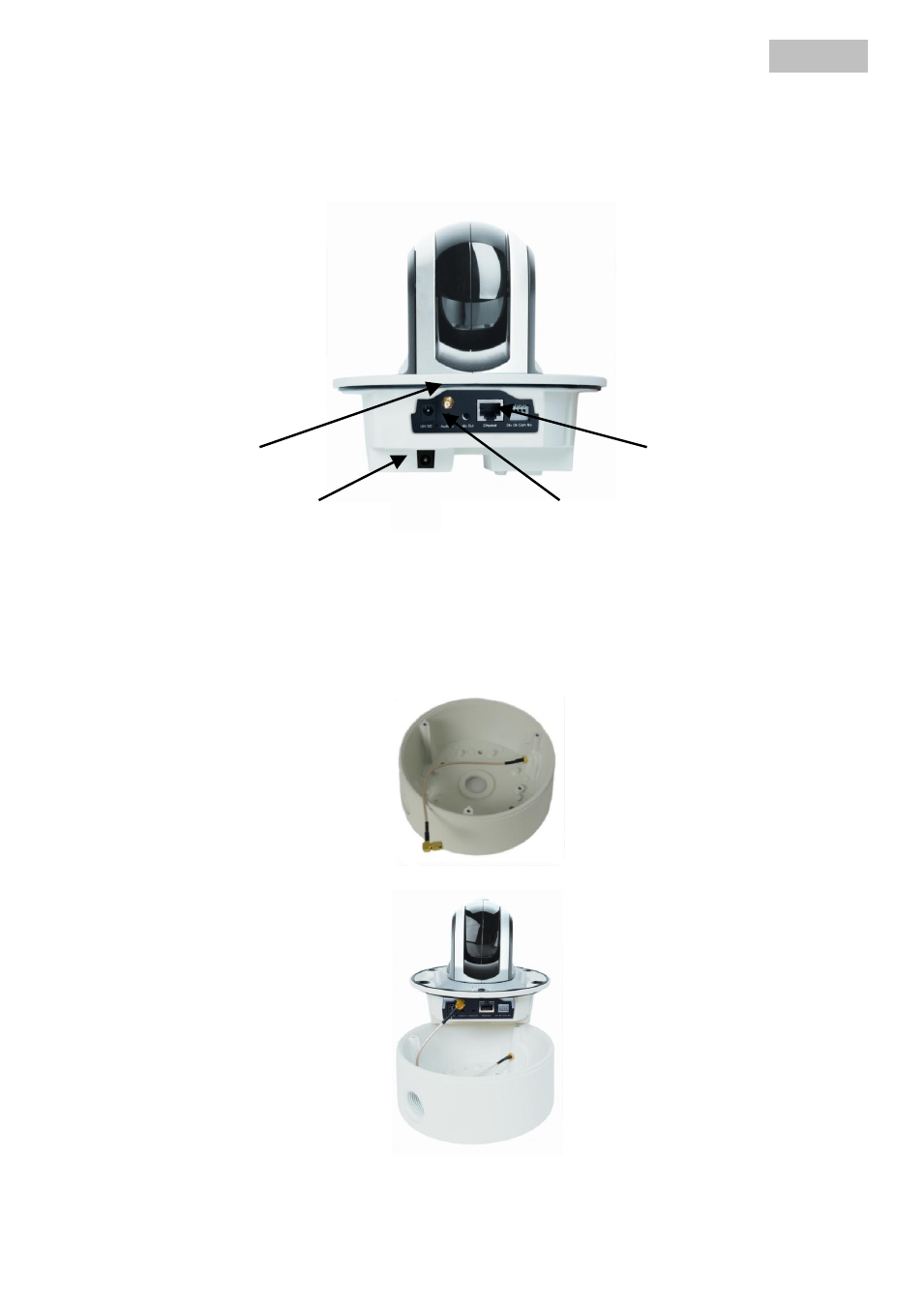

3.2 Housing connectors


Back side of the camera plate
















Use the enclosed Y-Cable to plug the voltage supplies of the heating and camera

Only for W-LAN type:

Mounting of the W-LAN antenna extension at the housing bottom.








Fixing of the antenna extension at the camera.

Outside usage is preferred with an extra antenna (max. 8 dB)

DC 12V

voltage supply input

of the camera

Ethernet connector for

LAN-connection

DC 12V voltage supply

input of the heating

Connector for the

W-LAN antenna

cable
