English

3. Mounting

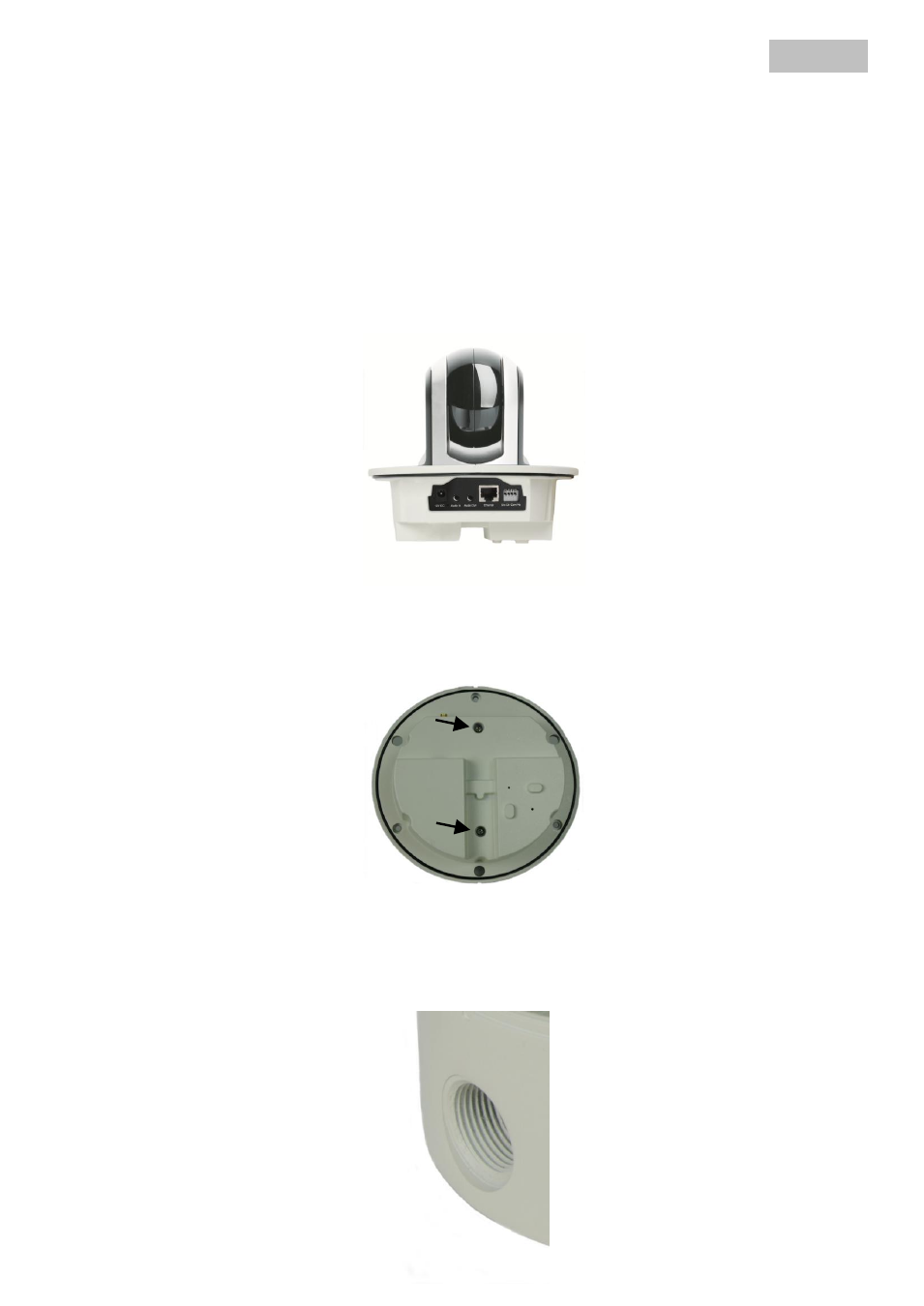

3.1 Putting the camera into the housing

Step 1:
Unscrew the housing on the topside and take off the upper housing part.

Step 2:
Take out the inner housing plate and fit the camera into this.





Step 3:
Please bolt the camera at the bottom side like the following illustration.






Step 4:
Please put the cables for the power supply and when indicated the network cable through the cut-out
of the housing bottom.
Please seal the cut-out to ensure that it is weather-proof, e.g. with a PG threaded connection of the
size M25 x 1,5, if necessary use sealing material.
