ABUS TVIP52502 Operating instructions - Manual (Page 66)

66

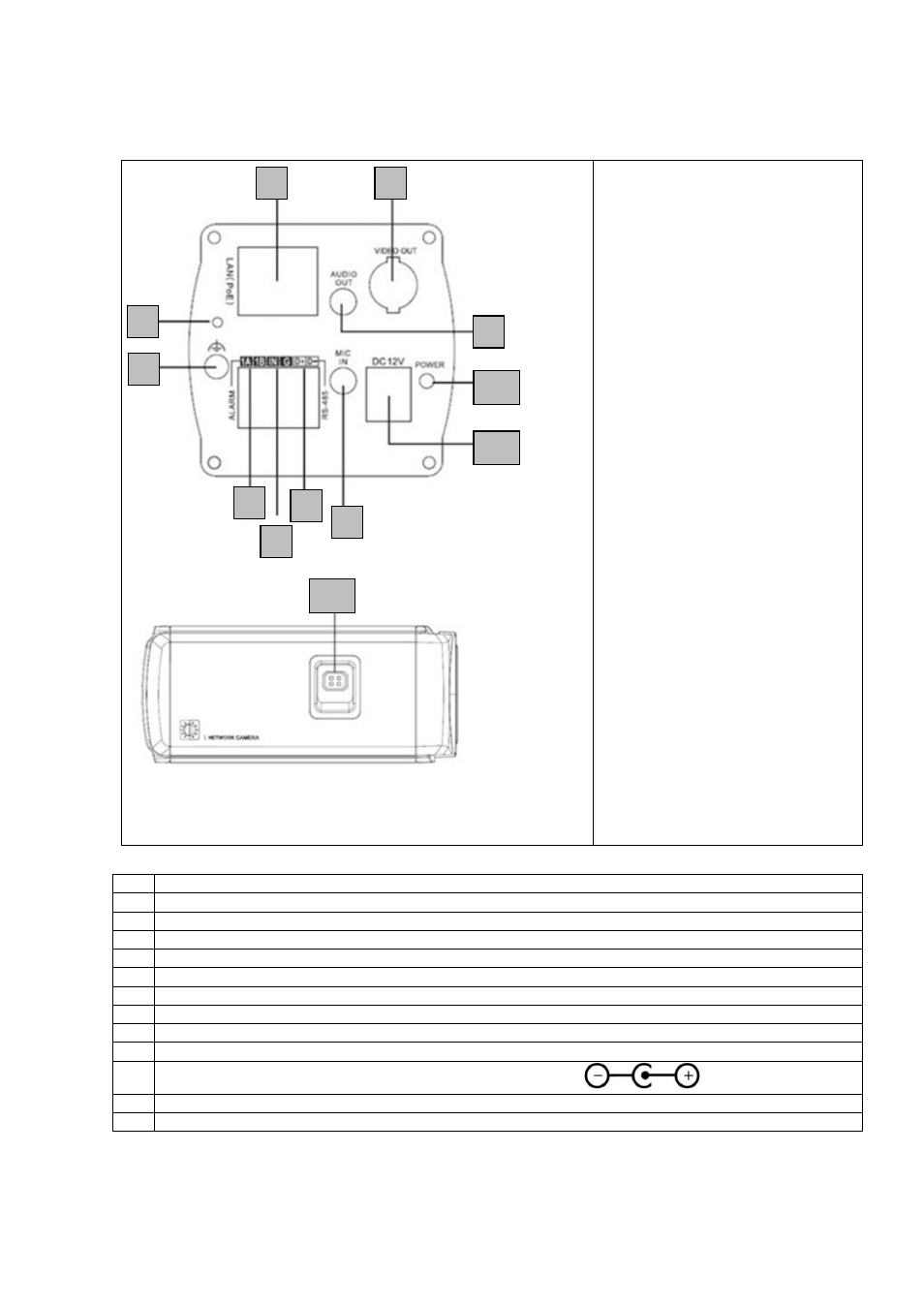

5. Description of the connections
No. Description
1 Network
access (RJ45)
2 Reset button
3 Ground connection
4 Alarm output (max. 5 V DC/50 mA)
5 Alarm input (IN/G) (jumper between “IN” and “G” triggers the alarm)
6 RS-485 (not in use)
7 Analogue video output (for service purposes)
8 Audio output
9 Audio input (microphone/line)
10
12 V DC power supply connection (round plug 5.5 x 2.1 mm)
11 Status display for power supply
12 Lens connection
1
2
3
4
5
6
7
8
9
10
11
12
