27
English

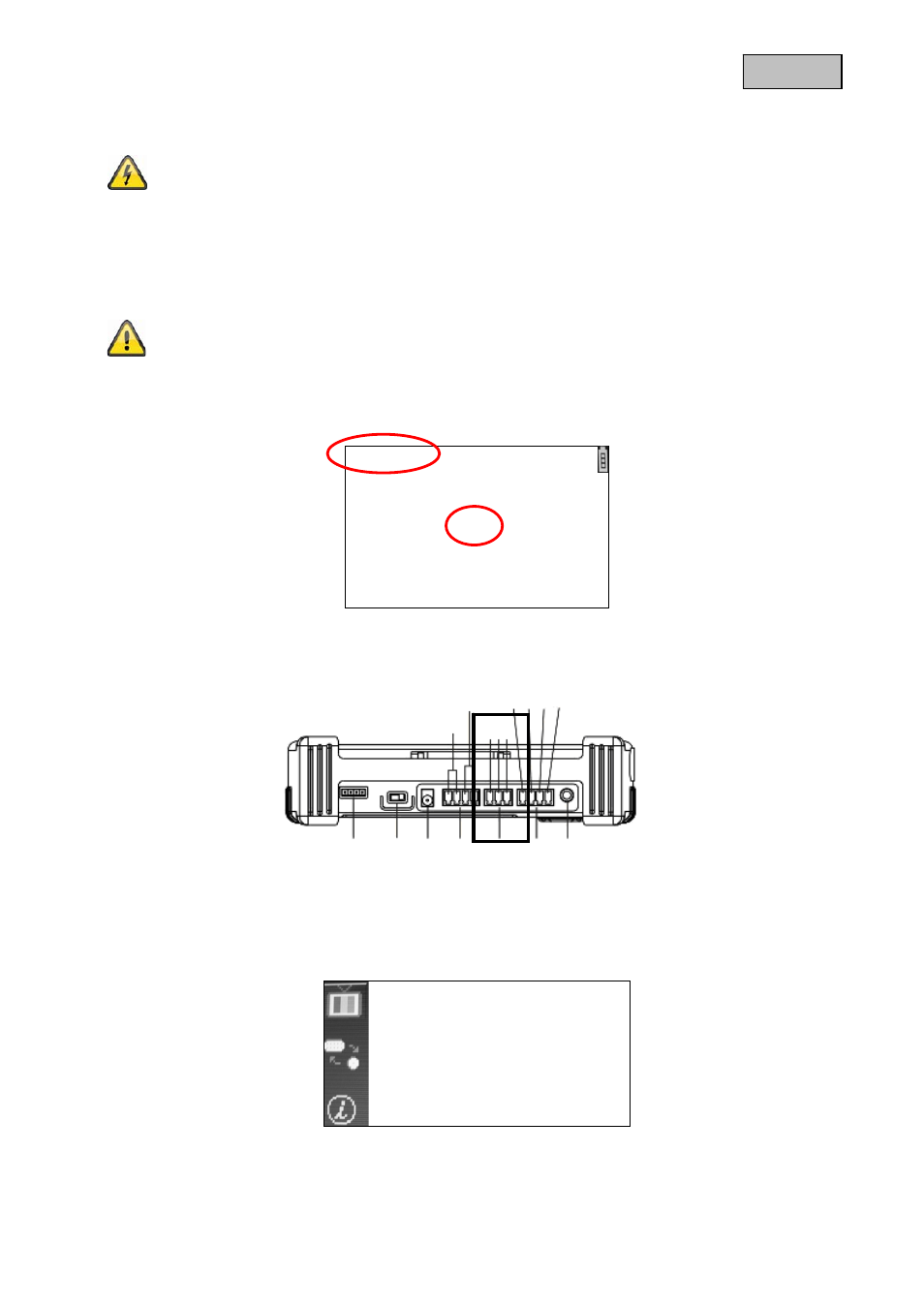

7.3. DC voltage measurement
Do not perform voltage measurements during the recharge cycle.
The battery can explode and cause fatal injuries.
Ensure that no devices are attached while you perform a voltage measurement.
Connect the sensors to the appropriate monitor jacks. Please ensure that the correct measurement procedure
is selected.
The measurement range for direct current lies between 0 – 45 VDC.
Please pay attention to correct polarity. With wrong polarity, voltage measurement will not work.
The measurement results are displayed as follows:
DC 0V~45V
0.0V
7.4. PTZ control
Select RS485 PTZ control via the mode button.
Connect the data cables of the speed dome with the +/- terminals of the
g PTZ interface. Pay attention to
correct polarity.
Camera ID 1
PELCO P
Baud Rate
9600
Sleep Mode Off
Language German
Reset
►
Back ►
Push the menu button to open the menu. Push the ▼ button until you reach the settings for the RS-485
interface.
G + -
