Chapter 2 Quick Installation Guide 2 - 9
2.6 Digital I/O Connector (CN7)
Note: The max. rating of Pin 1 ~ Pin 8 is 3.3V@8mA
The max. rating of Pin 9 is [email protected]
This connector offers 4-pair of digital I/O functions.
BIOS using the I2C Bus to read/write internal DIO registers and the Serial Bus
address is 0x6E.

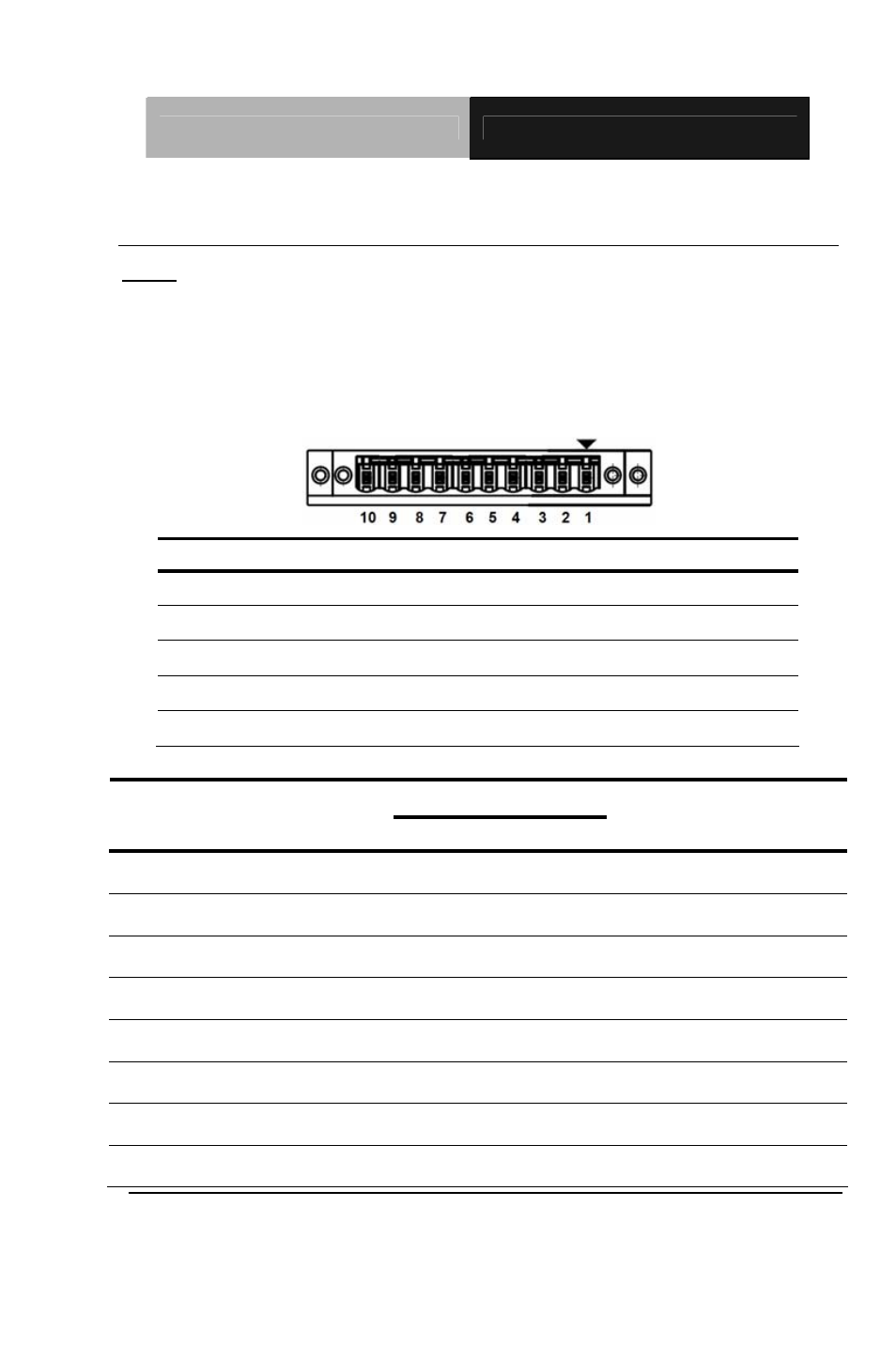

The pin definitions are illustrated below:
Pin Signal Pin Signal
1 Port 1 2 Port 2
3 Port 3 4 Port 4
5 Port 5 6 Port 6
7 Port 7 8 Port 8
9 +3.3V 10 Ground
Address(Register)
BIOS Setting
(I2C address) Connector
Definition
Output Input
F75111 GPIO Setting
Port 1 @6Eh Pin 1 21h/Bit 0 22h/Bit 0 U44 Pin 6 (GPIO 20)
Port 2 @6Eh Pin 2 21h/Bit 1 22h/Bit 1 U44 Pin 7 (GPIO 21)
Port 3 @6Eh Pin 3 21h/Bit 2 22h/Bit 2 U44 Pin 8 (GPIO 22)
Port 4 @6Eh Pin 4 21h/Bit 3 22h/Bit 3 U44 Pin 24(GPIO 23)
Port 5 @6Eh Pin 5 21h/Bit 4 22h/Bit 4 U44 Pin 23(GPIO 24)
Port 6 @6Eh Pin 6 21h/Bit 5 22h/Bit 5 U44 Pin 22(GPIO 25)
Port 7 @6Eh Pin 7 21h/Bit 6 22h/Bit 6 U44 Pin 21(GPIO 26)
Port 8 @6Eh Pin 8 21h/Bit 7 22h/Bit 7 U44 Pin 20(GPIO 27)
