IMBM-Q87A 2-2
PCIEX16_1
PCI1
PCI2
DIO1
PCIEX4_1
EATX_PWR1
CHA_FAN1
CPU_FAN1
CHA_FAN2
BZ1
ASM
1083
KBMS
_USB1213
USB5678
SB_PWR2
SB_PWR1
CLRTC
CHASSIS1
DIS_ME
24.4cm(9.6in)
24.4cm(9.6in)
Intel ®
Q87
Intel ®
PHY
I217LM
Intel ®
I210AT
DDR3 DIMM_A1 (64bit, z240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, z240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
USB910
AUDIO1
LAN2_USB3_34
LAN1_USB3_12
TPM1
COM1_V1
DVI_D1
VGA
DP1
LGA1150
F_PANEL1
COM4
COM5
COM6
COM3
COM1
COM2
ASM
1442
EATX_PWR2
BATTERY
Nuvoton
NCT6791D
ALC
887
MINI_CARD1
SATA6G_1 SATA6G_2 SATA6G_3 SATA6G_4 SATA6G_5
3 2 1 3 4 5 6
9 10 11 12 14 13 3 2 15 16
2
1
8
7

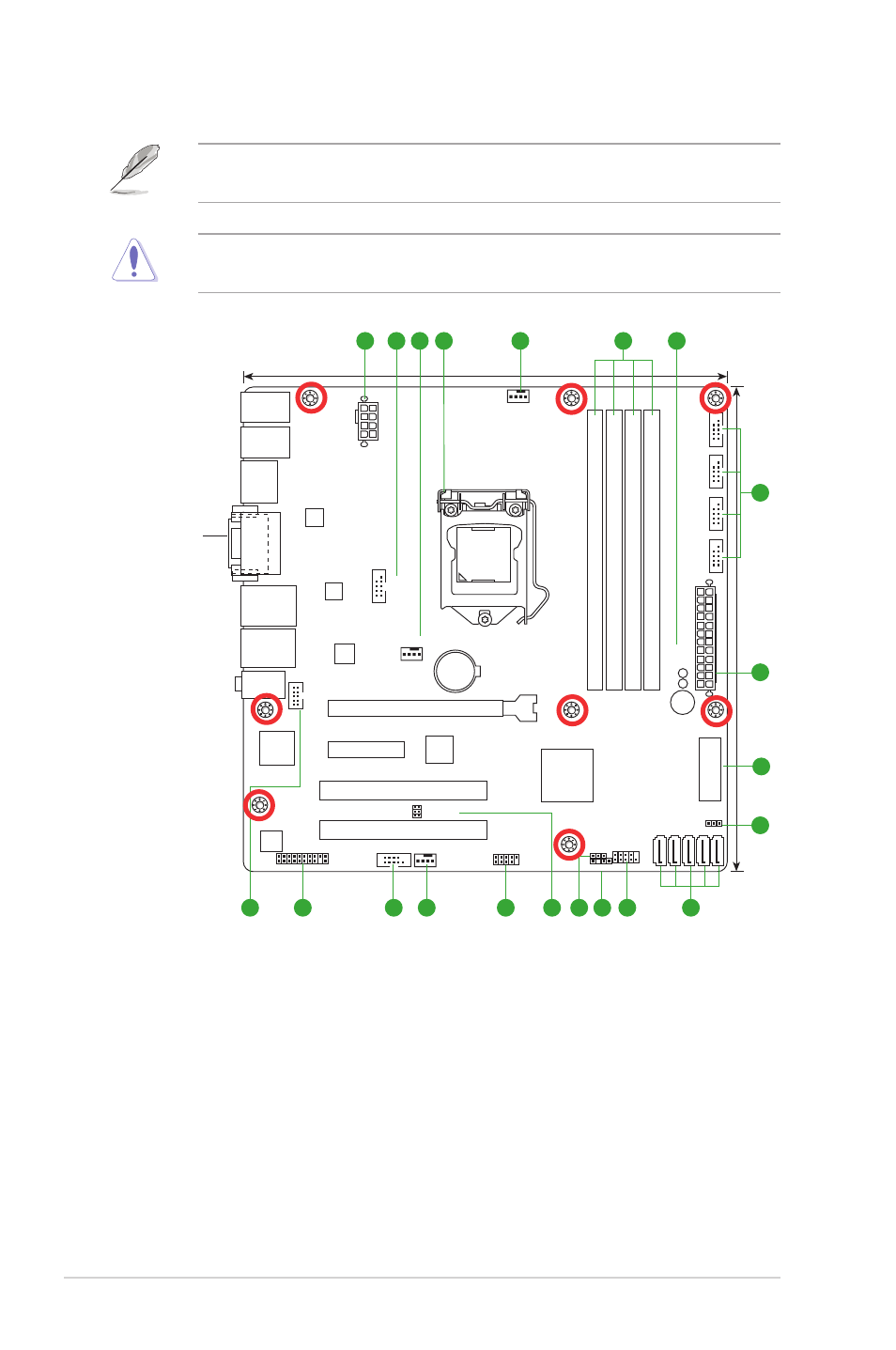

2.2 Motherboard layout
Place this side
towards the rear
of the chassis
NOTE: Place eight screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION! Do not overtighten the screws! Doing so can damage the
motherboard.
