Page 29

2-21
Chapter 2: Motherboard information

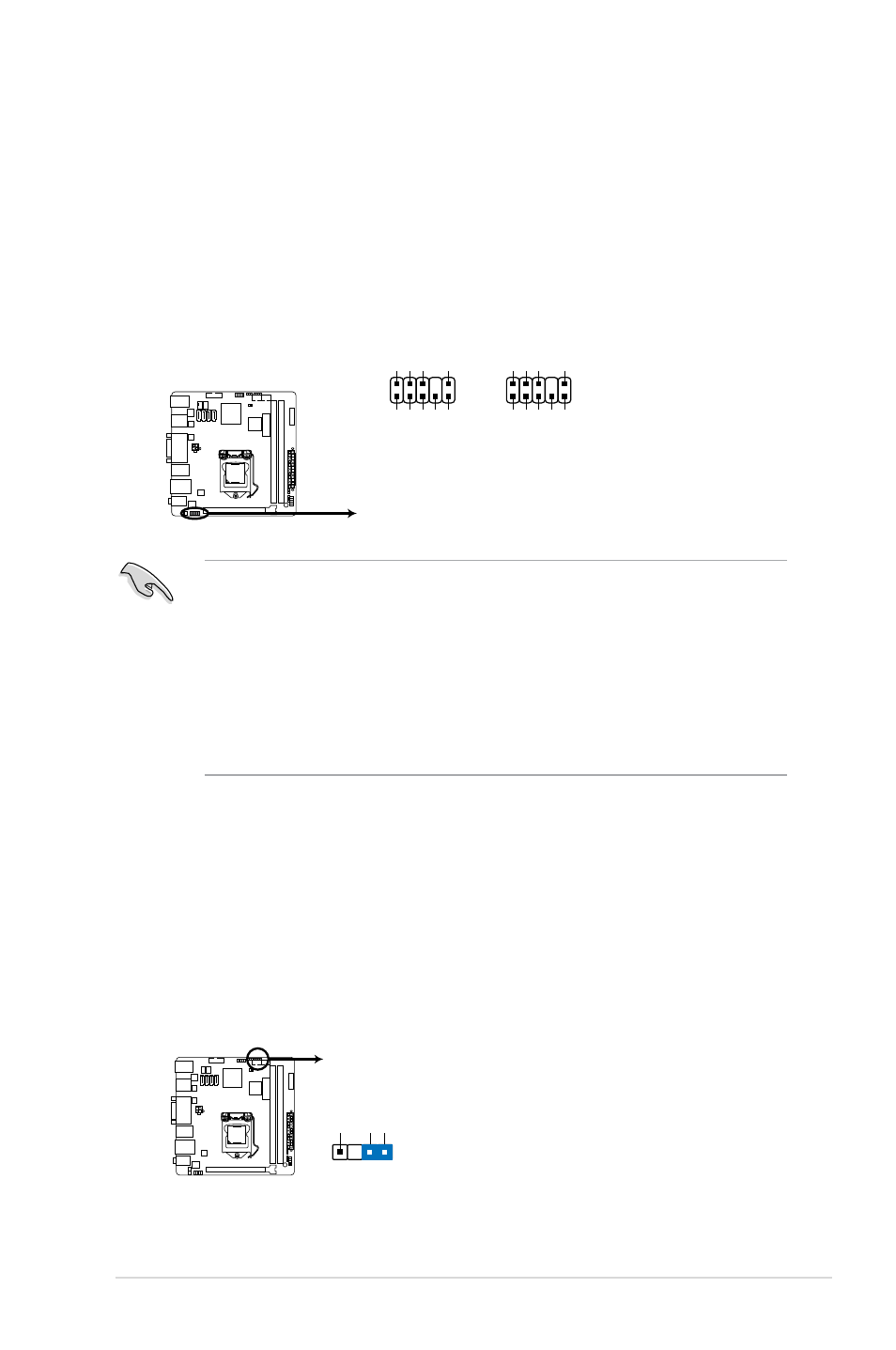

EMB-Q77A Chassis intrusion connector
No Intrudor
Intrudor Intrudor
PIN1
CHASSIS
4. Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch.
Connect one end of the chassis intrusion sensor or switch cable to this
connector. The chassis intrusion sensor or switch sends a high-level signal to
this connector when a chassis component is removed or replaced. The signal
is then generated as a chassis intrusion event.
By default, the pins labeled “Intruder” are shorted with a jumper cap. Remove
the jumper caps only when you intend to use the chassis intrusion detection
feature.
3. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports either HD Audio or legacy AC`97 audio standard. Connect one end
of the front panel audio I/O module cable to this connector.
IMPORTANT:
• We recommend that you connect a high-definition front panel audio
module to this connector to avail of the motherboard’s high-definition audio
capability.
• If you want to connect a high-definition front panel audio module to this
connector, set the Front Panel Type item in the BIOS setup to [HD]; if you
want to connect an AC’97 front panel audio module to this connector, set
the item to [AC97]. By default, this connector is set to [HD].
EMB-Q77A Front panel audio connector
AAFP
AGND NC SENSE1_RETUR
SENSE2_RETUR
PORT1 L PORT1 R PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND NC NC
NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition
