Elmo Rietschle G-BH7e User Manual
Page 27
© Gardner Denver Deutschland GmbH
27 / 52
610.44520.40.000
Installation
Realisation
G
H
B
A
C
D
X1
X2
E
F
2ne2bhxn398

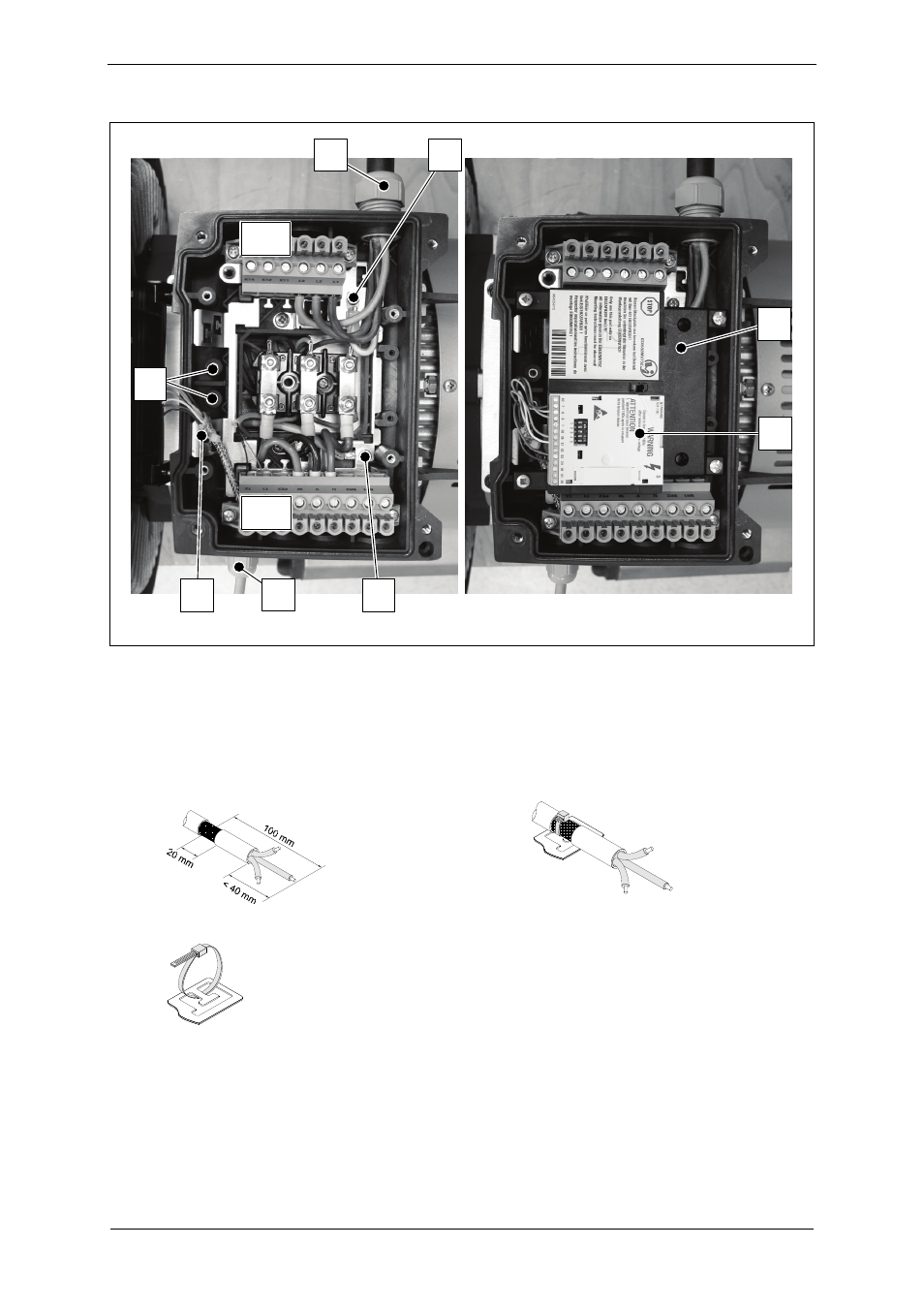

Fig. 14: Electrical connections 2FC4302-1NE00 … 2FC4752-1NE00
Mains cable L1, L2, L3, PE
PE connection mains cable
Shielded control cable
Shield connection for the control cable: g:
1
Prepare cable..
ne2bhxn045
2
Insert cable tie..
ne2bhxn046
3
Insert cable and tighten cable tie:
–
The shielding must have large−surface
contact to the shield sheet.
–
The shielding must be connected
tightly to the shield sheet.
ne2bhxn047
Potential−free terminals
PE connection motor
Support for control terminal module
Control terminal module
X1 Terminal strip for mains connection and relay
output connection
X2 Terminal strip for motor connection
PES HF shield termination by large−surface
connection to PE
