GR-Series Quick Disconnect Assembly
GR20, GR22, and GR30 Assembly

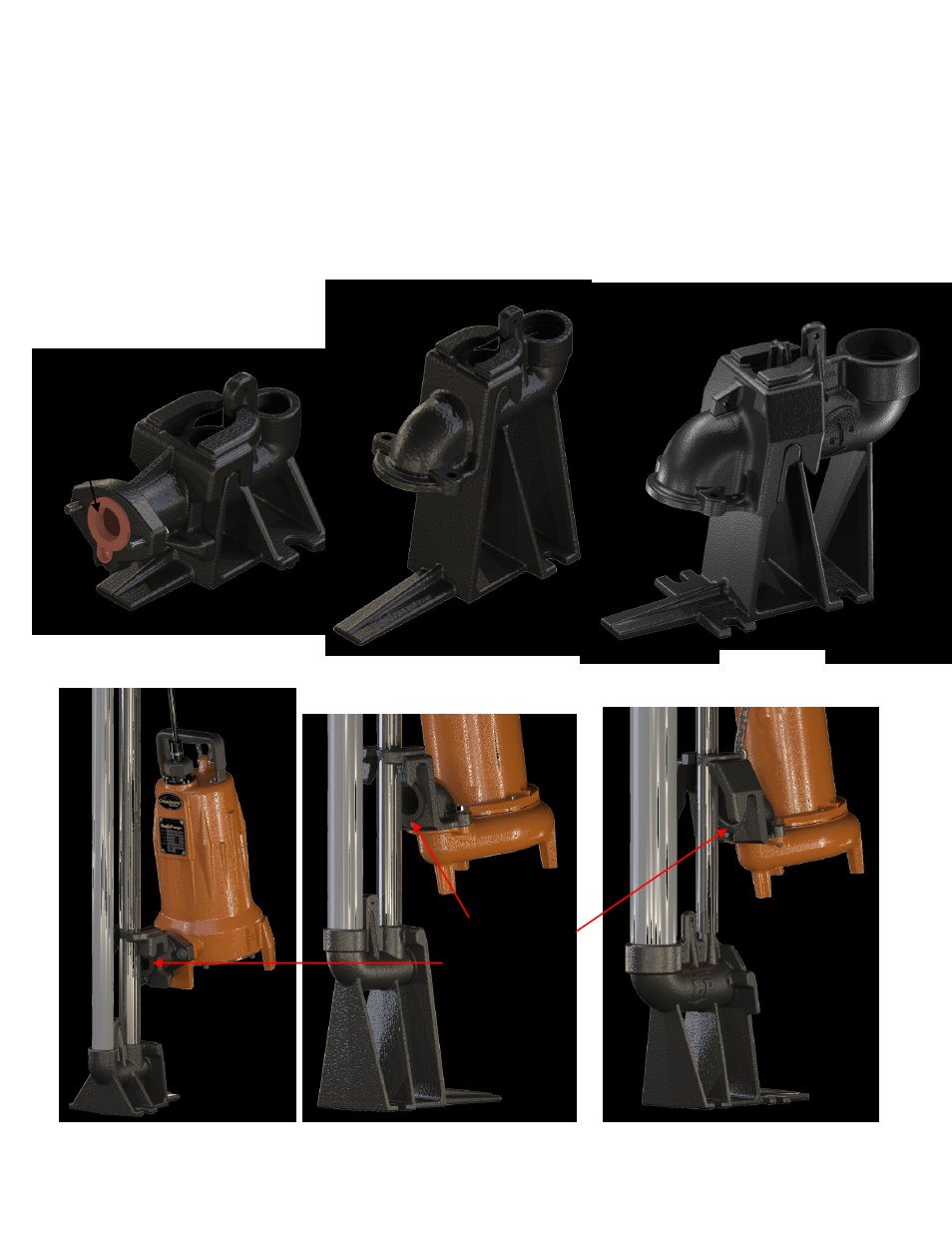

The GR20, GR22 and GR30 quick disconnect assembly provided with your EPS system is designed to allow easy
installation and removal of the pump. When installed correctly it will seal and provide a means to lift the pump without
disconnecting any of the discharge piping. Please ensure that installation is done as per the diagrams below.
ENSURE THAT
GROMMET IS
PROPERLY
INSTALLED
GR20 GR30
GR22
ENSURE THAT
RUBBER
GROMMET IS
PROPERLY
INSTALLED HERE
