Liberty Pumps Engineered Pump Systems (EPS) - Manual (Page 10)

©Copyright 2014 Liberty Pumps Inc. All rights reserved 10
10-25 DEGREES

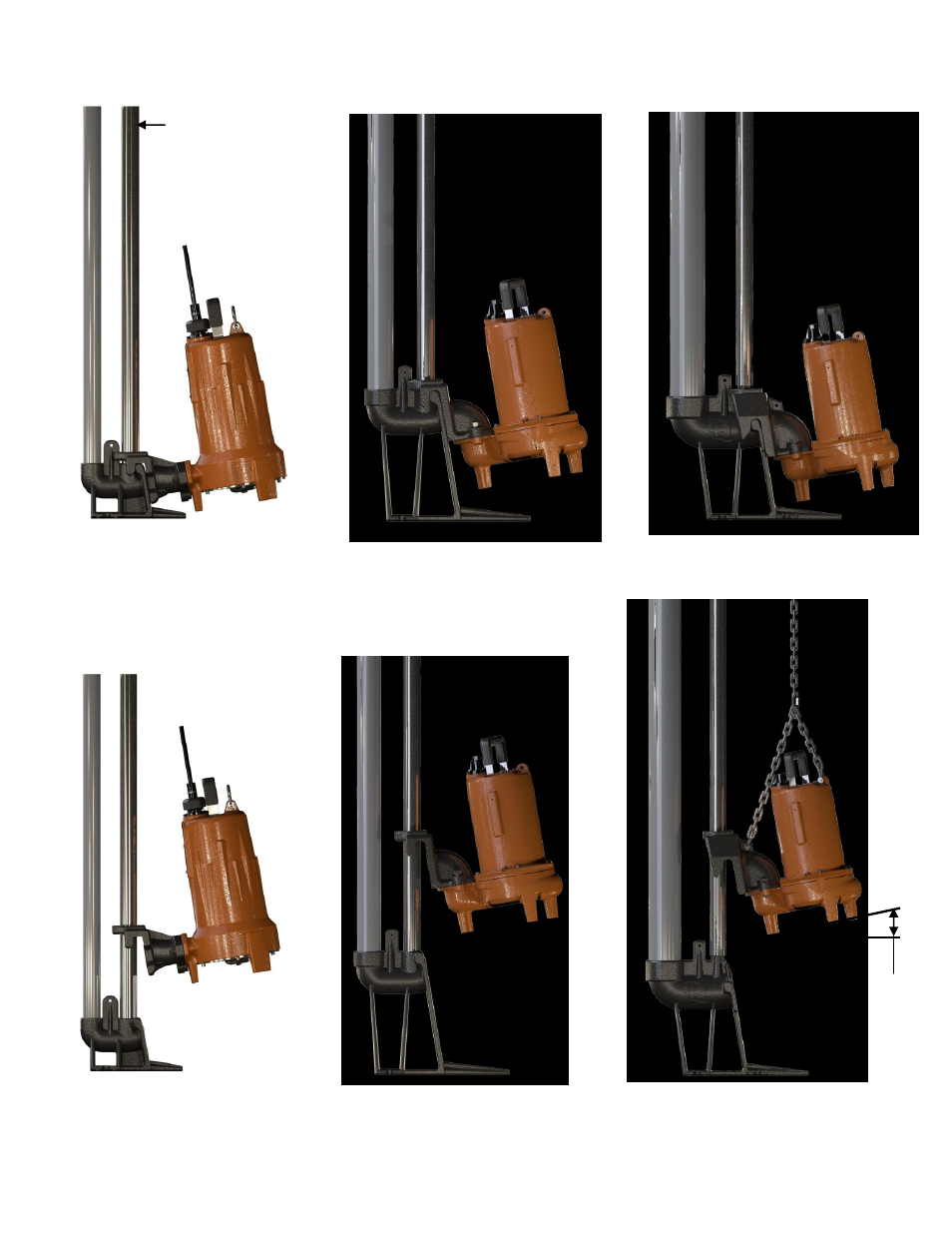

GR20 OPERATING POSITION GR22 OPERATING POSITION GR30 OPERATING POSITION
GR20 DISCONNECTED POSITION GR22 DISCONNECTED POSITION GR30 DISCONNECTED POSITION
1-1/4”
GUIDE RAIL
PIPE 1-1/4”
GUIDE RAIL
PIPE 1-1/4”
GUIDE RAIL
PIPE
1-1/4”
DISCHARGE
PIPE
2”
DISCHARGE
PIPE
3”
DISCHARGE
PIPE
