PRO 370 SYSTEMS
FLOAT TREE AND PIPE INSTRUCTIONS
New Discharge Pipe configuration:
Note for PRO 370 systems only, the new length of pipe required is 31 5
/8” which is 8” longer than
the one in the system.
The kit includes a coupling and short length of pipe that must the “glued” to
the existing discharge pipe.

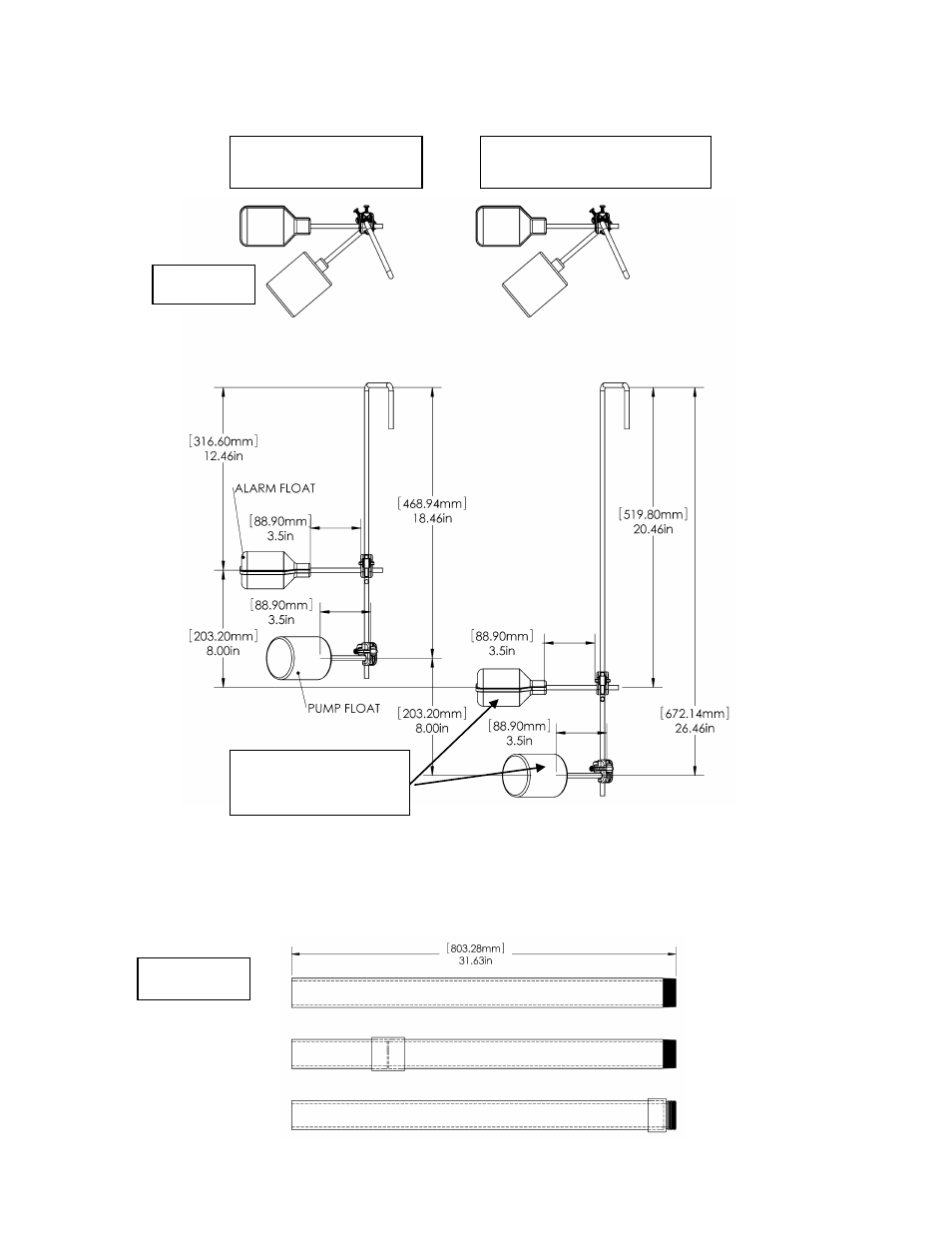

Figure 2.
Alarm float
Pump float
Figure 1.
Original QuickTree
®
(shorter)
Replacement
QuickTree
®
(longer)
Tether Length
3.5
” on pump float
3.5” on alarm float
