Liberty Pumps X8-D Basin Extension User Manual
Page 3

©Copyright 2013 Liberty Pumps Inc. All rights reserved
3
PRO 380 and 680 SYSTEMS
FLOAT TREE AND PIPE INSTRUCTIONS
New Discharge Pipe configuration:
Note for PRO 380 and 680 systems only, t
he new length of pipe required is 25 3/8” which is 8”
longer then the one in the system. The kit includes a coupling and short length of pipe that must
the “glued” to the existing discharge pipe, X8-D contains two extensions.

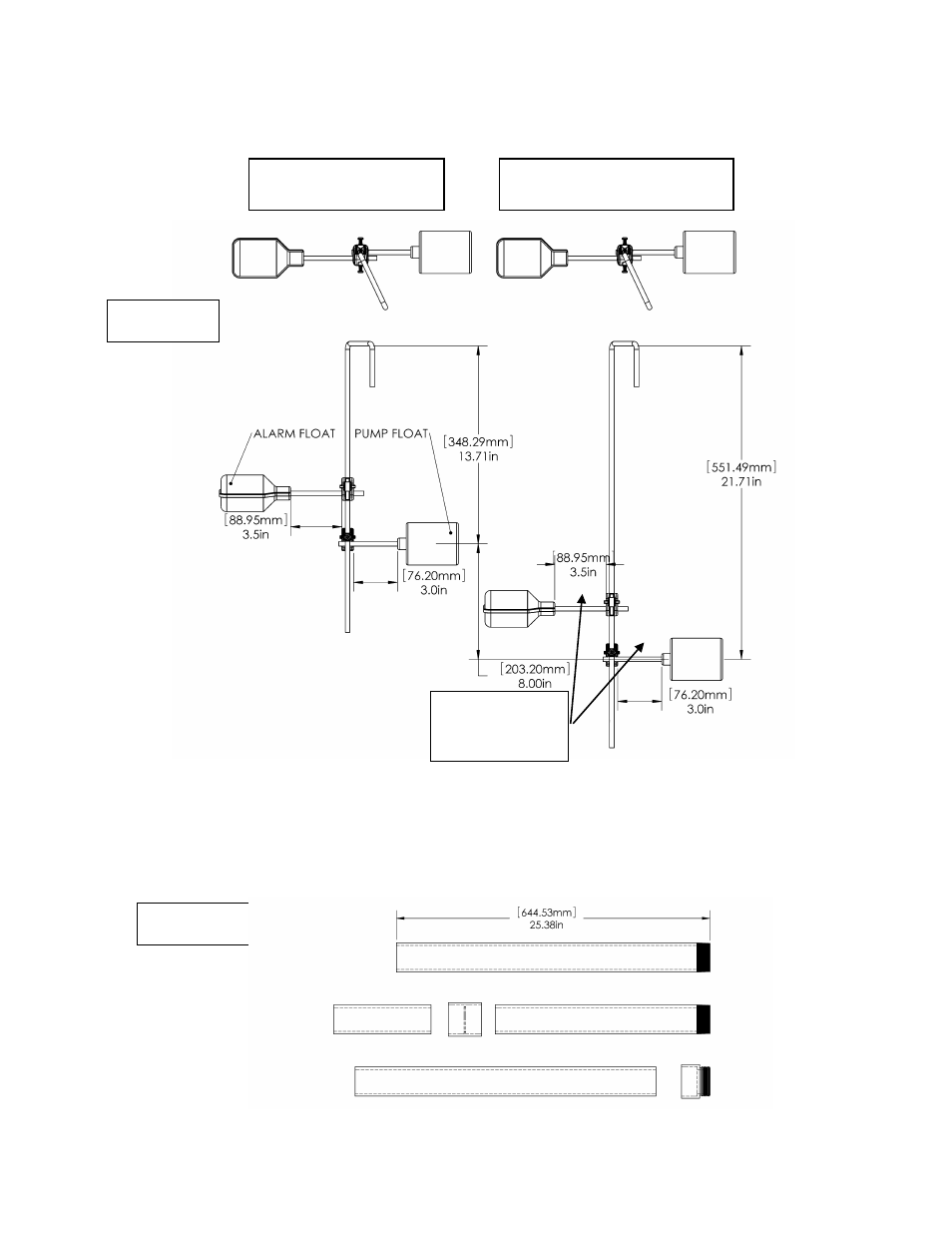

Figure 1.
Figure 2.
Original QuickTree
®
(shorter)
Replacement
QuickTree
®
(longer)
Tether Length
3.0
” on pump float
3.5” on alarm float
Figure 1.
