80 SERIES
OM−03790
MAINTENANCE & REPAIR
PAGE E − 8
sparks, and flame. Read and follow all
precautions printed on solvent contain-
ers.
The seal is not normally reused because wear pat-
terns on the finished faces cannot be realigned
during reassembly. This could result in premature
failure. If necessary to reuse an old seal in an emer-
gency, carefully wash all metallic parts in fresh
cleaning solvent and allow to dry thoroughly.
Handle the seal parts with extreme care to prevent
damage. Be careful not to contaminate precision
finished faces; even fingerprints on the faces can
shorten seal life. If necessary, clean the faces with a
non-oil based solvent and a clean, lint-free tissue.
Wipe lightly in a concentric pattern to avoid
scratching the faces.
Inspect the seal components for wear, scoring,
grooves, and other damage that might cause leak-
age. Clean and polish the seal spacer sleeve, or re-
place it if there are nicks or cuts on either end. If any
components are worn, replace the complete seal;
never mix old and new seal parts.
If a replacement seal is being used, remove it from
the container and inspect the precision finished
faces to ensure that they are free of any foreign
matter.
To ease installation of the seal, lubricate the pack-
ing rings and seal liner with water or a very small
amount of oil, and apply a drop of light lubricating
oil on the finished faces. Assemble the seal as fol-
lows (see Figure 3).
PACKING RINGS
ENGINE
CRANKSHAFT
IMPELLER
SHIMS
IMPELLER
STATIONARY
WASHER
SPRING
SPACER
SLEEVE
ROTATING
ELEMENTS
STATIONARY
ELEMENTS
INTERMEDIATE
CHAMFER
SEAL
LINER
STATIONARY
WASHER

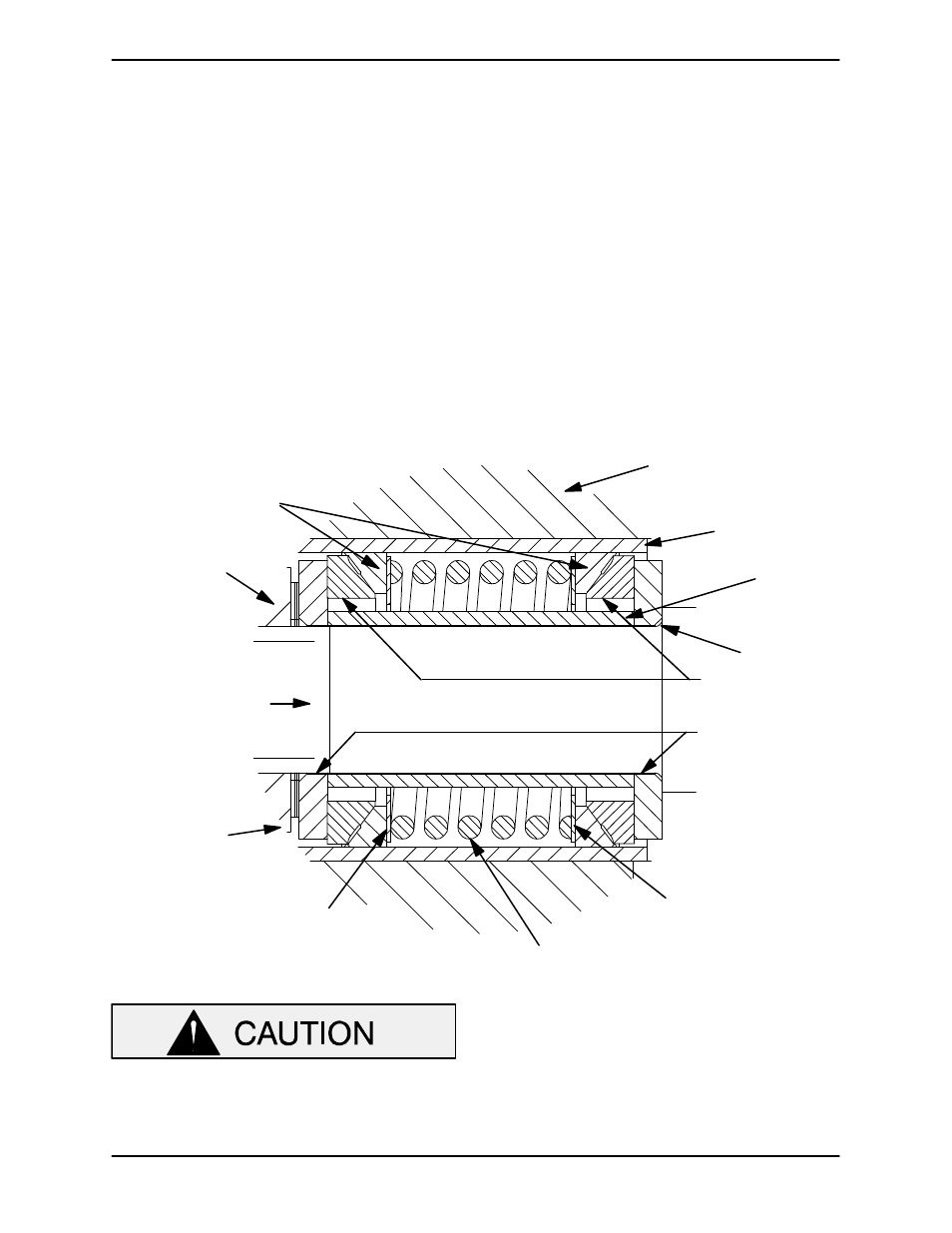

Figure 3. Seal Assembly
This seal is not designed for operation at
temperatures above 110
_F (43_C). Do
not use at higher operating tempera-
tures.
Position the inboard rotating element on the shaft
with the larger chamfered side toward the shaft
shoulder, and slide it on until fully seated.
Subassemble the inboard stationary seat, packing
ring and stationary washer. Press this unit into the
lubricated seal liner until the seal faces contact. A
