Mpatch 5.1 Audio output Connections
Stereo Operation
The MPatch 5.1 features three sets of outputs.
For monitoring the L/R stereo signal, you would normally use the Stereo Balanced
XLR outputs. If your speakers are unbalanced, you can use this output with an
adaptor that connects to Pin 1 (hot) and Pin 3 of the XLR connector.
The L/R stereo signal also appears at outputs 7 and 8,
respectively, of the D-Sub Slave Output.
5.1 Surround output
These balanced 1/4” TRS outputs
carry the individual 5.1 audio streams.
Power Input
OFF ON
POWER
L
R
LS
RS
LFE
C
L
R
Balanced
Left Right
L R LS RS C LFE
INPUT B INPUT D
Stereo Speaker Outs
Surround Speaker Outputs
INPUT A+C
SLAVE OUTPUT
Balanced input and Link to output
(90-240V ac)
Power Input
OFF ON
POWER
L
R
LS
RS
LFE
C
L
R
Balanced
Left Right
L R LS RS C LFE
INPUT B INPUT D
Stereo Speaker Outs
Surround Speaker Outputs
INPUT A+C
SLAVE OUTPUT
Balanced input and Link to output
(90-240V ac)
Tip
Ring
Sleeve
SMP RO AUDIO MP
a
tch 5.1

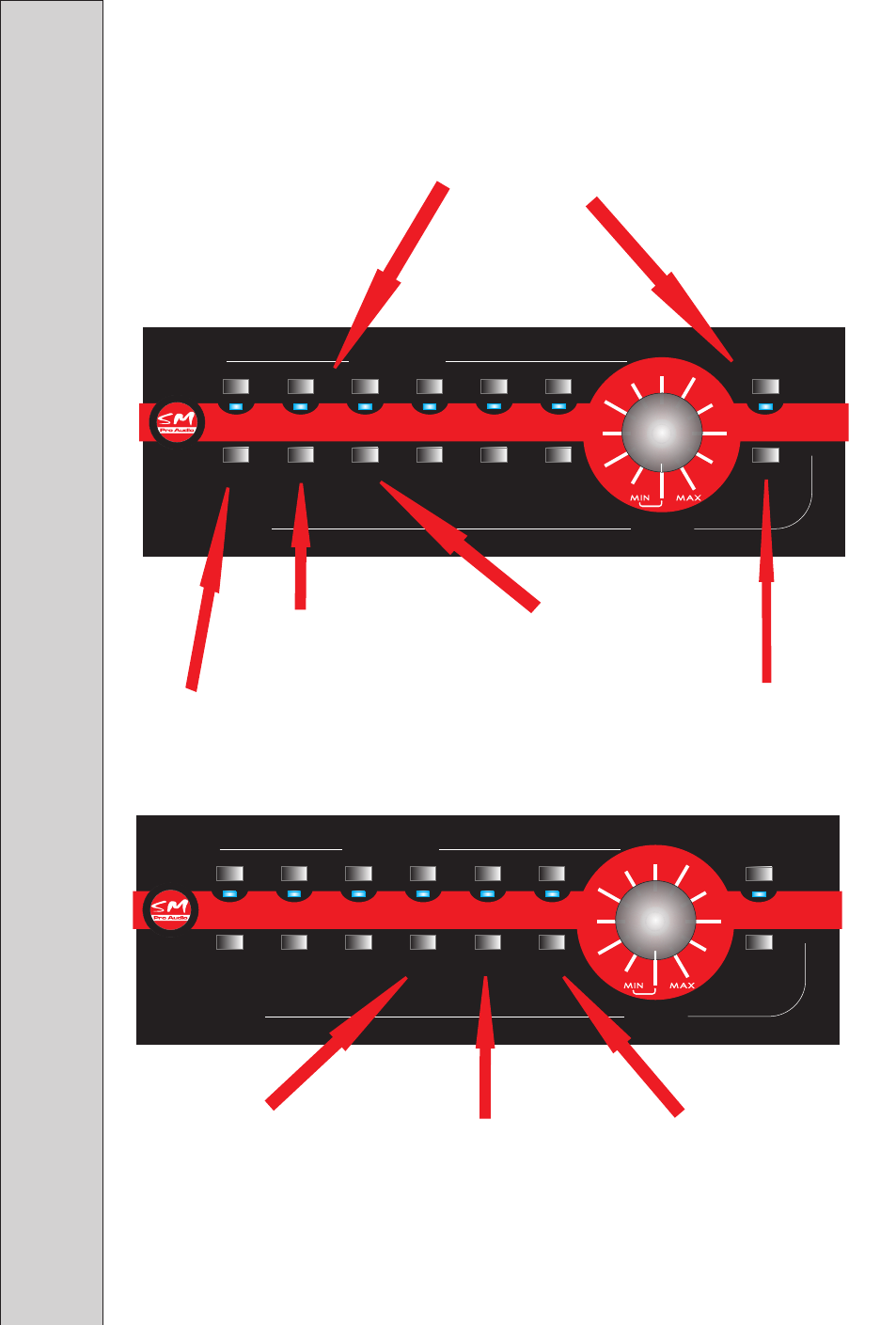

Output selector switches
Master
MPATCH 5.1
Passive volume control
monitor switcher
-20db PAD SL/SR-MONO L/R-MONO C+D A/B + C/D A+B ALL MUTE
LFE SR SL R C L Stereo Monitors
5.1 Surround Monitors
Master
MPATCH 5.1
Passive volume control
monitor switcher
-20db PAD SL/SR-MONO L/R-MONO C+D A/B + C/D A+B ALL MUTE
LFE SR SL R C L Stereo Monitors
5.1 Surround Monitors
Individual mute switches
Mute all outputs
Surround > Mono
Surround input selector
Stereo input selector
-20dB Pad
Surround or
stereo input selector
Stereo > Mono
D-Sub surround outputs 1-6
mirror D-Sub inputs 1-6 (pg. 6).
