Mpatch 5.1 OVERVIEW
The MPatch 5.1 is a multi-channel passive analog attenuator designed to
provide sonically transparent level control over surround-sound signals.
Housed in a desktop/rack-mountable chassis, the unit features a main
rotary volume controller utilizing discrete 0.5% resistors with a switched
mechanism—a design that offers superior accuracy over standard variable
resistor designs, especially at critical low levels.
An assortment of dedicated front-panel switches provide control over audio
sources and destinations as well as -20dB Pad and Mute, while the rear panel
sports a variety of I/O including 1/4”, XLR, RCA, and D-Sub.
The MPatch 5.1 supports control over both stereo and 5.1 multi-channel
surround-sound audio signals.
Installation
The MPatch 5.1 can sit comfortably on your desktop. Two metal ears are
included for adapting the unit for rackmount use.
Power for the LEDs is supplied via the AC cable. All circuitry in the MPatch 5.1
is passive; AC is not required for audio operation.
SM PRO AUDIO MP
a
tch 5.1

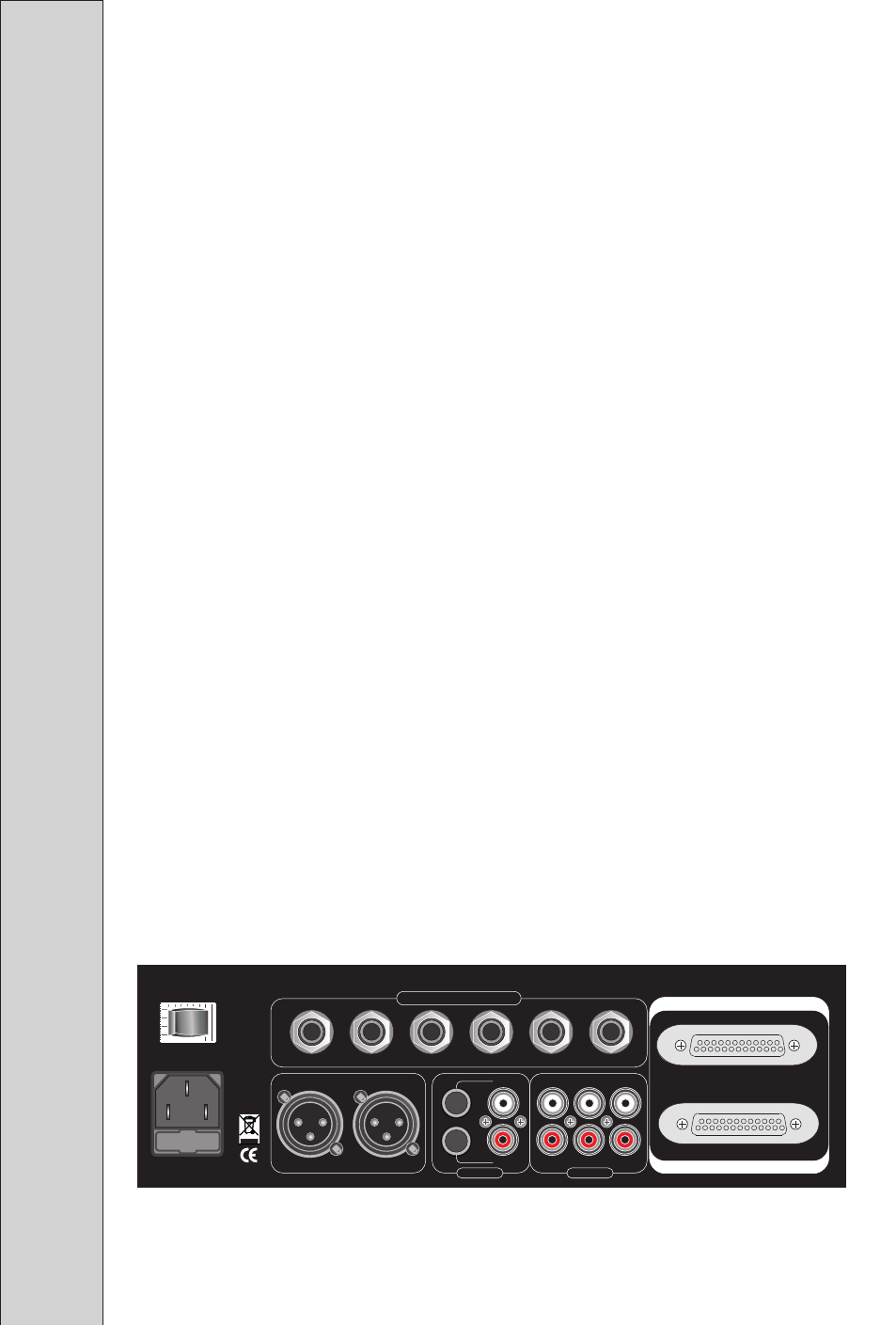

Mpatch 5.1 Rear Panel
Inputs
A: Balanced 5.1 input via 25-pin D-Sub connector
B: Unbalanced 5.1 input via RCA connectors
C: Balanced L/R input via 25-pin D-Sub connector
D: Balanced and unbalanced L/R input via RCA and 1/4” TRS
Outputs
L/R balanced XLR stereo outputs
6 x 1/4” TRS for surround 5.1 output
Switches
Individual MUTE switches for each stream of the 5.1 signal
Stereo output MUTE
All Mute
-20dB Pad
Simultaneous selection of multiple audio streams
Rotary Control
Custom-designed passive 5.1 volume controller with stepped 0.5% operation
SM PRO AUDIO MP
a
tch 5.1
Master
MPATCH 5.1
Passive volume control
monitor switcher
-20db PAD
SL/SR-MONO
L/R-MONO
C+D
A/B + C/D
A+B
ALL MUTE
LFE
SR
SL
R
C
L
Stereo Monitors
5.1 Surround Monitors
Power Input
OFF
ON
POWER
L
R
LS
RS
LFE
C
L
R
Balanced
Left
Right
L
R
LS
RS
C
LFE
INPUT B
INPUT D
Stereo Speaker Outs
Surround Speaker Outputs
INPUT A+C
SLAVE OUTPUT
Balanced input and Link to output
(90-240V ac)
