5

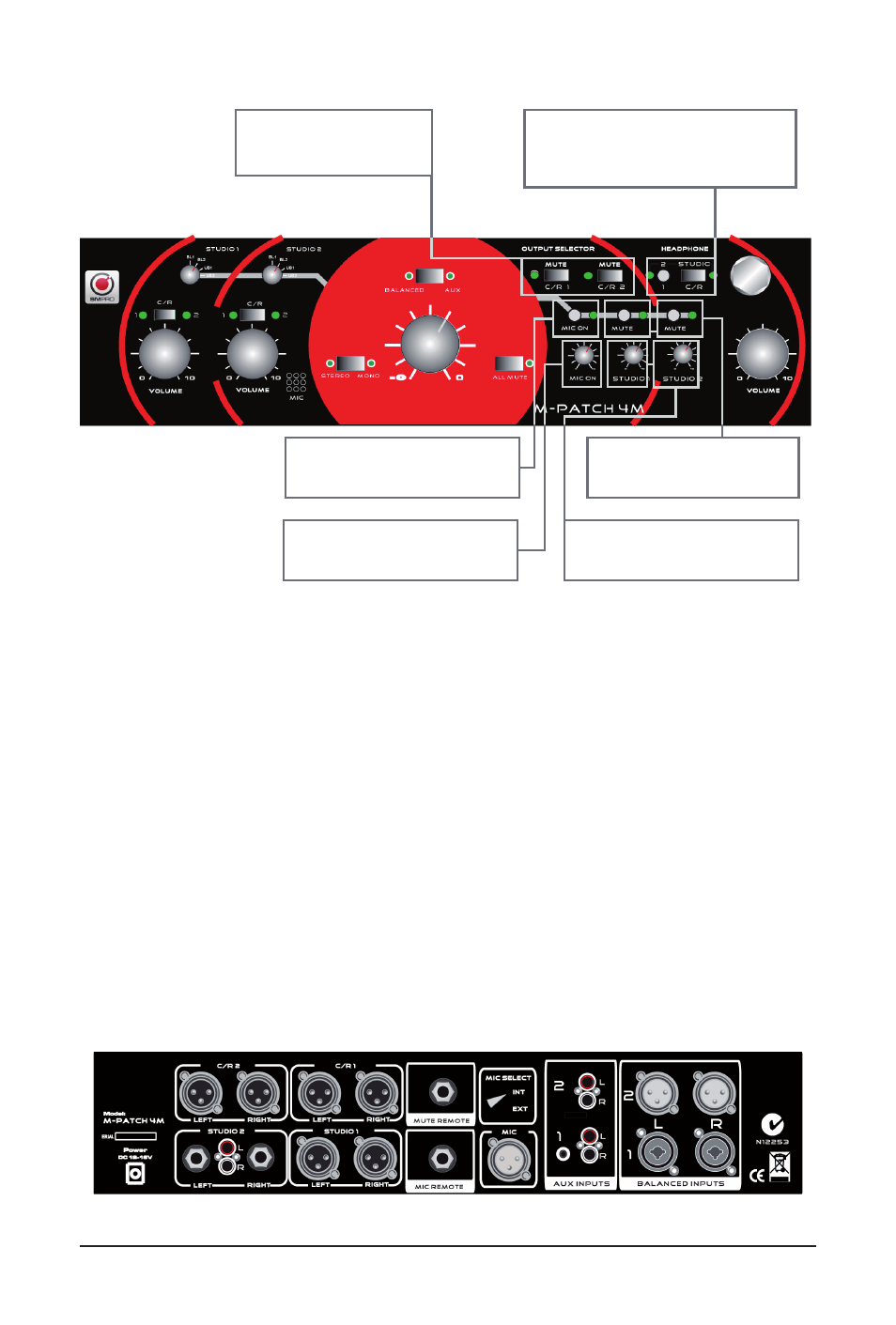

M-PatCH 4M REAR PANEL
Your M-Patch 4M is designed to accommodate a wide variety of balanced and unbal-
anced audio connections, allowing for a great deal of fl exibility in adapting the unit for
use in almost any studio environment.
Inputs
• Dual L/R Combination Balanced XLR – 1/4” TRS
• Dual L/R Unbalanced RCA
• Dual 1/8” (3.5mm) TRS
• Balanced XLR Talkback Microphone (w/ Built-In Mic Preamplifi er)
• TS Talkback Microphone Remote Activator (w/ INT/EXT Selector Switch)
• TS Mute Function Remote Activator
Outputs
• Dual L/R Balanced XLR Control Room Out
• L/R XLR Balanced Studio Out
• L/R 1/4” Unbalanced TS Studio Out
• L/R Unbalanced RCA Studio Out
• 1/8” (3.5mm) TRS Studio Out
Mutes the control room
outputs 1 and/or 2.
Mic On: Switches the talk-
back microphone on or off.
Adjust the volume of the
talkback microphone.
Adjusts the volume of the
Studio 1/Studio 2 outputs.
Mutes the outputs of the
outputs Studio 1/Studio 2.
Here you choose what to hear via
the headphone out: Studio 1 or 2
or Control Room 1 or 2.
