2
FF 120T • Setup Guide (Continued)

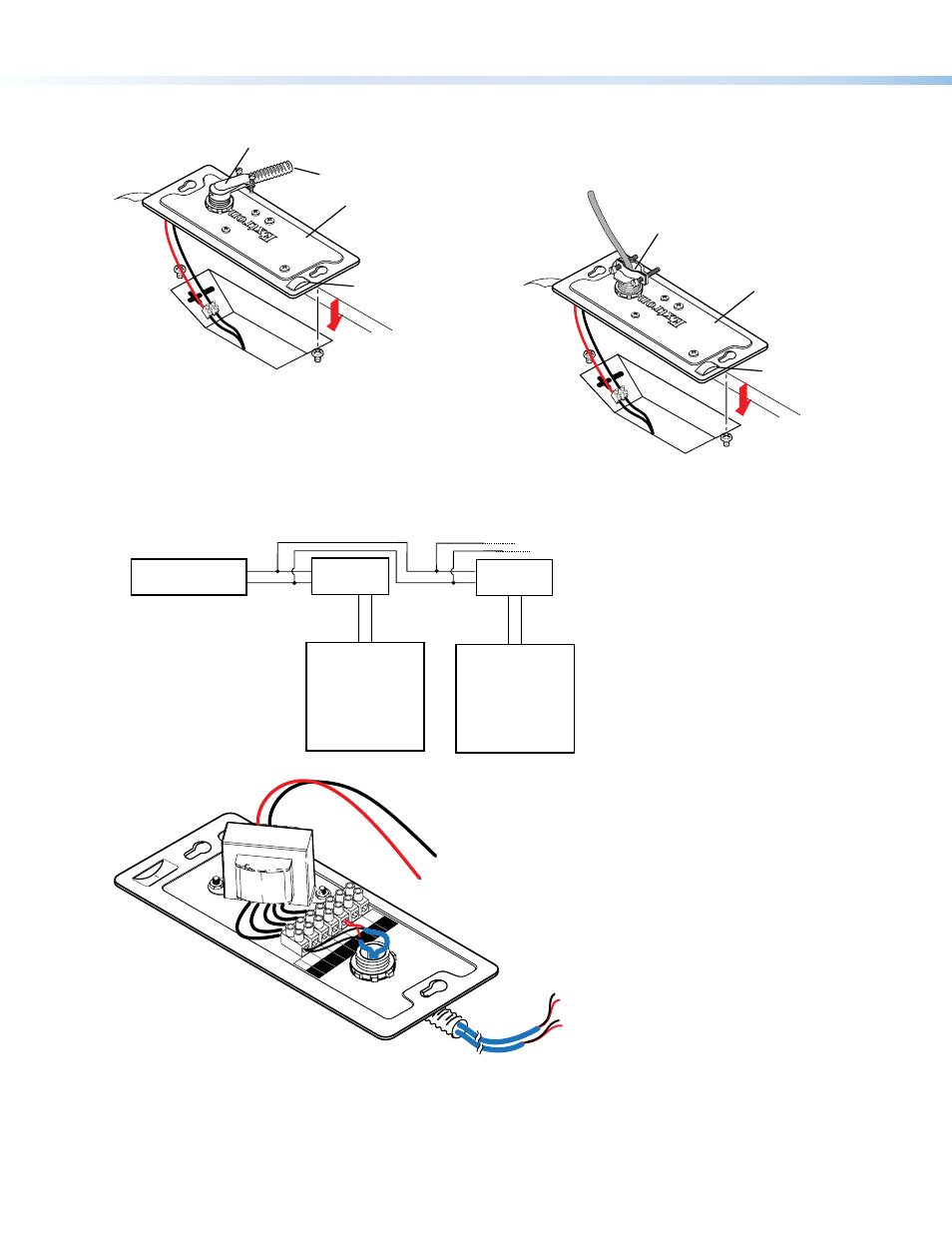

5. Using Flexible Conduit — When using flexible conduit, insert the conduit into the cover plate opening using an appropriate
conduit adapter, and secure the conduit to the plate as shown below.
Flexible Conduit Adapter
Flexible Conduit
Transformer Cover Plate
Secondary Attachment
Point
Rear of Speaker
When using speaker wires without a conduit, secure the cable clamp
adapter (included) to the transformer cover plate and insert the wires
through the clamp. Tighten the screws as shown at right.
6. Distributed audio system (70 V or 100 V) or direct connection —
• if wiring a 100 V or 70 V distributed system and using the transformer, proceed to step 7.
• if bypassing the transformer and wiring directly from the amplifier, proceed to step 9.
7. Connect cables from the amplifier to the transformer on the FF 120T transformer cover plate.
Amplifier
70 V or 100 V Distribution System
(through the transformer)
FF 120T
Additional FF 120Ts
can be attached to
to the tap connector.
See step
7f.
Transformer Transformer
FF 120T
Black (-)
To Additional
Speaker Red (+)
Red (+)
Black (-)
From Amplifier
(70V/100V)
(Red) To Speaker
(+) Terminal
(Black) To Speaker
(-) Terminal
NC
1 W
2 W
4 W
8 W
16 W
COM 70 V
100
V COM
NC
16 W
8 W
4 W
2 W
1 W
a. Pull the wires from the amplifier through and out of the conduit, if a conduit is used.
b. Route the two wires from the amplifier through the cover plate hole to the transformer side. See the wire gauge table on
page
1.
c. Strip 3/16" (5 mm) from the wire ends and keep the wire end strands together by twisting them. Do not tin the wires.
Cable Clamp Adapter
Transformer Cover Plate
Secondary Attachment
Point
Rear of Speaker
