Measurement through a concrete deck with
45 - 60 ° edge cutoff.
Min. diameter (D) =
sensor spread
+ 50 %
Measurement through a pipe for foam protection.
when measuring on liquids prone to build up foam on the
surface, it can become necessary to measure through a
pipe, since the build up of foam rarely will occur inside the
pipe.
Measurement through a pipe for foam protection.

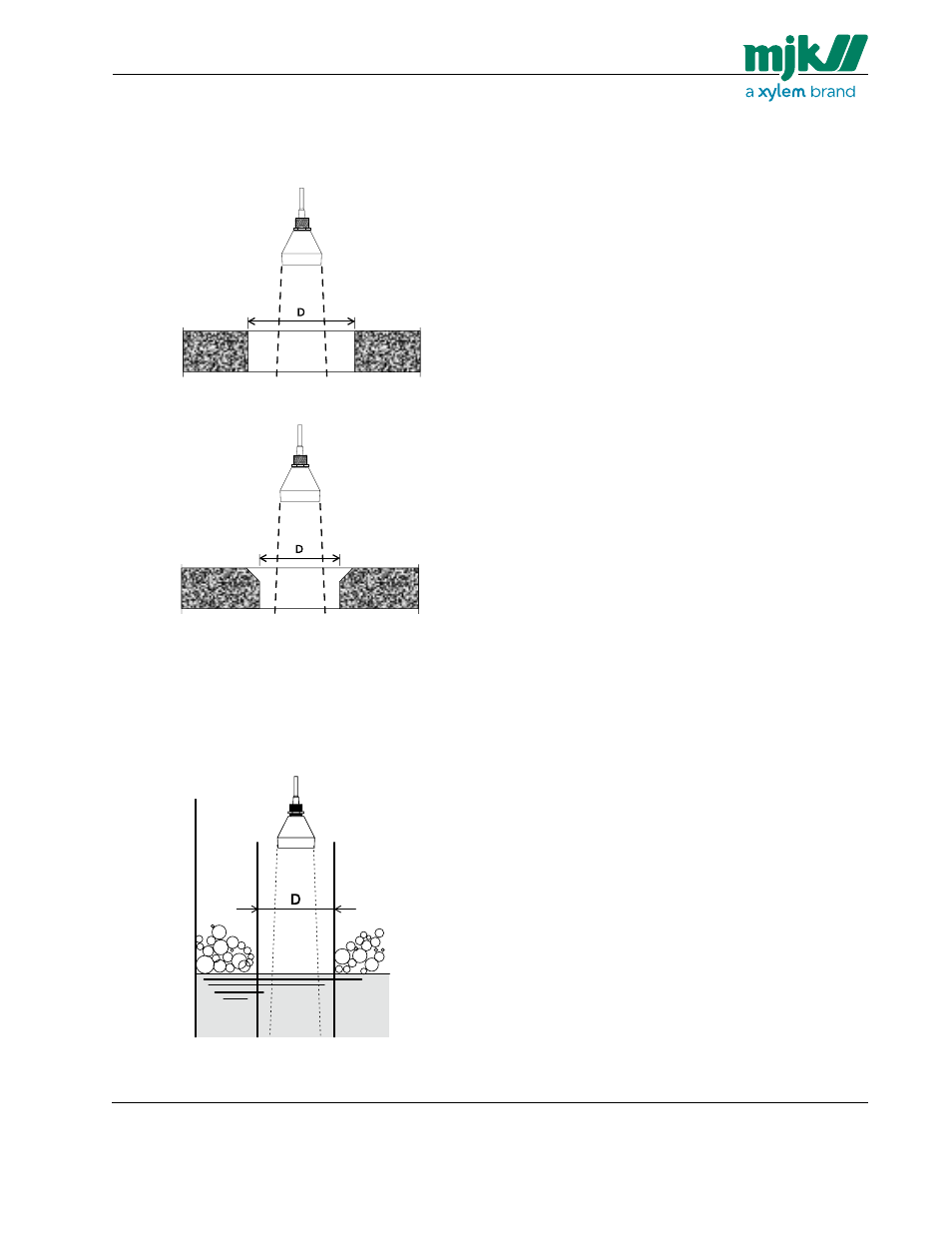

Measuring through a concrete deck
when the ultrasonic sensor is measuring through a con-
crete deck, the dimension of the opening should be made
as shown below: (See table 1 for the sensor spread.)
Min. diameter (D)
= sensor spread +
100 %
Measurement through a concrete deck with
sharp edge.
Min. diameter (D)
= sensor spread +
100 %
