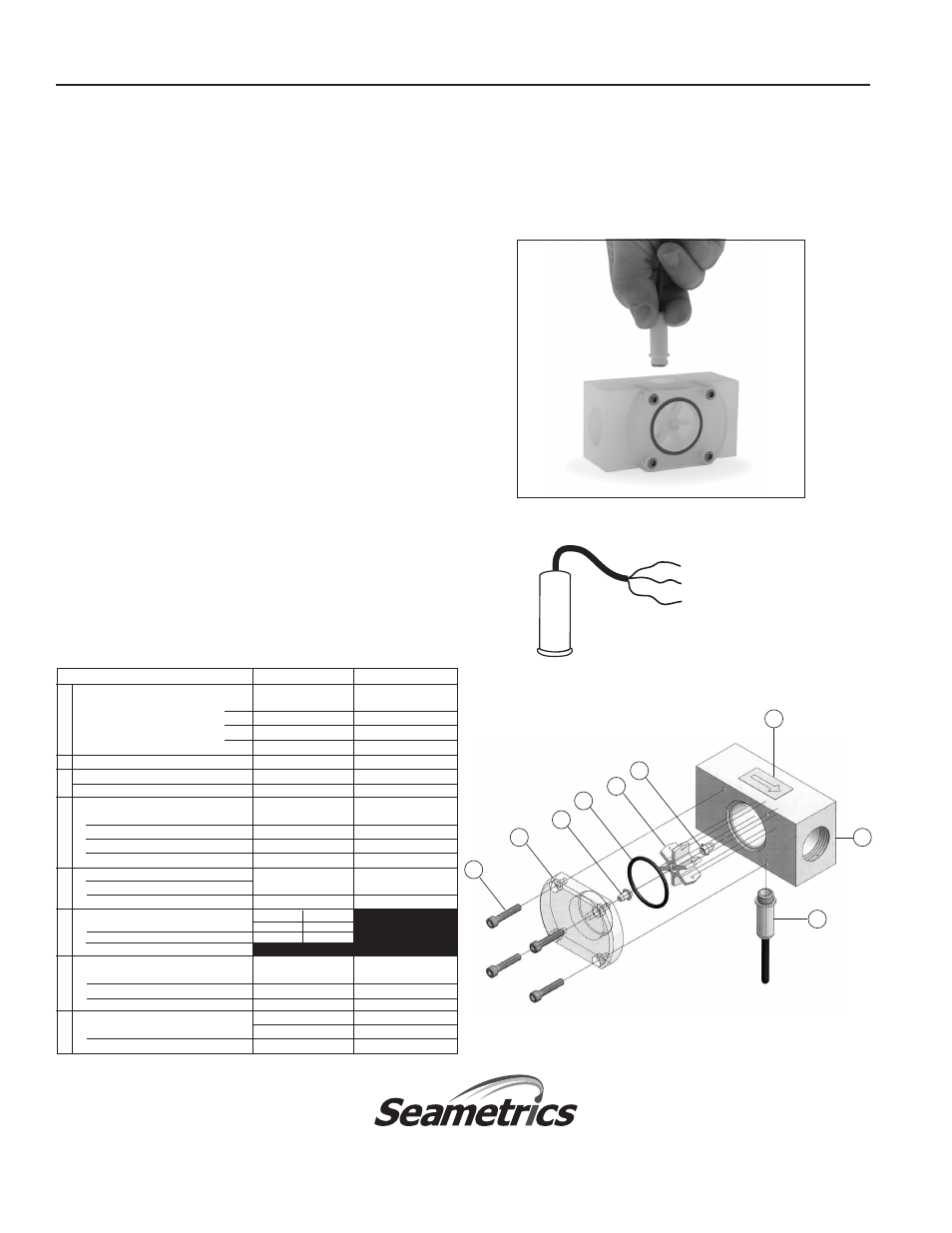

SPX/SPT PARTS LISTING
REPAIR, MAINTENANCE
REPAIR
Rotor Replacement.
There is only one moving part to this
meter. The bearings are made of ruby, which rarely wears
out or needs replacement unless they have been physically
damaged by severe shock. The shaft is integrally molded into
the rotor, and shaft and rotor are replaced as one part. (You
may wish to replace the bearings, using the bearing removal
tool, while the meter is disassembled for rotor replacement).
To replace the rotor, disconnect the meter and remove the
four screws that hold the cover in place. Lift the cover and
remove the rotor (see parts diagram below).
When putting in the new rotor, be sure that the ends of the
shaft are in both bearings before tightening the cover. The rotor
can be easily dropped into the bottom bearing. Starting the
shaft into the upper bearing requires a bit of care. It is easier
if the rotor is spinning, which can be done by lightly blowing
into a port. When the upper bearing plate drops into place,
hold it down and check for free spinning (by blowing lightly)
before replacing the cover. Check that the O-ring is in its seat
on the bearing plate before replacing the cover. Replace the
cover, insert the four cap screws and tighten.
Sensor Replacement.
The sensor ordinarily does not need
(BLACK) Power (-)
(WHITE) Signal
(RED) Power (+) 6-24 Vdc
SES SENSOR CONNECTION
SPX SPT
1
Body
-038
16471
25104
-050
16472
25103
-075
16473
25102
-100
16474
25101
2
Flow Direction Label
19036
19036
3
Bearing Assembly (2 required)
16772
16772
Bearing Removal Tool
(not shown)
26108
26108
4
Rotor with Shaft
Kynar/ceramic (2 magnet)
11127
11127
Kynar/carbide (2 magnet)
11129
11129
Kynar/ceramic (6 magnet, high res)
11132
11132
Kynar/cabide (6 magnet, high res)
11130
11130
5
O-Ring
EPDM
25081
Teflon-coated Viton®
31403
6
Cover
Before 5/05 After 5/05
Before 5/05 After 5/05
Polypro
*See Note
31007
Acrylic
*See Note
31006
TFE Teflon
26174 31005
7
Cover Screws (4 required)
Hexscrew
25370
Screw (use with hexnut 07705)
07685
Hexnut (use with screw 07685)
07705
8
Sensor
Standard
26310
26310
Micropower
29953
29953
Reconnect the sensor according to the diagram below.
2
1
8
3
4
5
3
6
7
Page 4
Not availabile
Not Available
*Note: Contact factory for price and availablity
