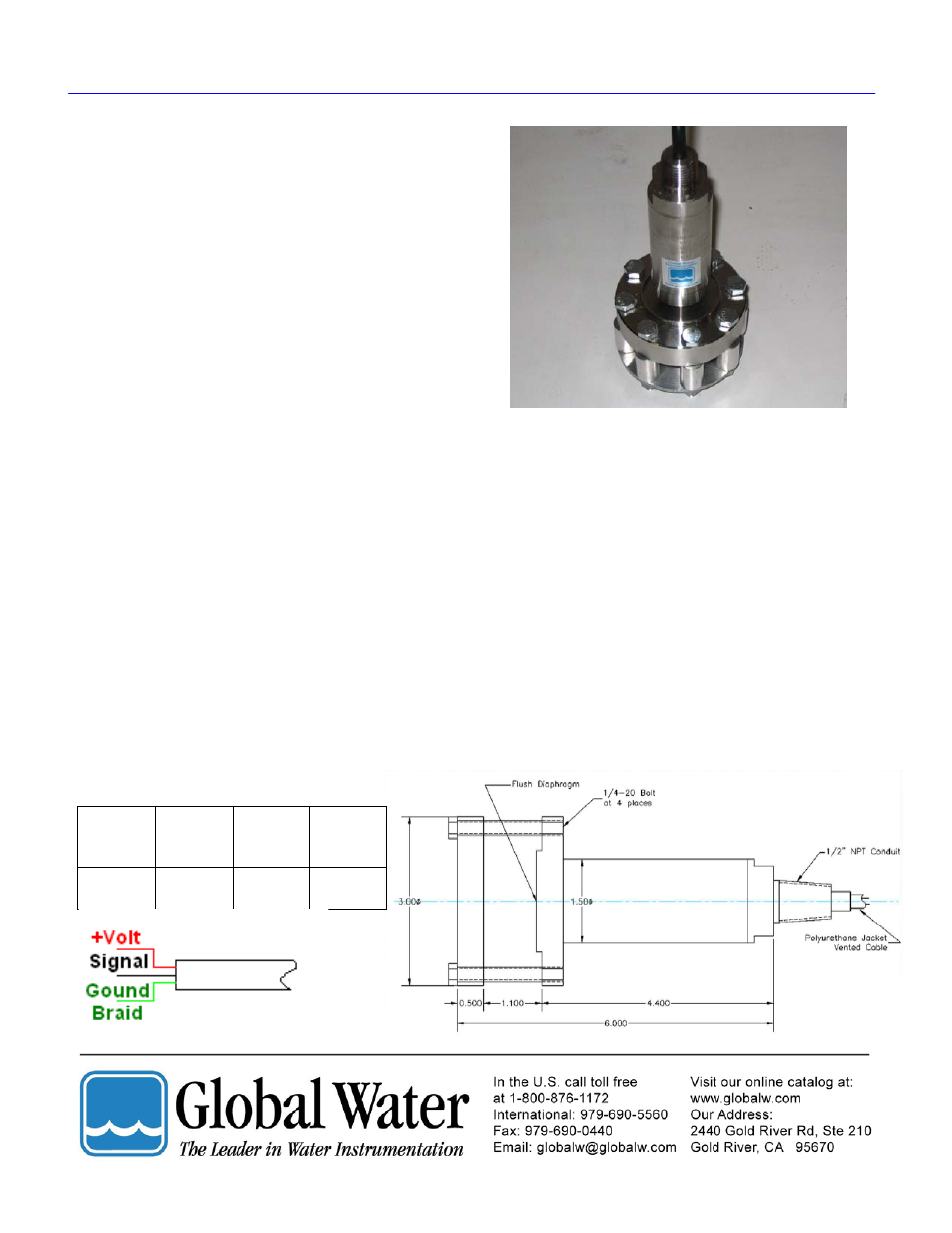

Xylem WL430 SEWAGE LIFT STATION WASTEWATER LEVEL SENSOR - Manual

Standard Features:
¾ UL listed
¾ Flush clog-free sensor; 316L SST
¾ Enhanced internal surge and lightning protection
¾ ± 0.5% FSO Static Accuracy
¾ 40 ft. polyurethane cable, vented and shielded
¾ Double-sealed submersible cable exit;
¾ 200 lb. tensile strength
TECHNICAL SPECIFICATIONS
PERFORMANCE
Static Accuracy: ± 0.5% FSO ( BFSL, RSS)
(combined effects of non-linearity, hysteresis & repeatability)
Repeatability: ± 0.1% FSO
Temperature Effects: ± 1.5% FSO over comp
range
(combined effects of Zero & FSO with reference at 70ºF)
Long Term Stability: ± 0.25% FSO per year
MECHANICAL
Pressure Range: 0-10 psi, 0-15 psi
Proof Pressure: 2x Full Scale
Burst pressure: 5x Full Scale
Materials: 316L SST plus cable
Pressure Port: Flush mount per outline
Electrical Connector: 1/2”-NPT Male submersible
conduit fitting with 40ft of polyurethane cable
Dimensions:
Per outline
Weight: Nominal 20 oz
Compensated Temp Range: 20 to 170°F
Operating Temp Range:
0 to 200°F
ELECTRICAL
Excitation: 8 - 38 Vdc
Output: 1 - 5 Vdc or 4–20 mAdc
Zero Balance:
± 1% FSO
FSO Setting: ± 1% FSO
Resolution: Infinite ( ±.001% FSO)
Response Time: < 5mS
Insulation Resistance: 1000 MO @ 50 Vdc
Reverse Polarity:
Protected
Warm-Up: < 10 mS
Power Supply Effect: ± .002% FSO per V input
EMI/RFI:
Internal Filtering
Lightning Protected: MOV and dual gas discharge
tube
Short Circuit Protected: Up to 40 Vdc
Pressure
Psig
Level In.
of Water Level Ft.
of water
Max.
Pressure
psig
0-10 psi 276.8 23 20 psi
0-15 psi 415.2 34.6 30 psi
Quick Reference
WL430-xxx Waste Water Sensor
Rev. E
