Global water – Xylem 378 TEMPERATURE CONTROLLER User Manual
Page 4
Global Water
800-876-1172
• globalw.com
- 4 -
III) Mounting procedure

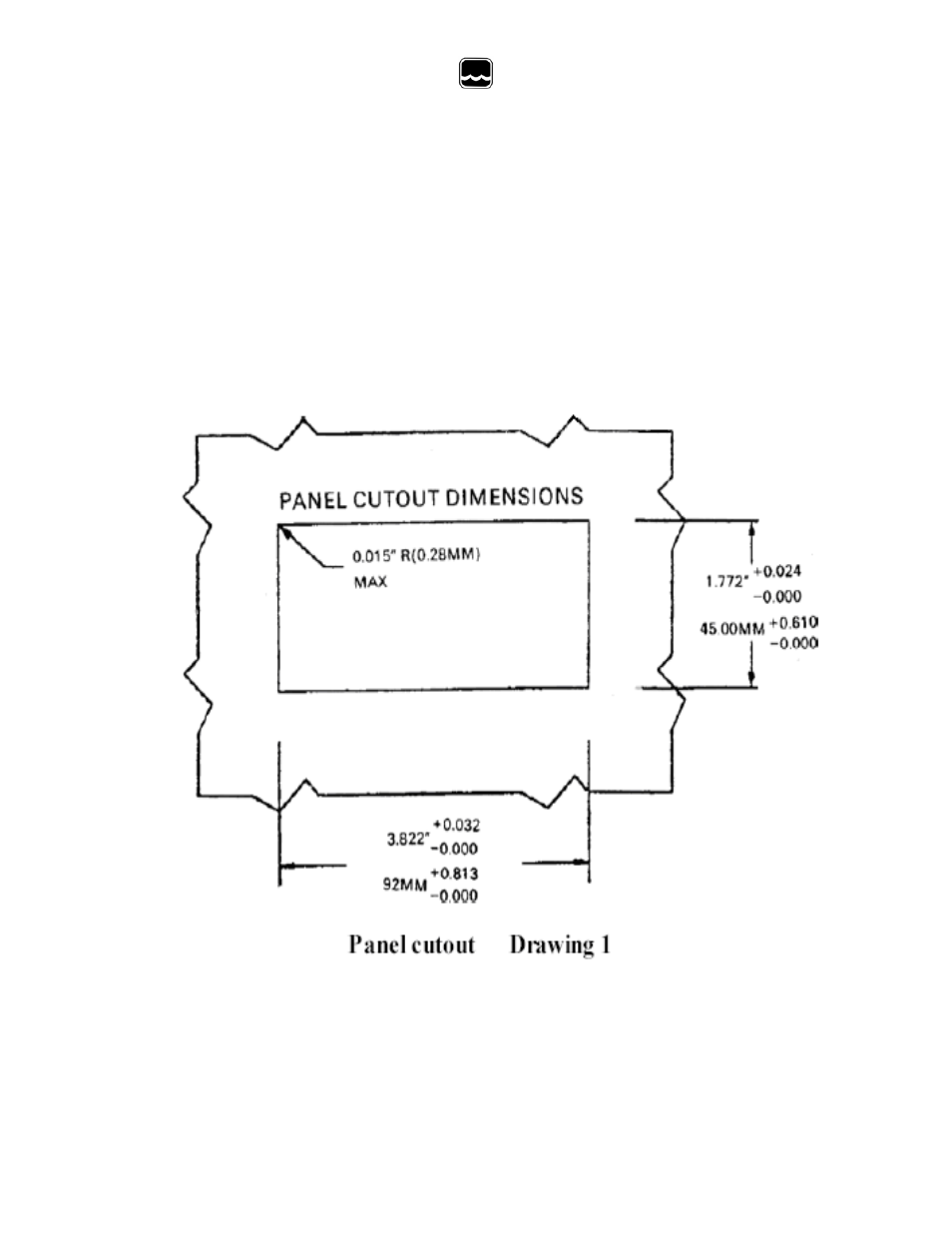

a) Make a cutout on any panel, with a thickness of 1/16 inch (1.5mm to 3/8 inch
(9.5mm)). Refer to drawing 1.
b) Remove the mounting brackets assembly from the panel meter and insert the
panel meter into the cutout. Refer to drawing 2.
c) Replace the mounting brackets assembly onto the panel meter and fasten the
mounting screws to secure the panel meter to mounting panel .Refer to drawing 3.
