VI) Measurement range select

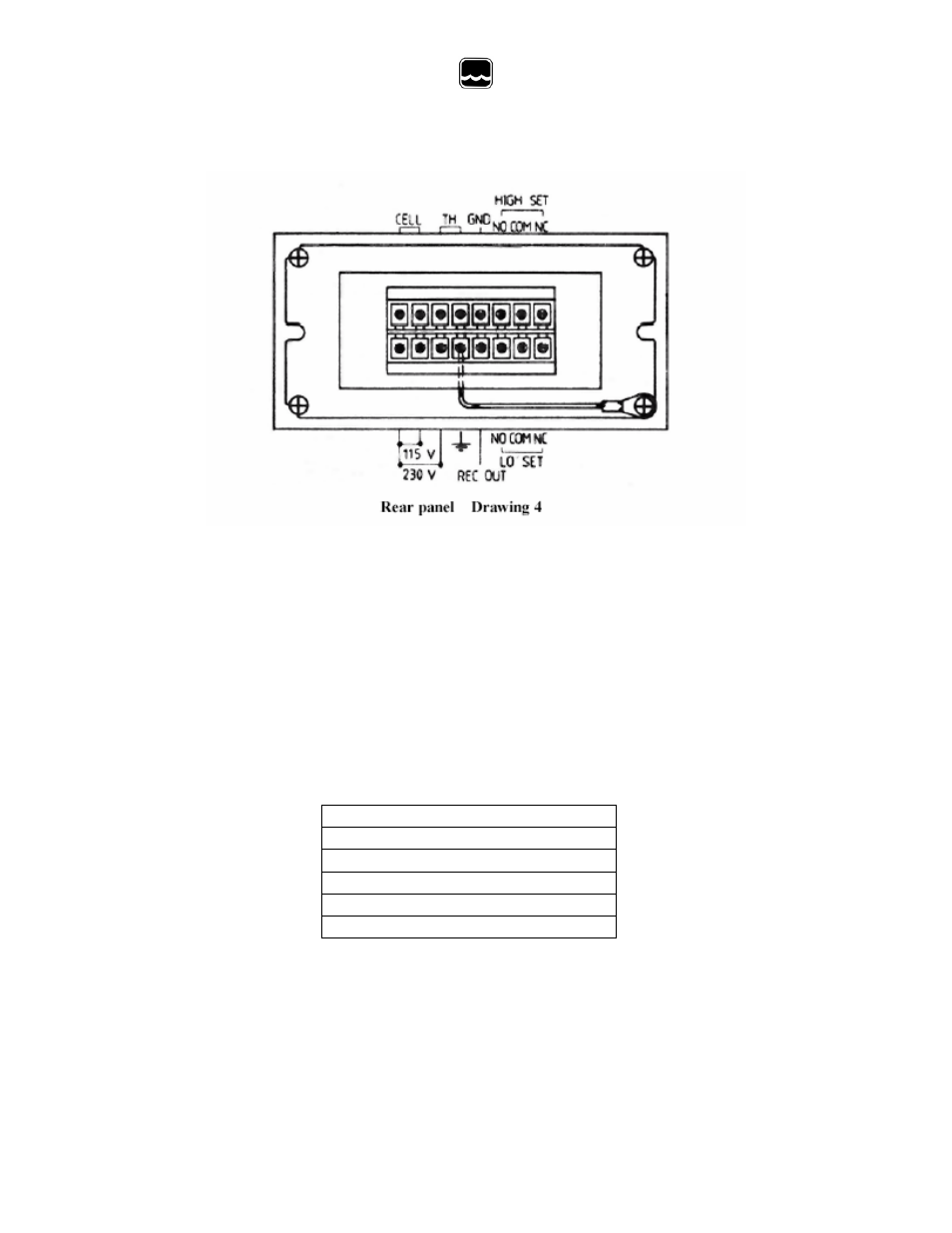

a) Loosen the one earth ground screw on the rear of the instrument. Refer to
Drawing 4. Loosen the screw on the front panel. Refer to Drawing 5 (page 7.)
b) Push the rear panel toward the front of the instrument to expose the internal DIP
switch .Set the DIP switch according to Table 1 for the desired measure and
control range.
c) Push the front panel back into the metal case and tighten the screw on the front
panel. Replace the screw on the rear panel.
Range
0 to 200 mS/cm
0 to 99.9 mS/cm
0 to 9.99 mS/cm
0 to 999 µS/cm
Note: 1=ON 0=OFF
