Meter description – Xylem EC510 PORTABLE CONDUCTIVITY METER KIT User Manual
Page 4
EC500 V2.1 7/13/05
4
EC500
7
RENEW
6
pH

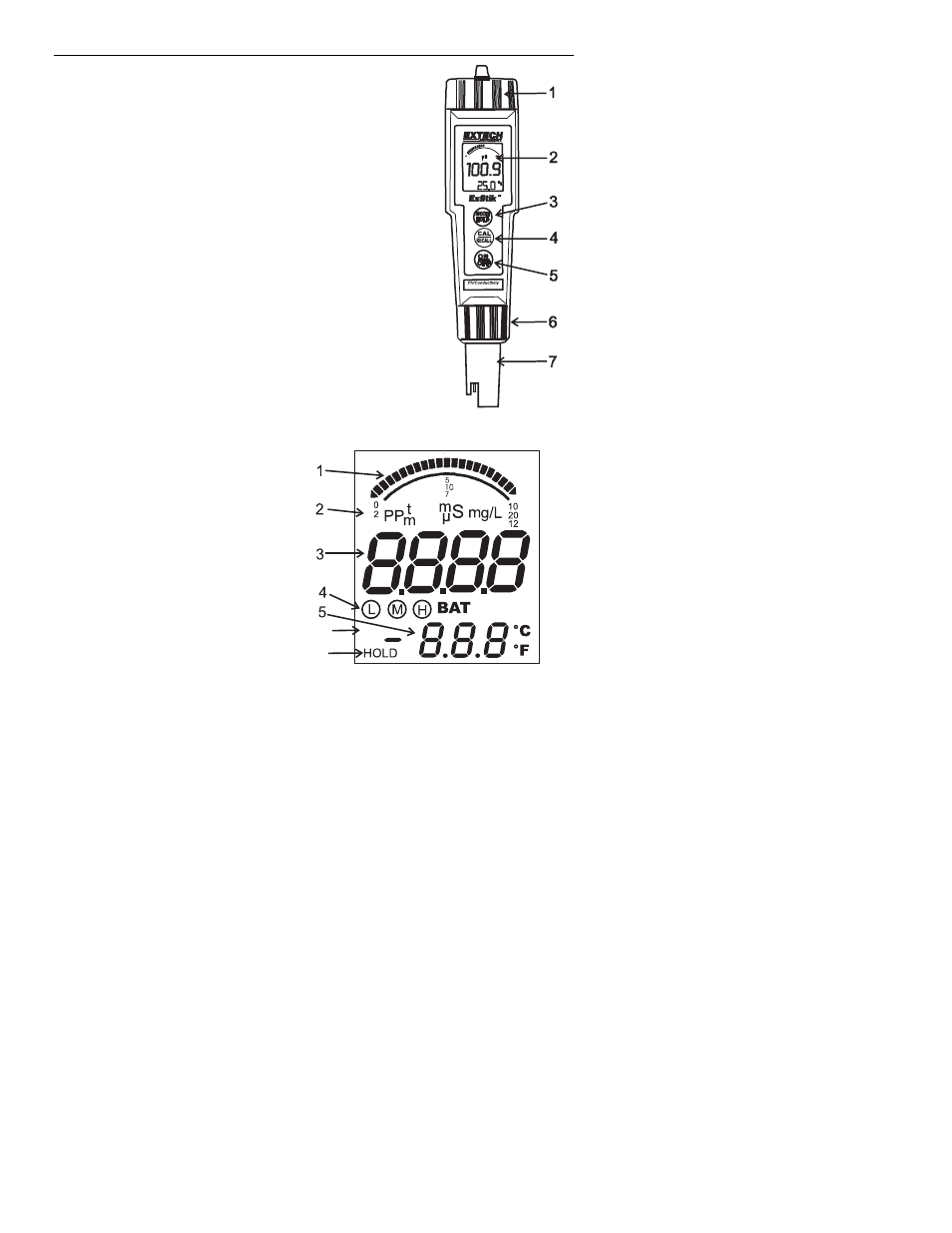

Meter Description
Front Panel Description
1. Battery compartment cover
2. LCD
Display
3. MODE/HOLD
button
4. CAL/RECALL button
5. ON/OFF
button
6. Electrode
Collar
7. pH/Conductivity
Electrode
(Note: The Electrode cap is not shown)
LCD Display
1. Bargraph
display
2. Measurement
units
3. Main
display
4. Range calibration and
low battery indicators
5. Temperature
display
6. Renew
indicator
7. Reading hold indicator
