YSI Data Scout Advanced User Manual
Page 103
YSI Incorporated
Data Scout Advanced
99

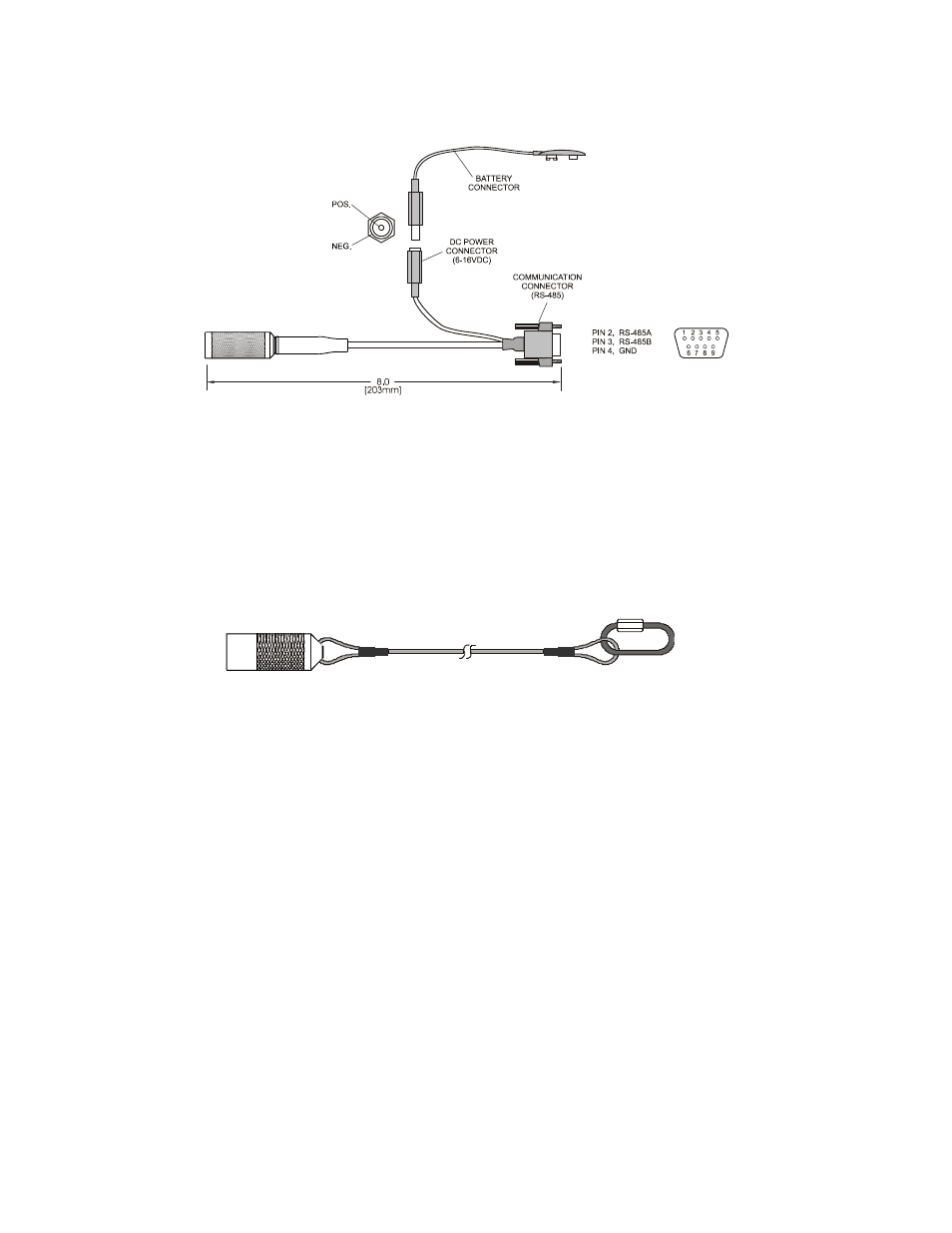

Figure A-5 shows the 770 Non submersible Quick Disconnect Communication Cable. It includes an RS-485
communication connector, DC power connector, and battery connector. The 770 is not intended for field deployment.
Model 770
Figure A-5
Figure A-6 shows the Suspension Wire Assembly, Model 750 and 760. The Suspension Wire is intended for use with
absolute transducers to suspend the unit during deployment. This assembly includes a stainless steel or titanium backshell,
carabiner, and Teflon
®
coated stainless steel suspension wire.
Suspension Wire
Model 750 and 760
Figure A-6
