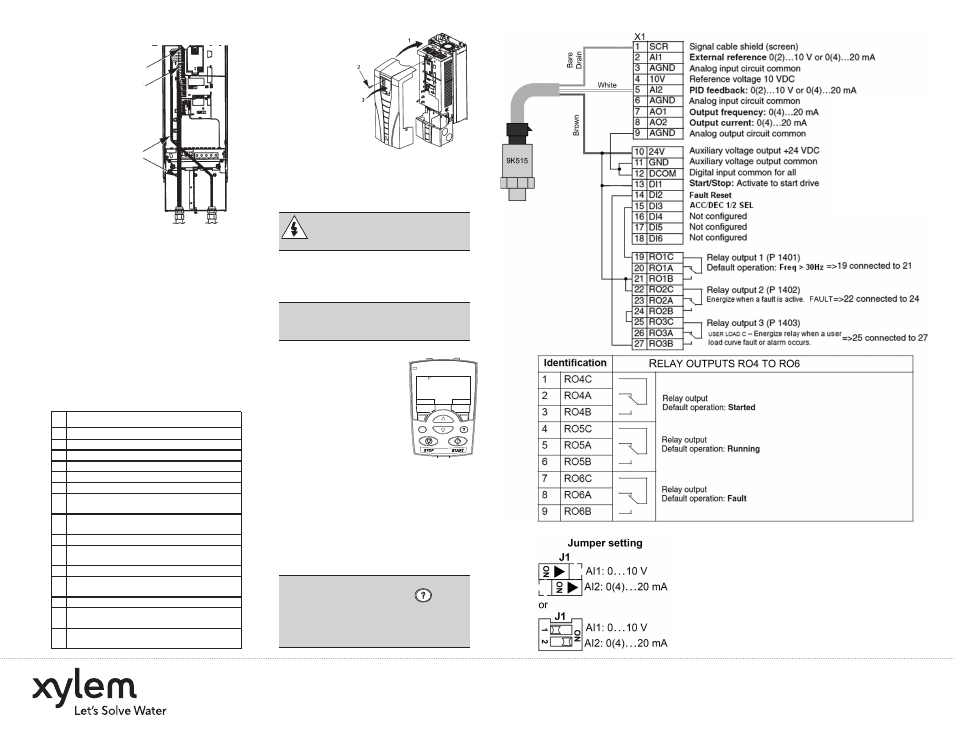

Wiring the Transducer
1. Route the
transducer
cable
through
the conduit.
2. Strip the
transducer
cable
sheathing
and twist
the screen
wire.
3. Connect the screen
wire of the
transducer to
terminal X1-1.
4. Connect the power supply wire of the
transducer (red or brown) to terminal
X1-10.
5. Connect analog output wire from the
transducer (white or black) to X1-5. See
chart in next column.
6. Install the conduit/gland box cover (1
screw).
1 Digital input impedance 1.5 kΩ. Maximum voltage
for digital inputs is 30 V.
Check Installation
Before applying power, perform the follow-
ing checks.
√ Check
Environment conforms to specifications.
The drive is mounted securely.
Proper cooling space around the drive.
Motor and driven equipment are ready for start.
Floating networks: Internal RFI filter disconnected.
Drive is properly grounded, with pump/motor.
Input power (mains) voltage matches the drive
nominal input voltage.
The input power (mains) terminals, U1, V1, W1,
are connected and tightened as specified.
The input power (mains) fuses / mains switch installed.
The motor terminals, U2, V2, W2, are connected
and tightened as specified.
Motor cable is routed away from other cables.
NO power factor compensation capacitors are
connected to the motor cable.
Control terminals are wired and tightened as specified.
NO tools or foreign objects (such as drill shavings) are
inside the drive.
NO alternate power source for the motor is connected
– no input voltage is applied to the output of the drive.
5
3
1
DIR MENU
REM 11.1%
LOC REM
40.2 PSI sp
0.0 PSI ac
0.0 HZ
Reinstall the Cover
1. Align the cover
and slide
it on.
2. Tighten
the captive
screw.
3. Reinstall the
control panel.
Apply Power
Always reinstall the front cover before turn-
ing power on.
WARNING! The SPD PLUS will start
up automatically at power up, if the
external run command is on.
1. Apply input power.
When power is applied to the SPD PLUS,
the green LED comes on.
NOTE! Before increasing motor speed,
check that the motor is running in the
desired direction.
Start-Up
Run the Start-Up Assistant
to configure the motor and
system parameters. If this is
the first time the drive has
been powered, the display
will prompt the user if they
would like to run the Start-
Up Assistant. Select Yes to
run the Start-Up Assistant.
If this is not the first time the drive has been
powered, follow the steps below:
1. From the Main Screen press MENU to
enter the MENU screen.
2. Select QUICKSTART
3. Select Start-Up
4. Follow the menu prompts to configure
the drive.
NOTE! For common parameters and
menu items, use the Help Key to
display descriptions. If you encounter
Alarms or Faults, use the Help Key or
refer to the Diagnostic section of the
instruction manual.
