Xylem IM083 R05 Model HMS - Manual (Page 6)

6

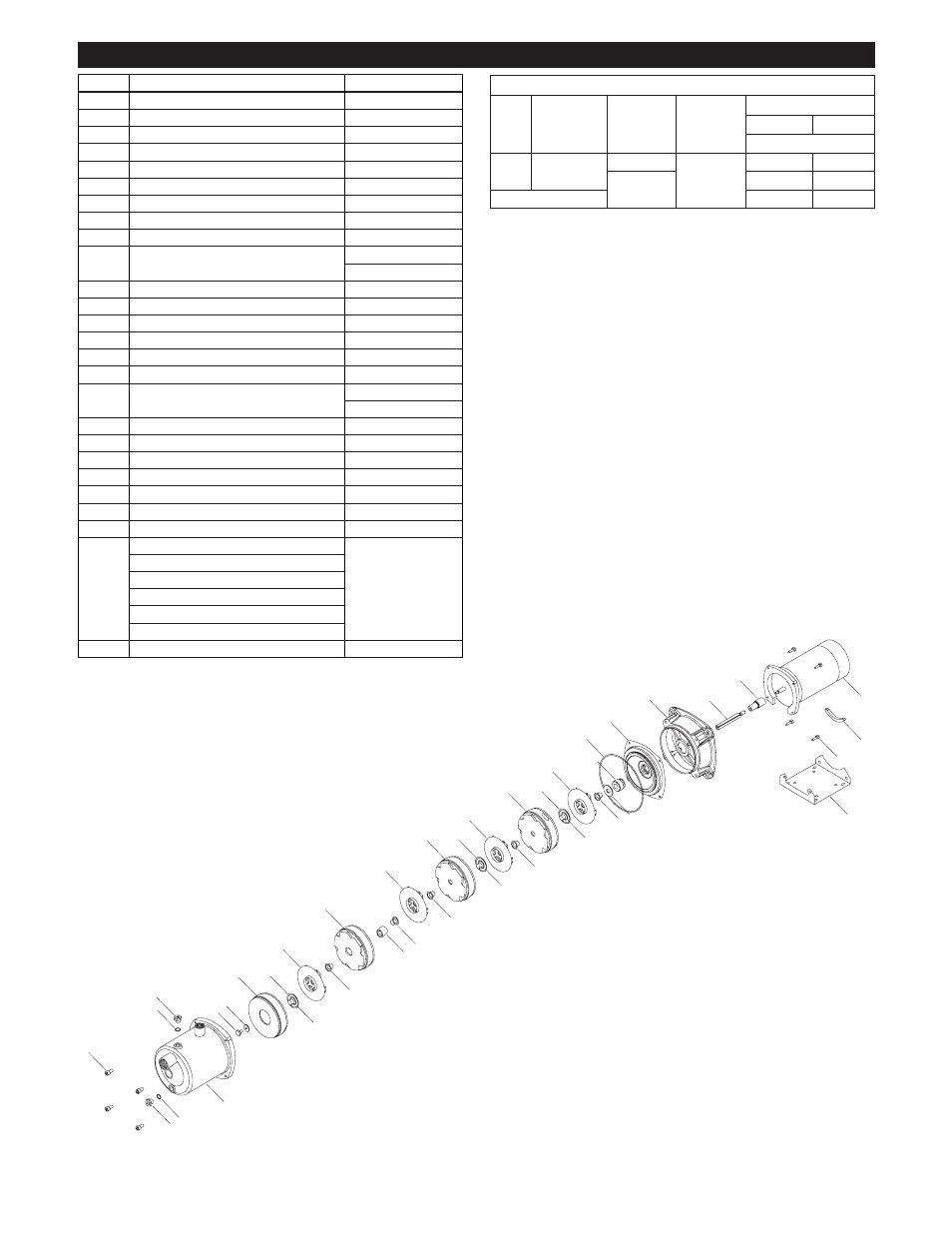

Parts List
Item No. Part Description Material
1 Screw, casing 400 SS
2 Pump, casing with plug and Viton o-rings 316L SS
3 O-ring, fill and drain plug Viton
4 Fill and drain plug 315 SS
5 Impeller bolt 316 SS
6 Impeller lock washer 316 SS
7 Diffuser cover, first stage 316L SS
8 Impeller spacer 316L SS
8A* Impeller spacer (Intermediate) 316L SS
9 O-ring, impeller
EPR
Optional Viton
10 Impeller 316L SS
11 Diffuser, intermediate 316L SS
11A* Diffuser with bushing 316L SS
12 Diffuser, last stage 316L SS
13 Washer, mechanical seal 316 SS
14 Mechanical seal Varies
15 O-ring, casing
EPR
Optional Viton
16 Seal housing 316L SS
17 Motor adapter Aluminum
18 Shaft, pump 316 SS
19 Shaft coupling 316 SS
20 Foot, pump Steel
21 Screw, motor to motor adapter Steel
22 Spacer Rubber
Motor, 1 PH ODP
Motor, 3 PH ODP
23
Motor, 575 V ODP
303 SS
Motor, 1 PH TEFC
Motor, 3 PH, TEFC
Motor, 575 V TEFC
24* Shaft Sleeve Tungsten Carbide
* Item not used on 2 stage pump
1
2
3
4
3
4
5
6
7 9
8
9
8
8
8
10
11
12
10
9
8
16
15
14
13
8
10
17 18
19
20
21
23
22
8A
8A
11A
24
10
Mechanical Seal Application Chart
Part No.
Rotary Stationary Elastomer Metal Parts Before After
SN: F0264029 •
Carbon Silicon Carbide
EPR – 10L35
Viton
316SS 10L32** 10L36
Silicon Carbide – 10L34
• For pumps used in conjunction with the AquaBoost pumping system,
use SN F0265181.
** Replacement for 10L29, 10L30 and 10L31
