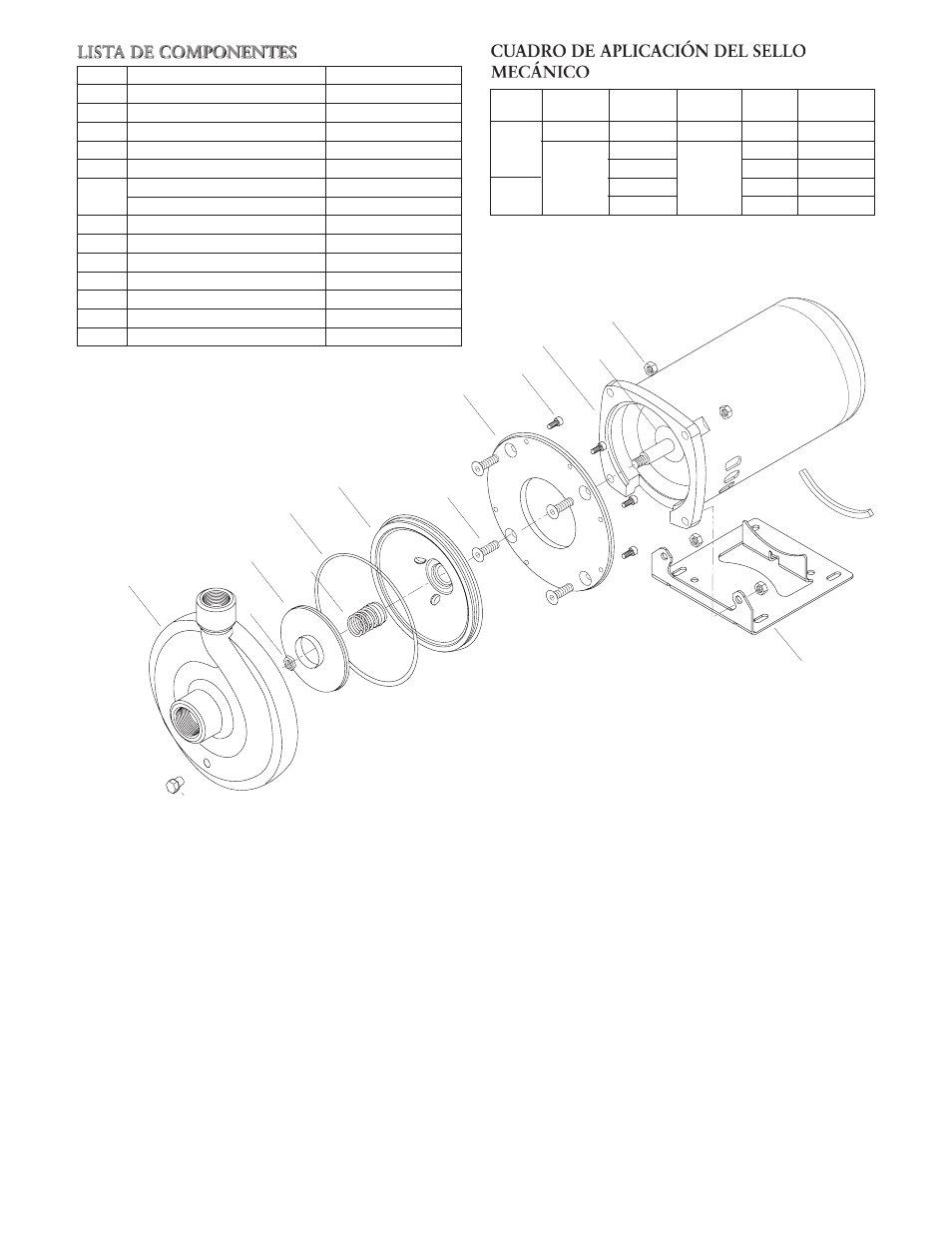

Page 13
13
357
123
MOTOR
370
108
371
184
513
383
101
304
240
100
Rotativo Estacionario Elastómero Partes Parte N°. Anillo en O
metálicas
de la carcasa
Cerámica
BUNA
A.I. 18-8
10K10
BUNA
Carbón
EPR
10K18
EPR
Viton
Acero 10K55 Viton
Sil. Carb.
EPR Inox. 316 10K81
EPR
Sil-Carb.
Viton
10K62
Viton
LISTA DE COMPONENTES
Ítem No. Descripción
Material
100
Carcasa
Hierro fundido
101
Impulsor
Acero inox. 316L AISI
108
Adaptador del motor
Acero
123 Deflector
BUNA-N
184
Cubierta del sello
Acero inox. 316L AISI
240
Soporte del motor
Acero
Ranura de goma
Goma
304
Contratuerca del impulsor
Acero inox. 316 AISI
357
Tuerca, motor
Acero inox. 300 AISI
370
Tornillos de cabeza hueca, carcasa
Acero inox. 410 AISI
371
Bulones, motor
Acero galvanizado
383
Sello mecánico
Ver cuadro
513
Anillo en O, carcasa
BUNA-N
Motor
Estándar NEMA, brida 56Y
CUADRO DE APLICACIÓN DEL SELLO
MECÁNICO
