Lista de partes, Cuadro de aplicación del sello mecánico – Xylem IM052 R04 Model MCS User Manual
Page 13
13

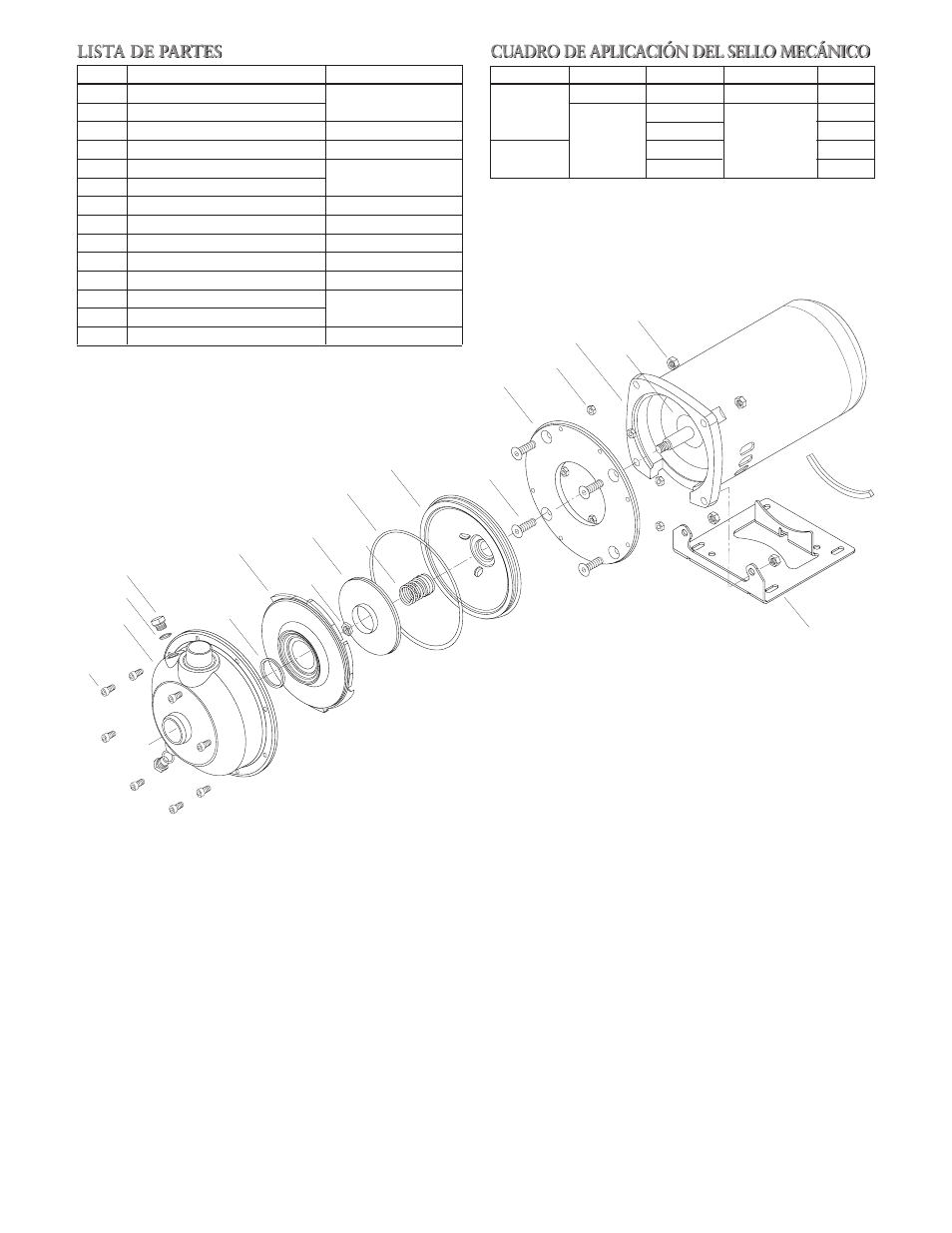

LISTA DE PARTES
Ítem No. Descripción
Material
100 Carcasa
Acero inox. 316L AISI
101 Impulsor
108
Adaptador del motor
Acero
123 Deflector
BUNA-N
184
Cubierta del sello
Acero inox. 316L AISI
347
Aleta guía
349
Anillo de sellado, aleta guía
BUNA-N
370
Tornillos de cabeza hueca, carcasa
Acero inox. 410 AISI
371
Bulones, motor
Acero galvanizado
383
Sello mecánico
Ver cuadro
408
Tapón de drenaje y venteo, carcasa
Acero inox. 316L AISI
412B
Anillo en O, tapón de drenaje y venteo
Vitón (estándar)
513
Anillo en O, carcasa
BUNA / EPR (opcional)
Motor
Estándar NEMA, brida 56Y
CUADRO DE APLICACIÓN DEL SELLO MECÁNICO
Rotativo
Estacionario Elastómeros Partes metálicas Parte No.
Cerámica
BUNA
Acero inox. 18-8
10K10
Carbono
EPR
10K18
Carburo de
Vitón
Acero inox.
10K55
Carburo de
silicio EPR 316 10K81
silicio Vitón 10K62
123
MOTOR
108
371
184
513
383
101
347
349
408
412B
100
370
357
356
304
240
