Xylem IM009 R02 Model 3657/3757 - Manual (Page 7)

7

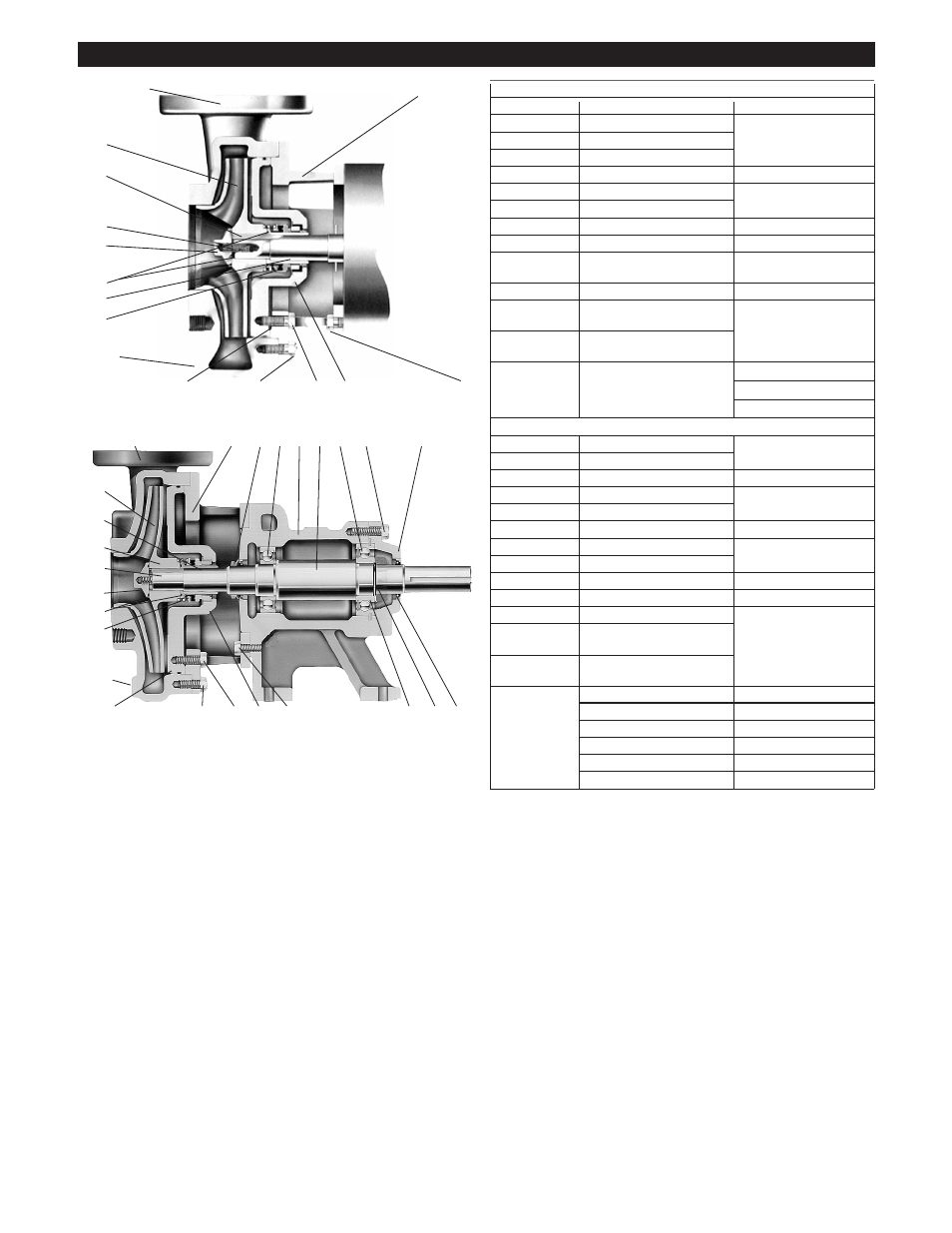

Pump End Components
Item No. Description Material
100* Casing
101* Impeller 316 SS investment cast
184* Seal housing
304* Impeller nut 316 SS
422 Impeller stud Steel
178 Impeller key
126* Shaft sleeve 316 SS
412A O-ring impeller BUNA
408* Pipe plug – 1 ⁄
4
” NPT 316 SS
(casing drain)
513 O-ring casing BUNA
370 Hex head cap screw
(adapter to casing) 304SS
370H Hex head cap screw
(adapter to seal housing)
Carbon/sil car/viton(std.)
383 Mechanical seal Carbon/sil car/EPR (opt.)
Sil car/sil car/viton (opt.)
Power End Components
108 Adapter Cast iron
228 Bearing frame
122 Pump shaft Steel
168 Ball bearing (inboard) Steel
112 Ball bearing (outboard)
123 V-ring deflector BUNA-N
136 Lock nut bearing Steel
382 Lock washer bearing
134 Bearing cover Cast iron
333A Lip seal bearing BUNA/steel
193 Grease fitting
370B Hex head cap screw
(adapter to bearing frame) Steel
370C Hex head cap screw
(bearing frame to cover)
Material Engineering Standard
Cast iron ASTM A48 CL20
Steel ASTM A108/SAE 1200 series
316 SS investment cast ASTM A743 grade CF-8M
316 SS ASTM A276 type 316
304 SS ASTM A276 type304
* Indicates components exposed to pumpage.
Materials of Construction
Materials
Specifications
101
178
422
304
412A
383
408
Optional,
408
Opcional
513 370 370H 184 371
100 108
126
101
126
178
422
304
412A
383
408
Optional,
408
Opcional
513 370 370H 184 370B 382 136 333A
100 108 123 168 228 122 112 370C 134
