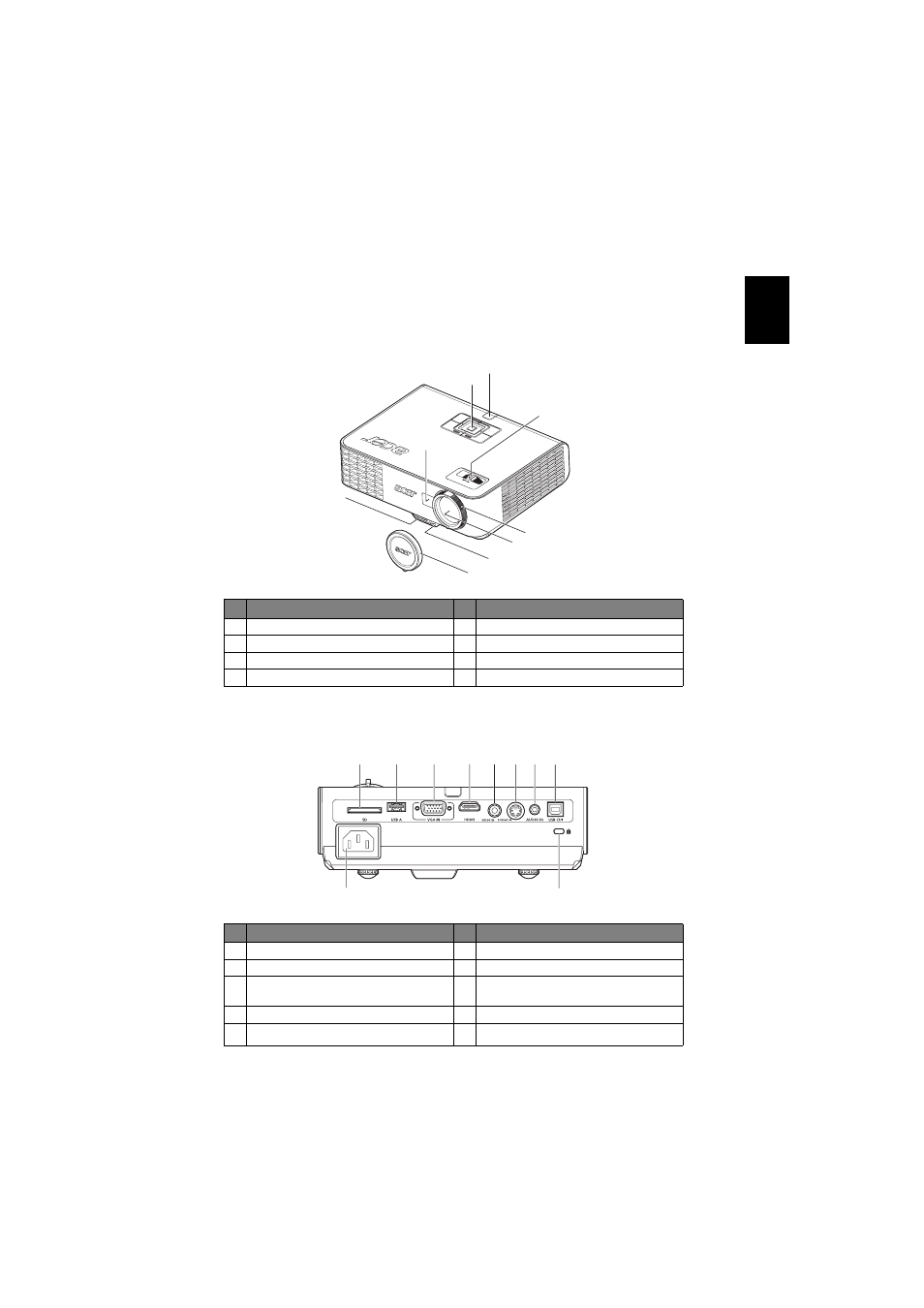

English Projector Overview
Projector Outlook
Front / upper side
Rear side
# Description # Description
1 Zoom Lever 5 Lens cap
2 Focus ring 6 Elevator button
3 Zoom lens 7 Remote control receivers
4 Elevator foot 8 Control panel
# Description # Description
1 SD Card reader 6 S-Video input connector
2 USB A connector 7 Audio input connector
3 PC analog signal/HDTV/component
video input connector
8 USB control connector
4 HDMI connector 9 Power socket
5 Composite video input connector 10 Kensington
TM lock port
