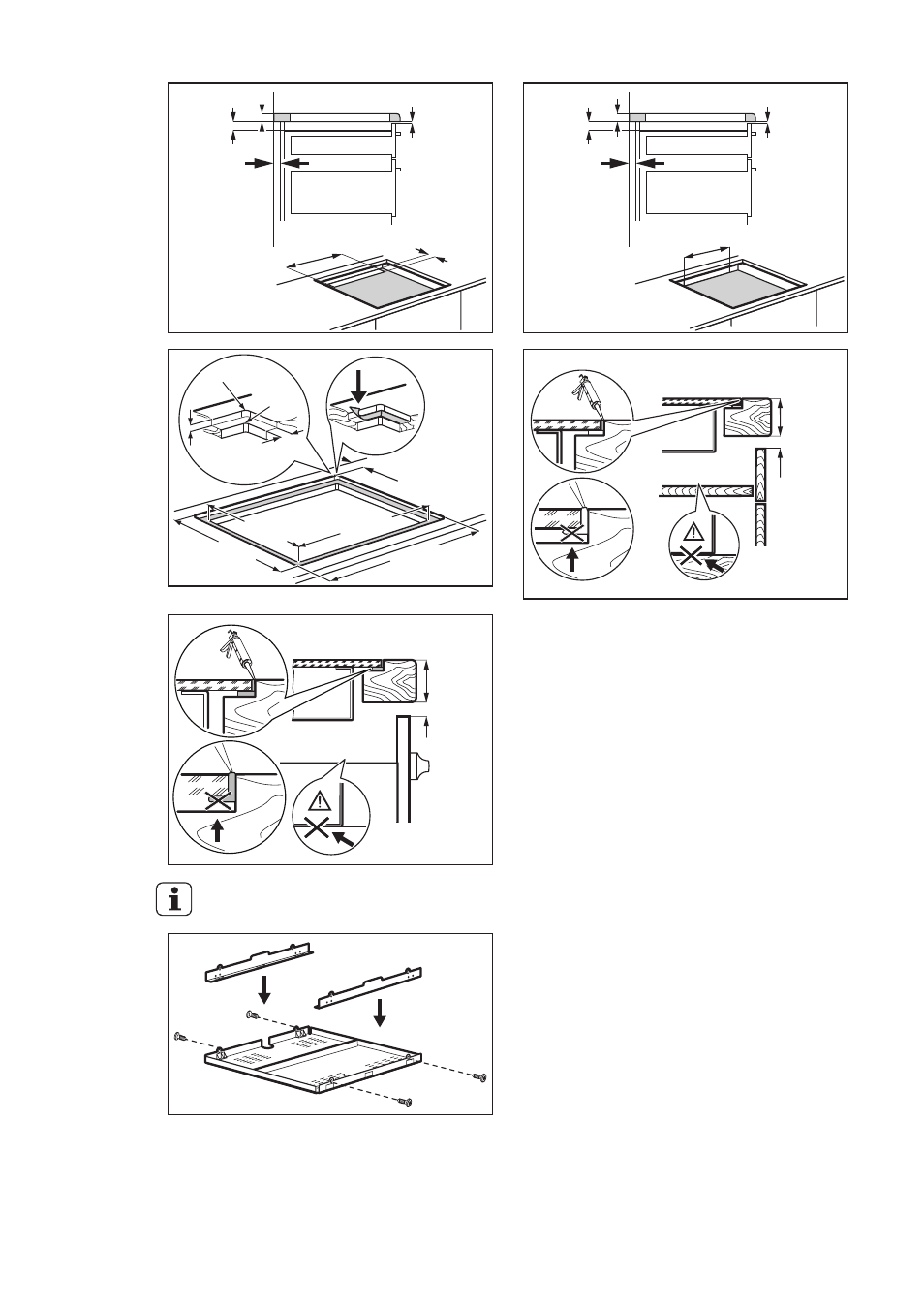

< 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min
30 mm
min. 500 mm
> 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min. 500 mm
774+1mm
514+1mm
490+1mm
min. 55mm
750+1mm
R10mm
R5mm
12mm
7mm
min.
12 mm
min.
2 mm
min.
38 mm
min.
2 mm
If you use a protection box (an additional
accessory
1)
), the front airflow space of 2
mm and protective floor directly below
the appliance are not necessary.
You can not use the protection box if
you install the appliance above an oven.
1) The protection box accessory may not be available in some countries. Please contact
your local supplier.
