153.811UK User Manual

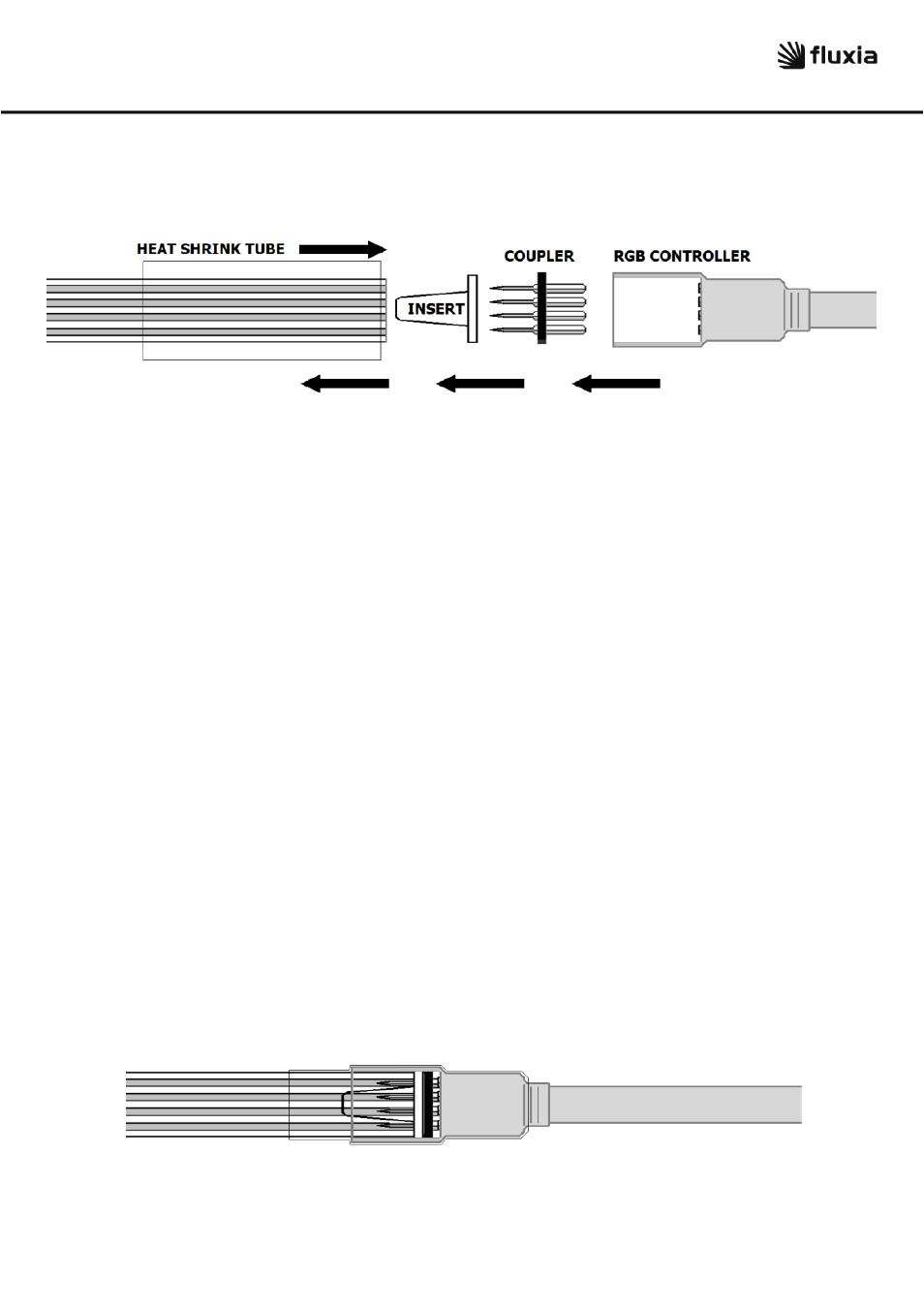

4) The open end of the strip is to be connected to the RGB controller, which is
supplied with an insert for insulating the strip connections from the PCB and
a power coupler. A piece of heat shrink tubing is also provided.
Note: Do not apply glue or heat the sleeving until the connection has been tested
 Slide the supplied heat shrink tubing over and along the LED strip
 Press the tapered blade of the insert into the end of the LED strip, lining
the holes in the end-stop with the internal wires of the strip. The blade
should sit neatly between the internal wires and LED tape within the strip
 Push the sharp pins of the coupler through the insert and into the internal
wires of the strip, taking care not to pierce the insulation
 Match “+” on the 4-pin power connector with “+” on the LED strip
 Push the 4-pin connector of the RGB controller over the rounded pins of
the coupler to complete the connection
5) Check the connections by plugging the RGB controller into the mains. Pull
the tab out of the battery compartment of the remote control and test the
functions. If the strip does not light, unplug from the mains and re-check
connections and polarity from the controller to the strip.
6) If all functions are working properly, apply silicone glue in and around the
joint and allow the glue to set for 10 minutes. Once set, slide the heat shrink
tubing over the joint and heat to seal around the components. The resulting
joint should appear as shown below.
